MAGAZINE REMOVAL (see page 38)
To remove the foil magazine, slide the catch away from the type holder access door, hold in
place and withdraw the magazine using the two handles. If the printer is on-line (Print LED
on) the alarm will sound. Press the PRINT switch to silence this.
FOIL THREADING (refer to diagram below & page 38)
1.
Fit an empty foil core onto the rewind mandrel.
2.
Disengage the pinch drive roller.
3.
Remove label from a new roll of foil.
4.
Fit new roll of foil onto take-off mandrel (note unwind direction as shown on threading
diagram).
5.
Thread foil around all rollers as shown on threading diagram. Note, the gloss side of
the foil should face inwards throughout the foil path.
6.
Attach end of foil to empty core on rewind mandrel, gloss side facing inwards.
7.
Wind foil on a few turn to track and tension it.
8.
Engage pinch drive roller.
RE-FITTING FOIL MAGAZINE
Hold the magazine by the two handles, slide in onto the locating pins and push to lock in
place. Press the PRINT switch on.
FITTING TYPE/DIE HOLDER
NEVER ASSUME THAT A TYPE/DIE HOLDER IS COLD.
Only pick up the type/die holder by its handle. Ensure that the face of the magnetic catch is
clean, open the red type holder access door (the alarm will sound unless the print switch is off),
align the type/die holder within the two side locators and slide in until the magnet catches on
the keep plate. Close the door.
FOIL FEED ADJUSTING SCREW (refer to page 35)
This adjusts the amount of foil used per print. Winding the adjusting screw in in reduces the
foil pull and vice versa. Ensure that the locking nut is fully tightened after adjustment. A gap
of 1 to 2mm is recommended between each portion of used foil.
Eurocode-Digi50 06/08/13
OPERATING INSTRUCTIONS

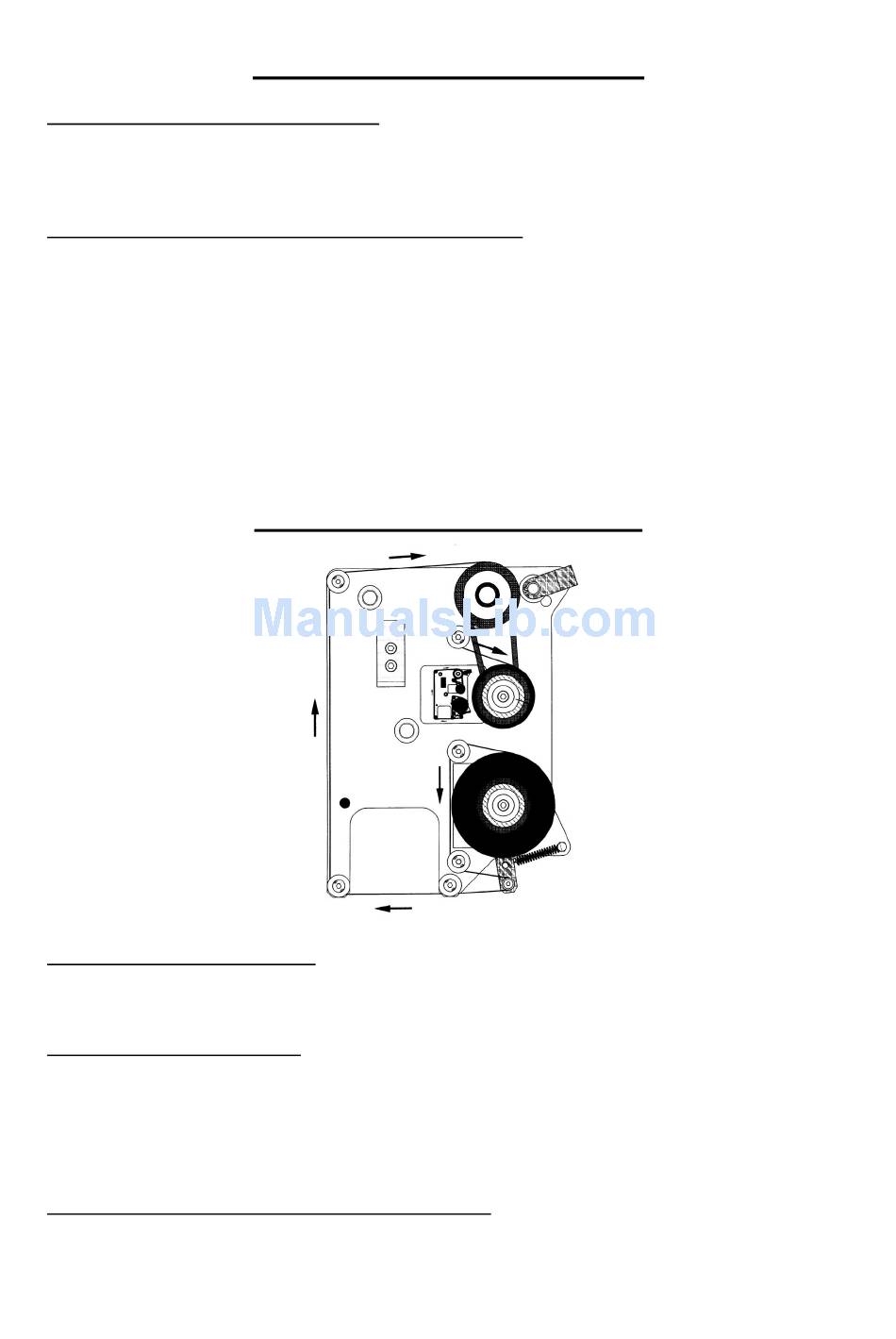

FOIL THREADING DIAGRAM
Page 8
