Open Date EUROCODE 150 Operator Instructions Manual page 22

Eurocode-Digi50 06/08/13

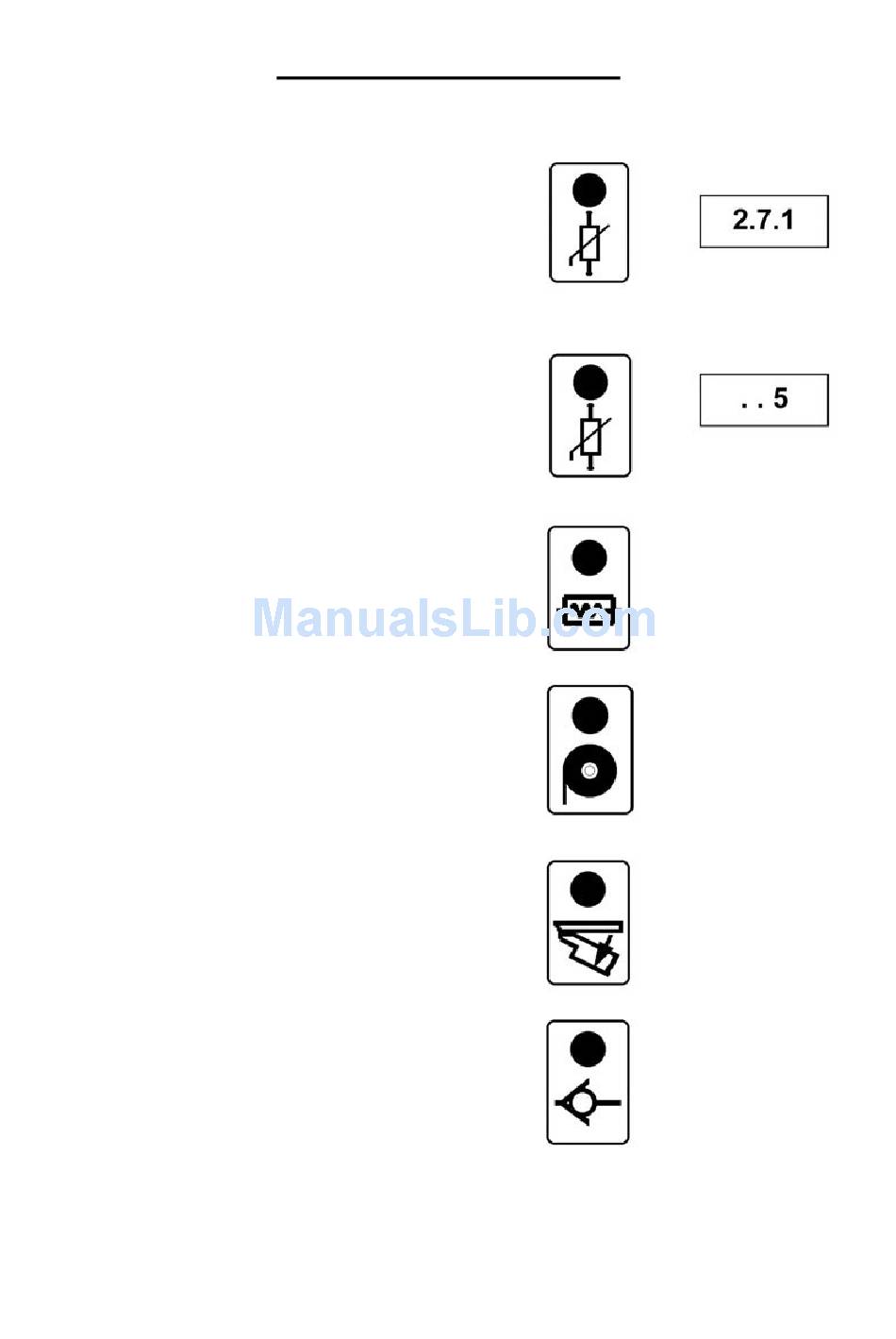

DIGI-50 SYSTEM FAULTS
Thermistor
Thermistor short circuit; the LED is on and digital
display reads similar to, or the same as that shown
(the figures may be different depend upon
calibration values). The heater is switched off.
Internal bleeper is sounding.
Thermistor
Thermistor open circuit, the LED is on and the
display reads similar to or the same as that shown
(the figures may change). The heater is switched
off. Internal bleeper is sounding.
Heater
Heater is open circuit, the LED is on. Internal
bleeper is sounding.
Foil Run Out
At end of foil roll, the LED is on. Internal bleeper is
sounding.
Type Holder Door Opened
Type holder door is open, the LED is on. Print &
Test trigger signals, are disabled. Internal bleeper is
sounding.
Low Air Pressure Switch (If connected)
When air pressure is low, the LED is on. External
Pressure switch required. See separate wiring
detail. (see page 19) Internal Bleeper is sounding.
Set Dip Switch to enable this function (see page
14).
In any of the above fault conditions, the fault relay will be de-energised. See pages 16, 18 & 19
for connection details.
Page 22
