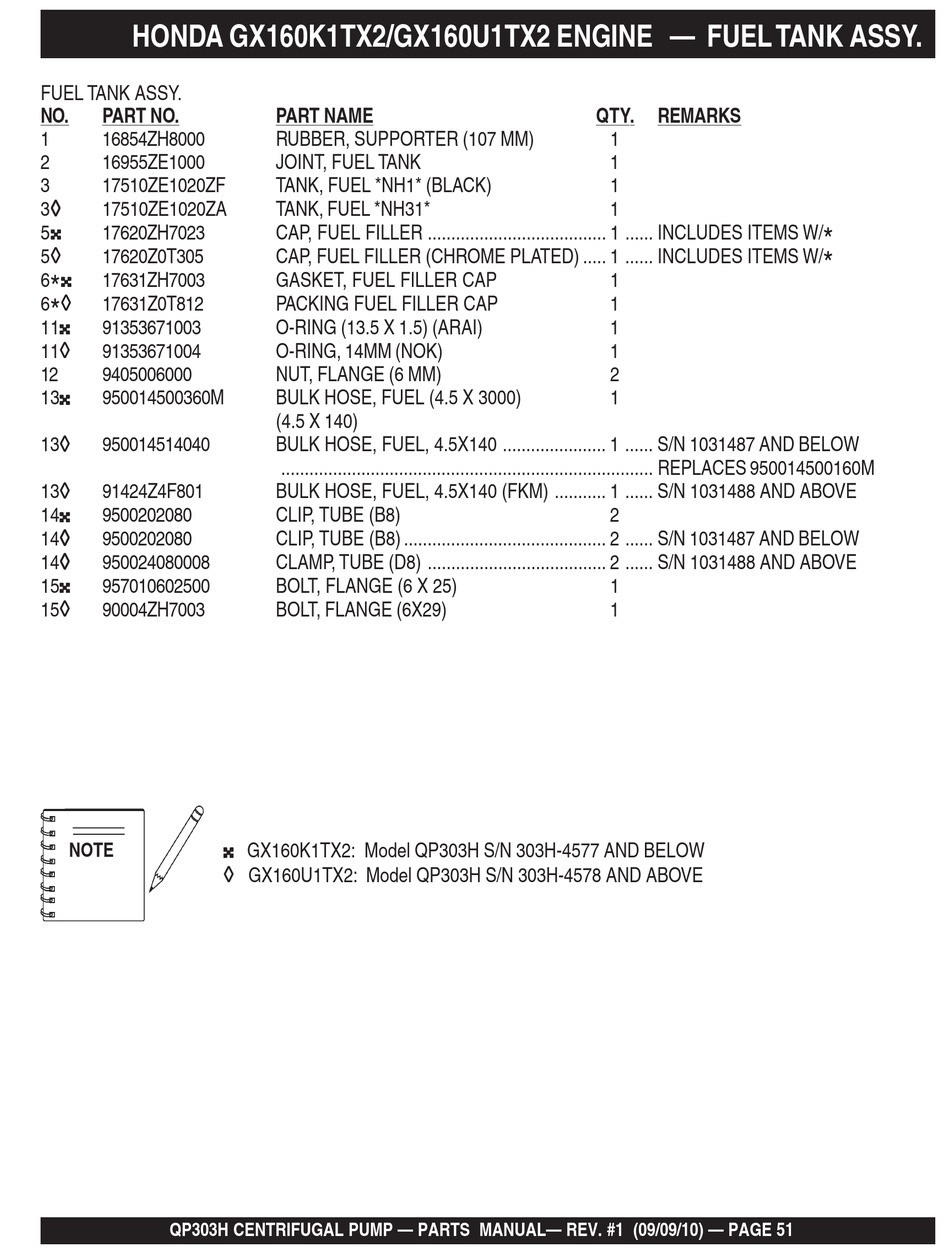

MULTIQUIP QP303H Operation And Parts Manual page 51

HONDA GX160K1TX2/GX160U1TX2 ENGINE — FUEL TANK ASSY.
FUEL TANK ASSY.
NO. PART NO.
1 16854ZH8000
2 16955ZE1000
3 17510ZE1020ZF
3◊ ◊ ◊ ◊ ◊
17510ZE1020ZA
5     17620ZH7023
5◊ ◊ ◊ ◊ ◊
17620Z0T305
6 17631ZH7003
    
*
◊ ◊ ◊ ◊ ◊
6 17631Z0T812
*
11     91353671003
11◊ ◊ ◊ ◊ ◊
91353671004
12 9405006000
13     950014500360M
13◊ ◊ ◊ ◊ ◊
950014514040
13◊ ◊ ◊ ◊ ◊
91424Z4F801
14     9500202080
14◊ ◊ ◊ ◊ ◊
9500202080
14◊ ◊ ◊ ◊ ◊
950024080008
15     957010602500
15◊ ◊ ◊ ◊ ◊
90004ZH7003
NOTE
QP303H CENTRIFUGAL PUMP — PARTS MANUAL— REV. #1 (09/09/10) — PAGE 51
PART NAME
RUBBER, SUPPORTER (107 MM)
JOINT, FUEL TANK
TANK, FUEL *NH1* (BLACK)
TANK, FUEL *NH31*
CAP, FUEL FILLER ...................................... 1 ...... INCLUDES ITEMS W/
CAP, FUEL FILLER (CHROME PLATED) ..... 1 ...... INCLUDES ITEMS W/
GASKET, FUEL FILLER CAP
PACKING FUEL FILLER CAP
O-RING (13.5 X 1.5) (ARAI)
O-RING, 14MM (NOK)
NUT, FLANGE (6 MM)
BULK HOSE, FUEL (4.5 X 3000)
(4.5 X 140)
BULK HOSE, FUEL, 4.5X140 ...................... 1 ...... S/N 1031487 AND BELOW
............................................................................... REPLACES 950014500160M
BULK HOSE, FUEL, 4.5X140 (FKM) ........... 1 ...... S/N 1031488 AND ABOVE
CLIP, TUBE (B8)
CLIP, TUBE (B8) ........................................... 2 ...... S/N 1031487 AND BELOW
CLAMP, TUBE (D8) ...................................... 2 ...... S/N 1031488 AND ABOVE
BOLT, FLANGE (6 X 25)
BOLT, FLANGE (6X29)
     GX160K1TX2: Model QP303H S/N 303H-4577 AND BELOW
◊ ◊ ◊ ◊ ◊ GX160U1TX2: Model QP303H S/N 303H-4578 AND ABOVE
QTY. REMARKS
1
1
1
1
1
1
1
1
2
1
2
1
1
*
*
