MULTIQUIP QP303H Operation And Parts Manual page 45

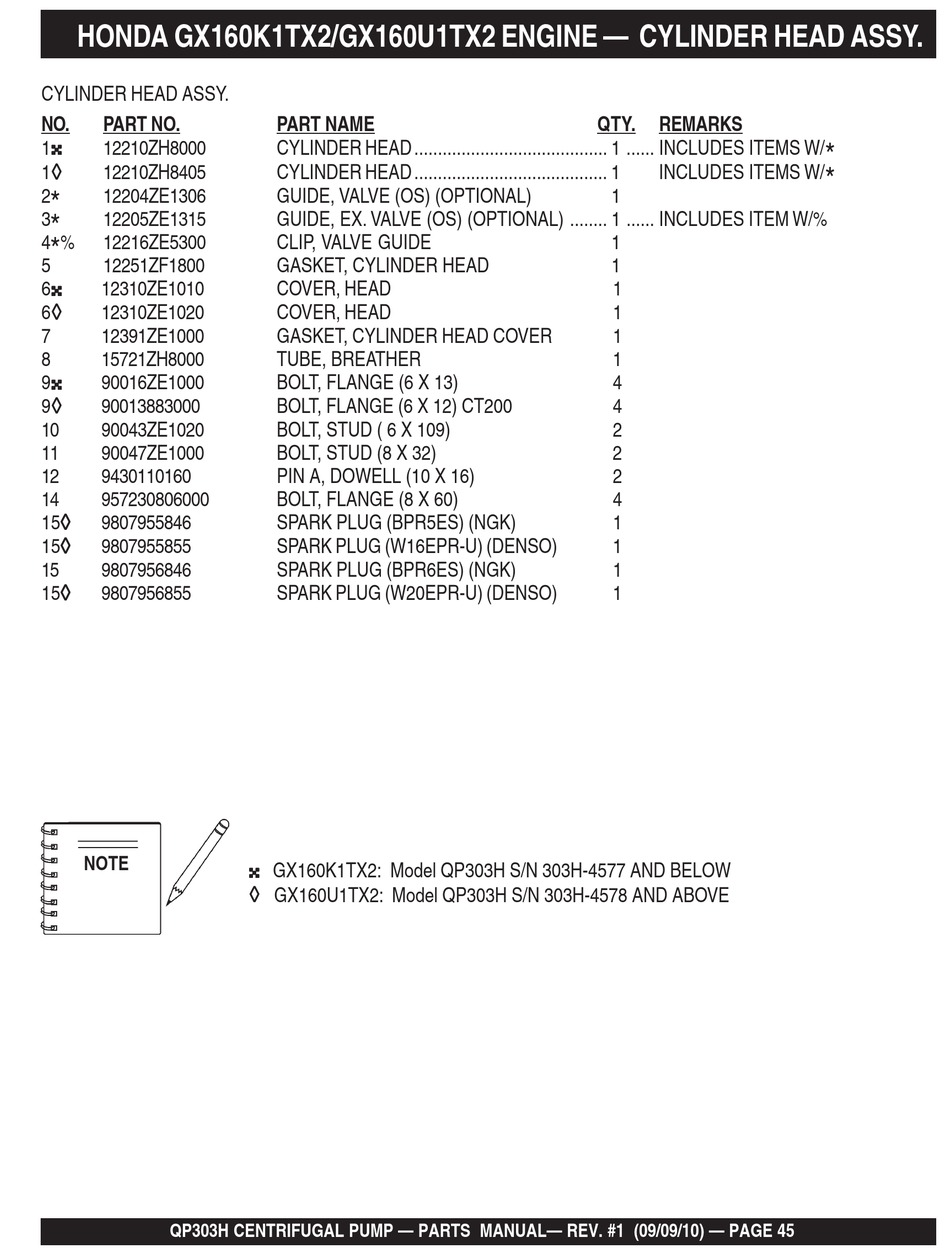

HONDA GX160K1TX2/GX160U1TX2 ENGINE — CYLINDER HEAD ASSY.
CYLINDER HEAD ASSY.
NO. PART NO.
1     12210ZH8000
1◊ ◊ ◊ ◊ ◊
12210ZH8405
2 12204ZE1306
*
3 12205ZE1315
*
4 % 12216ZE5300
*
5 12251ZF1800
6     12310ZE1010
6◊ ◊ ◊ ◊ ◊
12310ZE1020
7 12391ZE1000
8 15721ZH8000
9     90016ZE1000
9◊ ◊ ◊ ◊ ◊
90013883000
10 90043ZE1020
11 90047ZE1000
12 9430110160
14 957230806000
15◊ ◊ ◊ ◊ ◊
9807955846
15◊ ◊ ◊ ◊ ◊
9807955855
15 9807956846
15◊ ◊ ◊ ◊ ◊
9807956855
NOTE
QP303H CENTRIFUGAL PUMP — PARTS MANUAL— REV. #1 (09/09/10) — PAGE 45
PART NAME
CYLINDER HEAD ......................................... 1 ...... INCLUDES ITEMS W/
CYLINDER HEAD ......................................... 1
GUIDE, VALVE (OS) (OPTIONAL)
GUIDE, EX. VALVE (OS) (OPTIONAL) ........ 1 ...... INCLUDES ITEM W/ %
CLIP, VALVE GUIDE
GASKET, CYLINDER HEAD
COVER, HEAD
COVER, HEAD
GASKET, CYLINDER HEAD COVER
TUBE, BREATHER
BOLT, FLANGE (6 X 13)
BOLT, FLANGE (6 X 12) CT200
BOLT, STUD ( 6 X 109)
BOLT, STUD (8 X 32)
PIN A, DOWELL (10 X 16)
BOLT, FLANGE (8 X 60)
SPARK PLUG (BPR5ES) (NGK)
SPARK PLUG (W16EPR-U) (DENSO)
SPARK PLUG (BPR6ES) (NGK)
SPARK PLUG (W20EPR-U) (DENSO)
     GX160K1TX2: Model QP303H S/N 303H-4577 AND BELOW
◊ ◊ ◊ ◊ ◊ GX160U1TX2: Model QP303H S/N 303H-4578 AND ABOVE
QTY. REMARKS
INCLUDES ITEMS W/
1
1
1
1
1
1
1
4
4
2
2
2
4
1
1
1
1
*
*
