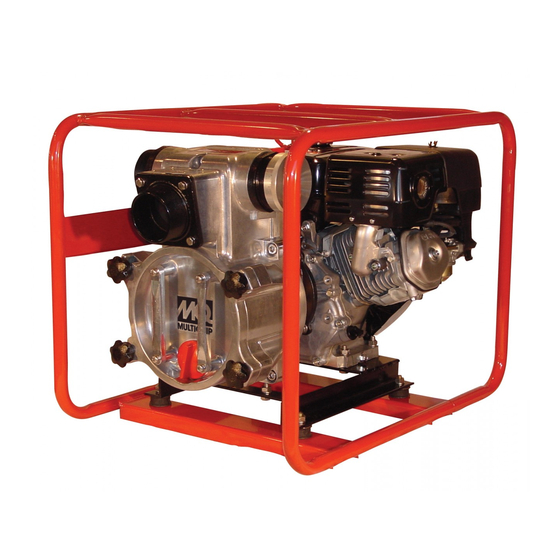

MULTIQUIP QP3TH Operation And Parts Manual

Trash pump, honda gx240k1qa2/gx240u1qa2/gx240ut2qa2 gasoline engine
Hide thumbs Also See for QP3TH:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION AND PARTS MANUAL
MODEL QP3TH
TRASH PUMP
(HONDA GX240K1QA2/GX240U1QA2/GX240UT2QA2
GASOLINE ENGINE)
Revision #9 (02/20/18)
To find the latest revision of this
publication, visit our website at:
www.multiquip.com
THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QP3TH and is the answer not in the manual?

Questions and answers

Related Manuals for MULTIQUIP QP3TH

Summary of Contents for MULTIQUIP QP3TH

  • Page 1 OPERATION AND PARTS MANUAL MODEL QP3TH TRASH PUMP (HONDA GX240K1QA2/GX240U1QA2/GX240UT2QA2 GASOLINE ENGINE) Revision #9 (02/20/18) To find the latest revision of this publication, visit our website at: www.multiquip.com THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.

  • Page 2: Proposition 65 Warning

    PROPOSITION 65 WARNING PAGE 2 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 3 NOTES QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 3...

  • Page 4: Table Of Contents

    Engine Service Parts ........36-37 Terms And Conditions Of Sale — Parts ....38 NOTICE Specifications and part numbers are subject to change without notice. PAGE 4 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 5: Parts Ordering Procedures

    All orders are treated as Standard Orders and will ship the same day if received prior to 3PM PST. WE ACCEPT ALL MAJOR CREDIT CARDS! QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 5...

  • Page 6: Safety Information

    COULD result in DEATH or SERIOUS INJURY. CAUTION Indicates a hazardous situation which, if not avoided, COULD result in MINOR or MODERATE INJURY. NOTICE Addresses practices not related to personal injury. PAGE 6 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 7 Also, know the phone numbers of the nearest ambulance, doctor and fi re department. This information will be invaluable in the case of an emergency. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 7...
  • Page 8 „ ALWAYS store equipment properly when it is not being used. Equipment should be stored in a clean, dry location out of the reach of children and unauthorized personnel. PAGE 8 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 9 „ ALWAYS keep battery cables in good working condition. from fuel vapors or if fuel is spilled on a Repair or replace all worn cables. hot engine. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 9...
  • Page 10 „ Use one point suspension hook and lift straight upwards. „ DO NOT lift machine to unnecessary heights. „ ALWAYS tie down equipment during transport by securing the equipment with rope. PAGE 10 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 11: Specifications (Pump)

    41 psi (283 kPa) Dry Net Weight 142 lbs. (64.5 Kg.) 20.6 IN. (522 MM) 22.0 IN. (559 MM) 27.9 IN. (708 MM) Figure 1. QP3TH Dimensions QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 11...

  • Page 12: Specifications (Engine)

    55.1 lbs (25 Kg.) Engine power ratings are calculated by the individual engine manufacturer and the rating method may vary among engine manufacturers. Multiquip Inc. and its subsidiary companies makes no claim, representation or warranty as to the power rating of the engine on this equipment and disclaims any responsibility or liability of any kind whatsoever with respect to the accuracy of the engine power rating.

  • Page 13: General Information

    6,000 (1,829) line as short as possible. In general always place the pump as close to the water as possible. 8,000 (2,438) 10,000 (3,048) PUMP SUPPORT QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 13...

  • Page 14: Pump Components

    PUMP COMPONENTS Figure 3. QP3TH Key Components PAGE 14 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 15 (Cam & Groove lock) can damage pump. hose. For quick disconnect connections, an optional coupler (A300A) is necessary. Contact MQ Parts Department for ordering assistance. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 15...

  • Page 16: Basic Engine

    5. Fuel Valve Lever — OPEN to let fuel flow, CLOSE to stop the flow of fuel. PAGE 16 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 17: Inspection (Engine)

    Figure 5. Engine Oil Dipstick (Removal 3. When refueling, be sure to use a strainer for filtration. DO NOT top-off fuel. Wipe up any spilled fuel immediately! QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 17...

  • Page 18: Setup

    Figure 7. Pump Placement PAGE 18 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 19: Operation

    OPEN position (Figure 14) as the engine warms up. If the engine has Figure 10. Engine Choke Lever (Closed) not started repeat steps 1 through 6. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 19...
  • Page 20 1. Move the throttle lever quickly to the IDLE position, and ALWAYS run engine at full speed while pumping. place the engine ON/OFF switch in the OFF position. PAGE 20 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 21: Maintenance (Pump)

    This prevents backflow and allows for faster priming when the engine is restarted. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 21...
  • Page 22 MAINTENANCE (PUMP) Figure 19. Pump Vacuum Tester PAGE 22 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 23: Maintenance (Engine)

    Refer to the HONDA shop Manual for service procedures. 3. For commercial use, log hours of operation to determine proper maintenance intervals. NOTICE Refer to manufacturer engine manual for specific servicing instructions. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 23...
  • Page 24 4. Install drain bolt with sealing washer and tighten securely. GASKET OIL FILLER DIPSTICK Figure 22. Engine Air Cleaner DRAIN SEALING BOLT WASHER Figure 21. Engine Oil (Draining) PAGE 24 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 25 6. Reinstall the spark arrester and muffler protector in reverse order of disassembly. MUFFLER 5 MM SCREW SPARK ARRESTER Figure 23. Spark Arrester Removal QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 25...

  • Page 26: Storage

    (new or used) through the discharge opening on the pump and crank the engine several times. This will prevent excessive corrosion and also keep the mechanical seal lubricated. PAGE 26 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 27: Troubleshooting (Engine)

    Engine overheats. Exhaust or muffler clogged with carbon. Clean or replace muffler. Replace spark plug with correct Spark plug heat value incorrect? type spark plug. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 27...

  • Page 28: Troubleshooting (Engine/Pump)

    Impeller does not turn: Adjust clearance by removing shim from Impeller and volute binding? pump is hard to start. behind impeller. Defective engine? See Engine Owner's Manual. PAGE 28 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 29 NOTES QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 29...

  • Page 30: Explanation Of Code In Remarks Column

    “Remarks” Column. assembly/kit that can be purchased, or is not available for sale through Multiquip. PAGE 30 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)

  • Page 31: Suggested Spare Parts

    1....17620Z4M000 ....CAP, WITH GASKET, FUEL FILLER, GX240UT2QA2 NOTICE Part numbers on this Suggested Spare Parts list may supersede/replace the part numbers shown in the following parts lists. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 31...

  • Page 32: Pump Assembly

    PUMP ASSEMBLY PAGE 32 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 33 Replacement of impeller requires two o-rings, so it is necessary to order one additional o-ring. QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 33...
  • Page 34 PUMP ASSEMBLY PAGE 34 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 35 ENGINE, HONDA 7.1 HP ........1....S/N 3TH-4854 TO 3TH-20727 GX240UT2QA2 ENGINE, HONDA 7.1 HP ........1....S/N 3TH-20728 AND ABOVE KIT3TE KIT MECHANICAL SEAL, SLEEVE, & O-RINGS ..1....INCLUDES ITEMS W/@ QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 35...

  • Page 36: Engine Service Parts

    ENGINE SERVICE PARTS PAGE 36 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 37 ROPE, RECOIL STARTER ........1....GX240K1QA2/GX240U1QA2 17210ZE2515 ELEMENT, AIR CLEANER ........1....GX240K1QA2/GX240U1QA2 INCLUDES ITEM W/ # 17210ZE1517 ELEMENT, AIR CLEANER ........1....GX240UT2QA2 INCLUDES ITEM W/ # 17218ZE2505 FILTER, OUTER 9807956846 SPARK PLUG QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 37...

  • Page 38: Terms And Conditions Of Sale - Parts

    Multiquip’s designated receiving point. PAGE 38 — QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18)
  • Page 39 NOTES QP3TH TRASH PUMP • OPERATION AND PARTS MANUAL — REV. #9 (02/20/18) — PAGE 39...
  • Page 40 © COPYRIGHT 2018, MULTIQUIP INC. Multiquip Inc , the MQ logo are registered trademarks of Multiquip Inc. and may not be used, reproduced, or altered without written permission. All other trademarks are the property of their respective owners and used with permission.
