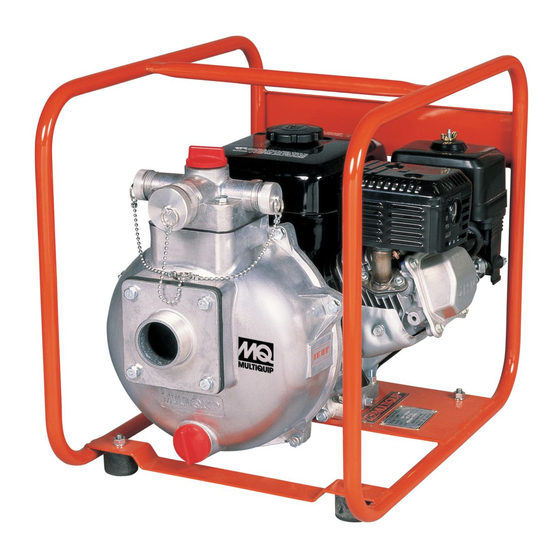

High pressure centrifugal pump, (gasoline engine)
Hide thumbs Also See for QP-305SLT:
Table of Contents

Advertisement

Quick Links

Download this manual
OPERATION AND PARTS MANUAL
MODEL QP-305SLT
HIGH PRESSURE
CENTRIFUGAL PUMP
(Gasoline Engine)
Revision #0 (03/22/05)
THIS MANUAL MUST ACCOMPANY
THE EQUIPMENT AT ALL TIMES.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the QP-305SLT and is the answer not in the manual?

Questions and answers

Related Manuals for MULTIQUIP QP-305SLT

Summary of Contents for MULTIQUIP QP-305SLT

  • Page 1 OPERATION AND PARTS MANUAL MODEL QP-305SLT HIGH PRESSURE CENTRIFUGAL PUMP (Gasoline Engine) Revision #0 (03/22/05) THIS MANUAL MUST ACCOMPANY THE EQUIPMENT AT ALL TIMES.
  • Page 2 PAGE 2 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 3 MQ QP-305SLT High Prtessure Centrifugal Pump. Illustrations, descriptions, references and technical data contained in this manual are for guidance only and may not be considered as binding. Multiquip Inc. reserves the right to discontinue or change specifications, design or the information published in this publication at any time without notice and without incurring any obligations.

  • Page 4: Table Of Contents

    Explanation Of Code In Remarks Column ....28 Suggested Spare Parts ..........29 Pump Assy............30-31 Specification and part number NOTE are subject to change without notice PAGE 4 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 5: Here's How To Get Help

    Parts Department: POST OFFICE BOX 6254 CARSON, CALIFORNIA 90749 310-537-3700 • 800-421-1244 Toll-free nationwide — 800-427-1244 FAX: 310-537-3927 Toll-free FAX — 800-6-PARTS-7 E-MAIL: mq@multiquip.com (800/672-7877) INTERNET: www.multiquip.com QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 5...

  • Page 6: Safety Message Alert Symbols

    Potential hazards associated with the QP-305SLT Centrifugal Pump operation will be referenced with Hazard Symbols which appear throughout this manual, and will be referenced in conjunction with Safety Message Alert Symbols. PAGE 6 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 7 ALWAYS wear approved eye and hearing protection. This pump, other property, or NOTE the surrounding environment could be damaged if you do not follow instructions. QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 7...

  • Page 8: Rules For Safe Operation

    Multiquip for this equipment. Damage to the equipment and/or injury to user may result. ■ Manufacturer does not assume responsibility for any accident due to equipment modifications. PAGE 8 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 9: Maintenance Safety

    Failure to maintain water inside the pump housing will cause severe damage to the pump. ■ In winter drain water from pump housing to prevent freezing. QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 9...
  • Page 10 . t f . 7 ( ) s r . t f ) s r . n i ) . g Figure 1. QP-305SLT Dimensions PAGE 10 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 11 - y l i t r l i o t r a i s n . n i s b l ) . g QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 11...

  • Page 12: General Information

    A small suction leak in the hose or fittings could prevent the pump , 3 ( from priming. PAGE 12 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 13: Pump Components

    QP-305SLT — PUMP COMPONENTS Figure 2 shows a typical application using the QP-305SLT centrifugal pump. Please note that this pump is intended for the removal of clean water and water containing some debris and solids. Maximum size of solids should not exceed 1 inch (25 mm) in diameter.

  • Page 14: Basic Engine

    10. Fuel Tank – Holds unleaded gasoline. For additional Fuel Valve Lever – OPEN to let fuel flow, CLOSE to stop information refer to engine owner's manual. the flow of fuel. PAGE 14 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 15: Pre-Inspection (Engine)

    3. When refueling, be sure to use a strainer for filtration. DO NOT top-off fuel. Wipe up any spilled fuel immediately! Figure 4. Engine Oil Dipstick (Removal) QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 15...

  • Page 16: Pre-Set-Up (Pump)

    Place hose so that it lays as straight as it is possible on the ground. Remove any twists or sharp bends from hose which may block the flow of water. PAGE 16 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 17: Initial Start-Up (Engine)

    5. Place the engine ON/OFF switch (Figure 10) in the " ON " position. Figure 7. Throttle Lever (1/3 Start Position) Figure 10. Engine ON/OFF Switch (ON Position) QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 17...
  • Page 18 1. Move the throttle lever quickly to the IDLE position, and place the engine ON/OFF switch in the OFF position. Figure 13. Throttle Lever (Run) PAGE 18 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 19 NOTE PAGE QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 19...
  • Page 20 This prevents backflow and allows for faster priming when the engine is restarted. PAGE 20 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 21 QP-305SLT — MAINTENANCE (PUMP) Pressure reading may vary depending on altitude. See Tables 3 NOTE and 4 on page 12. Figure 17. Pump Vacuum Tester QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 21...
  • Page 22 . s l Reference manufacturer engine NOTE manual for specific servicing instructions. PAGE 22 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 23: Maintenance (Pump)

    Table 5. Engine oil capacity is 1.16 quarts (1.1 liters). DO NOT overfill. 4. Install drain bolt with sealing washer and tighten se- curely. Figure 20. Engine Air Cleaner Figure 19. Engine Oil (Draining) QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 23...

  • Page 24: Preparation For Long-Term Storage

    (new or used) through the discharge opening on the pump and crank the engine several times. This will prevent excessive corrosion and also keep the mechanical seal lubricated. PAGE 24 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 25 NOTE PAGE QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 25...
  • Page 26 . r e l a v c n i r r o h t i e r r PAGE 26 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 27 . t r e l l l l e . r e e v i s ' r . l a QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 27...

  • Page 28: Explanation Of Code In Remarks Column

    (or latest) part available. If more than one of the same reference number is listed, the NOTE last one listed indicates newest (or latest) part avaliable. PAGE 28 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 29: Suggested Spare Parts

    2 ..1814209660ASSY .. BALL CHAIN, W/ CAPS Part numbers on this Suggested Spare Parts List may supersede/ NOTE replace the P/N shown in the text pages of this book. QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 29...

  • Page 30: Pump Assy

    QP-305SLT — PUMP ASSY. PUMP ASSY. PAGE 30 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 31 O’RING (CASING) DIA.3.5 X 255 0723302040 CUSHION RUBBER 0510040443 KEY 1/4” X 1/4” X 43 1814100090 DELIVERY COVER (3-WAY OUTLET) 0482200750 O-RING (VOLUTE CASING) 0458220080 SEAL WASHER 1803521220 LINER RING QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 31...
  • Page 32 QP-305SLT — PUMP ASSY. PAGE 32 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 33 BOLT 19882140210014 ENGINE BASE 0852834230 ADJUST LINER 0852854230 ADJUST LINER 0920313014 NYLON NET KIT305 KIT, MECHANICAL SEAL, SLEEVE, O-RINGS ..1 ..... INLCUDES ITEMS W/ GX340K1PKT2 ENGINE QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 33...

  • Page 34: Honda Gx340K1Pkt2 Engine

    HONDA GX340K1PKT2 ENGINE — AIR CLEANER ASSY. AIR CLEANER ASSY. PAGE 34 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 35 COLLAR B, AIR CLEANER 17410ZH9N00 ELBOW, AIR CLEANER ....... 1 ... INCLUDES ITEMS W/ # 90325044000 WINGNUT, TOOL BOX SETTING 934040602008 BOLT- WASHER, 6X20 9405006000 NUT, FLANGE (6MM) QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 35...

  • Page 36: Camshaft Assy

    HONDA GX340K1PKT2 ENGINE — CAMSHAFT ASSY. CAMSHAFT ASSY. PAGE 36 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 37: Camshaft Assy

    RETAINER, IN. VALVE SPRING 14773ZE2000 RETAINER, EX. VALVE SPRING 14775ZE2010 SEAT, VALVE SPRING 14781ZE2000 ROTATOR, VALVE 14791ZE2010 PLATE, PUSH ROD GUIDE 90012ZE0010 BOLT, PIVOT (8MM) 90206ZE1000 NUT, PIVOT ADJ. QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 37...

  • Page 38: Carburetor Assy

    HONDA GX340K1PKT2 ENGINE — CARBURETOR ASSY. CARBURETOR ASSY. PAGE 38 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 39 93500030080G SCREW, PAN(3X8) 9430520122 PIN, SPRING (2X12) 99101ZH80880 JET, MAIN #88 (OPTIONAL) 99101ZH80900 JET, MAIN #90 (OPTIONAL) 99101ZH80920 JET, MAIN #92 99204ZE00350 JET SET, PILOT #35 QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 39...

  • Page 40: Control Assy

    HONDA GX340K1PKT2 ENGINE — CONTROL ASSY. CONTROL ASSY. PAGE 40 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 41: Control Assy

    16584883300 SPRING, CONTROL ADJUSTING 90013883000 BOLT, FLANGE 6X12 (CT200) 90015ZE5010 BOLT, GOVERNOR ARM 90114SA0000 NUT, SELF- LOCK 6MM 93500050320A SCREW, PAN 5X32 9405006000 NUT, FLANGE 6MM QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 41...

  • Page 42: Crankcase Cover Assy

    HONDA GX340K1PKT2 ENGINE — CRANKCASE COVER ASSY. CRANKCASE COVER ASSY. PAGE 42 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 43 PIN, DOWEL 8X12 91201ZE3004 OIL SEAL 35X52X8 18#$ 9410106800 WASHER, PLAIN 6MM 957010804000 BOLT, FLANGE 8X40 961006202000 BEARING, RADIAL BALL 6202 961006207000 BEARING, RADIAL BALL 6207 QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 43...

  • Page 44: Crankshaft Assy

    HONDA GX340K1PKT2 ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PAGE 44 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 45 HONDA GX340K1PKT2 ENGINE — CRANKSHAFT ASSY. CRANKSHAFT ASSY. PART NO. PART NAME QTY. REMARKS 13310ZE3651 CRANKSHAFT P-TYPE 13351ZE3010 WEIGHT, BALANCER 961006207000 BEARING, RADIAL BALL 6207 QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 45...

  • Page 46: Cylinder Barrel Assy

    HONDA GX340K1PKT2 ENGINE — CYLINDER BARREL ASSY. CYLINDER BARREL ASSY. PAGE 46 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 47 WASHER, DRAIN PLUG 12MM 9425110000 PIN, LOCK 10MM 957010601200 BOLT, FLANGE 6X12 961006202000 BEARING, RADIAL BALL 6202 90013883000 BOLT, FLANGE 6X12 (CT200) 34150ZH7003 ALERT UNIT, OIL QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 47...
  • Page 48 HONDA GX340K1PKT2 ENGINE — CYLINDER HEAD ASSY. CYLINDER HEAD ASSY. PAGE 48 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 49: Cylinder Head

    BOLT, FLANGE 10X80 9807955846 SPARK PLUG, BPR5ES (NGK), OPT. 9807955855 SPARK PLUG , W16EPR- U (DENSO), OPTIONAL 9807956846 SPARK PLUG, BPR6ES (NGK) 9807956855 SPARK PLUG, W20EPR- U (DENSO) QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 49...

  • Page 50: Fan Cover Assy

    HONDA GX340K1PKT2 ENGINE — FAN COVER ASSY. FAN COVER ASSY. PAGE 50 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 51: Fan Cover Assy

    REMARKS 16731ZE2003 CLIP, TUBE 19610ZE3010ZA COVER, FAN *R8* (BRIGHT RED) 19631ZE3W00 SHROUD 36100ZH7003 SWITCH ASSEMBLY, ENGINE STOP 90013883000 BOLT, FLANGE 6X12 (CT200) 90684ZA0601 CLIP, WIRE HARNESS QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 51...

  • Page 52: Flywheel Assy

    HONDA GX340K1PKT2 ENGINE — FLYWHEEL ASSY. FLYWHEEL ASSY. PAGE 52 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 53: Flywheel Assy

    FLYWHEEL ASSY. PART NO. PART NAME QTY. REMARKS 19511ZE3000 FAN, COOLING 28451ZE3W01 PULLEY, STARTER 31100ZE3701 FLYWHEEL 90201ZE3V00 NUT, SPECIAL 16MM (1) 90741ZE2000 KEY, SPECIAL WOODRUFF 25X18 QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 53...

  • Page 54: Fuel Tank Assy

    HONDA GX340K1PKT2 ENGINE — FUEL TANK ASSY. FUEL TANK ASSY. PAGE 54 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 55: Fuel Tank Assy

    17672ZE2W01 FILTER, FUEL 91353671003 O- RING 13.5X1.5 (ARA) 9405008000 NUT, FLANGE 8MM 950014500360M BULK HOSE, FUEL (4.5X3000) (4.5X235) 9500202080 CLIP, TUBE B8 957010802500 BOLT, FLANGE 8X25 QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 55...

  • Page 56: Ignition Coil Assy

    HONDA GX340K1PKT2 ENGINE — IGNITION COIL ASSY. IGNITION COIL ASSY. PAGE 56 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 57 PART NO. PART NAME QTY. REMARKS 30500ZE2023 COIL ASSEMBLY, IGNITION 30700ZE1013 CAP ASSEMBLY, NOISE SUPPRESSOR 31512ZE2000 GROMMET, WIRE 36101ZE2701 WIRE, STOP SWITCH 430MM 90015883000 BOLT, FLANGE 6X28 QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 57...

  • Page 58: Muffler Assy

    HONDA GX340K1PKT2 ENGINE — MUFFLER ASSY. MUFFLER ASSY. PAGE 58 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 59: Muffler Assy

    PROTECTOR, R. MUFFLER 18325ZE3G10 PROTECTOR, L. MUFFLER 18330ZE2000 PIPE, EX. 18336ZE3000 FLANGE, BAFFLE 18381ZE2800 GASKET, MUFFLER 90050ZE1000 SCREW, TAPPING 5X8 9405008000 NUT, FLANGE 8MM 18333ZE3800 GASKET, EX. PIPE QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 59...

  • Page 60: Piston Assy

    HONDA GX340K1PKT2 ENGINE — PISTON ASSY. PISTON ASSY. PAGE 60 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)

  • Page 61: Piston Assy

    ROD ASSEMBLY, CONNECTING (STD.) ..... 1 ..INCLUDES ITEM W/ 13200ZE3315 ROD ASSEMBLY, CONNECTING- US 0.25 (OPT.) ..1 ..INCLUDES ITEM W/ 90001ZE8000 BOLT, CONNECTING ROD 90601ZE3000 CLIP, PISTON PIN 20MM QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 61...

  • Page 62: Recoil Starter Assy

    HONDA GX340K1PKT2 ENGINE — RECOIL STARTER ASSY. RECOIL STARTER ASSY. PAGE 62 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 63 SPRING, STARTER RETURN 28443ZE2W01 SPRING, RATCHET 28444ZE2W01 RETAINER, SPRING 28445ZE2W01 HOLDER, SPRING 28461ZE2W02 GRIP, STARTER 28462ZE3W01 ROPE, RECOIL STARTER 90004ZE2W01 SCREW, CENTER 957010600800 BOLT, FLANGE 6X8 QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 63...

  • Page 64: Labels Assy

    HONDA GX340K1PKT2 ENGINE — LABELS ASSY. LABELS ASSY. PAGE 64 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 65 HONDA GX340K1PKT2 ENGINE — LABELS ASSY. LABELS ASSY. PART NO. PART NAME QTY. REMARKS 87521ZE3W01 EMBLEM 87528ZE2810 MARK, CHOKE (EXTERNAL) 87532ZH8810 MARK, OIL ALERT (E) 89218ZE1000 WRENCH, SPARK PLUG QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 65...

  • Page 66: Terms And Condition Of Sale — Parts

    Multiquip’s designated receiving point. at the time of any price change. PAGE 66 — QP-305SLT CENTRIFUGAL PUMP — OPERATION & PARTS MANUAL — REV. #0 (03/22/05)
  • Page 67 NOTE PAGE QP-305SLT TRASH PUMP — OPERATION & PARTS MANUAL— REV. 0 (03/22/05) — PAGE 67...

  • Page 68: Parts

    OPERATION AND PARTS MANUAL HERE'S HOW TO GET HELP PLEASE HAVE THE MODEL AND SERIAL NUMBER ON-HAND WHEN CALLING MULTIQUIP CORPORATE OFFICE 18910 Wilmington Ave. 800-421-1244 FAX: 310-537-3927 Carson, CA 90746 Email: mq@multiquip.com Internet: www.multiquip.com PARTS DEPARTMENT 800-427-1244 FAX: 800-672-7877...
