MULTIQUIP QP303H Operation And Parts Manual page 43

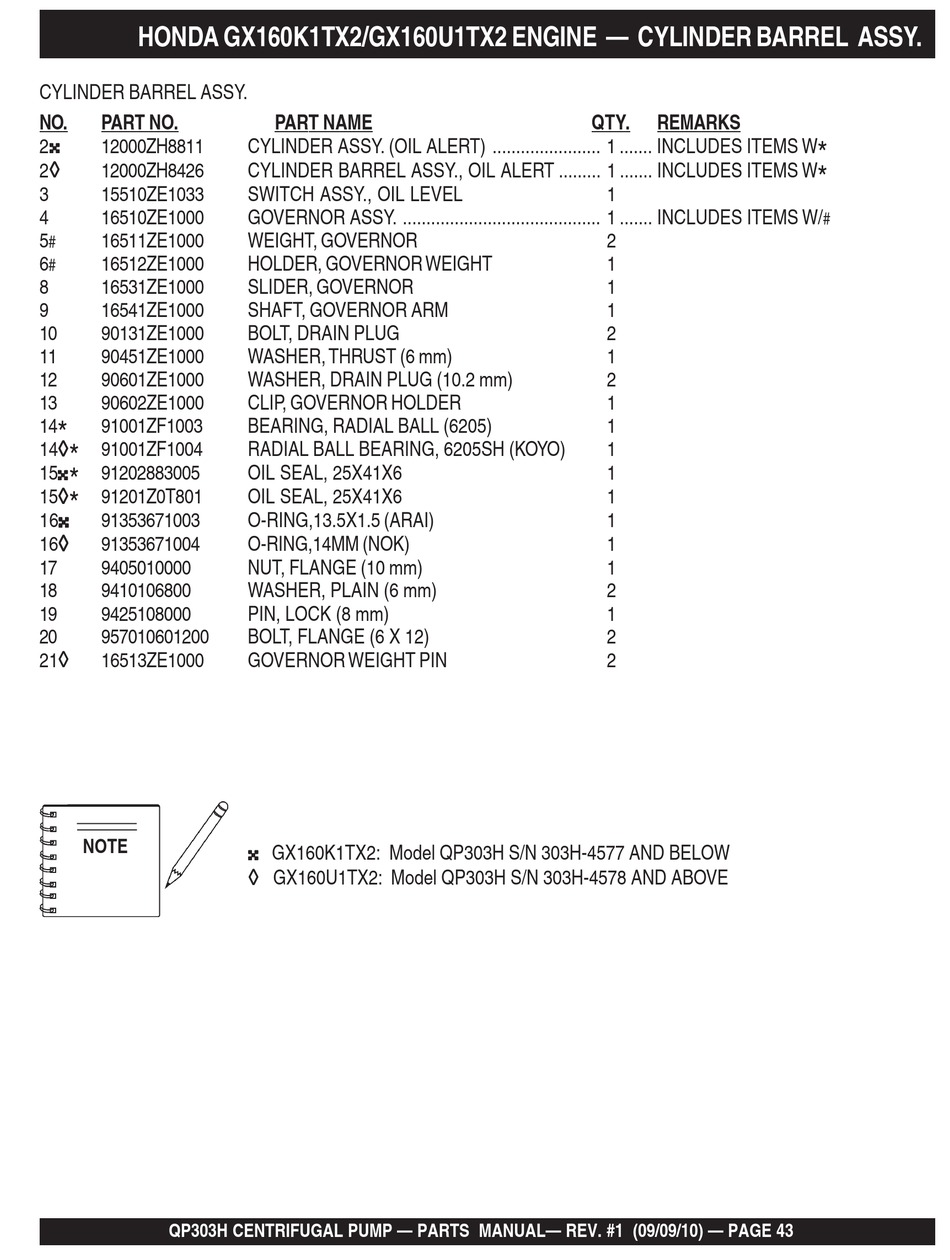

HONDA GX160K1TX2/GX160U1TX2 ENGINE — CYLINDER BARREL ASSY.
CYLINDER BARREL ASSY.
NO. PART NO.
2     12000ZH8811
2◊ ◊ ◊ ◊ ◊
12000ZH8426
3 15510ZE1033
4 16510ZE1000
5 16511ZE1000
#
6 16512ZE1000
#
8 16531ZE1000
9 16541ZE1000
10 90131ZE1000
11 90451ZE1000
12 90601ZE1000
13 90602ZE1000
14 91001ZF1003
*
14◊ ◊ ◊ ◊ ◊
91001ZF1004
*
15     91202883005
*
15◊ ◊ ◊ ◊ ◊
91201Z0T801
*
16     91353671003
16◊ ◊ ◊ ◊ ◊
91353671004
17 9405010000
18 9410106800
19 9425108000
20 957010601200
21◊ ◊ ◊ ◊ ◊
16513ZE1000
NOTE
QP303H CENTRIFUGAL PUMP — PARTS MANUAL— REV. #1 (09/09/10) — PAGE 43
PART NAME
CYLINDER ASSY. (OIL ALERT) ....................... 1 ....... INCLUDES ITEMS W
CYLINDER BARREL ASSY., OIL ALERT ......... 1 ....... INCLUDES ITEMS W
SWITCH ASSY., OIL LEVEL
GOVERNOR ASSY. .......................................... 1 ....... INCLUDES ITEMS W/
WEIGHT, GOVERNOR
HOLDER, GOVERNOR WEIGHT
SLIDER, GOVERNOR
SHAFT, GOVERNOR ARM
BOLT, DRAIN PLUG
WASHER, THRUST (6 mm)
WASHER, DRAIN PLUG (10.2 mm)
CLIP, GOVERNOR HOLDER
BEARING, RADIAL BALL (6205)
RADIAL BALL BEARING, 6205SH (KOYO)
OIL SEAL, 25X41X6
OIL SEAL, 25X41X6
O-RING,13.5X1.5 (ARAI)
O-RING,14MM (NOK)
NUT, FLANGE (10 mm)
WASHER, PLAIN (6 mm)
PIN, LOCK (8 mm)
BOLT, FLANGE (6 X 12)
GOVERNOR WEIGHT PIN
     GX160K1TX2: Model QP303H S/N 303H-4577 AND BELOW
◊ ◊ ◊ ◊ ◊ GX160U1TX2: Model QP303H S/N 303H-4578 AND ABOVE
QTY. REMARKS
1
2
1
1
1
2
1
2
1
1
1
1
1
1
1
1
2
1
2
2
*
*
#
