Kramer Electronics, Ltd. USER MANUAL Models: TP-1xl, Video Line Transmitter TP-2xl, Video Line Receiver 708, Video Audio Line Receiver 711xl, Video-Audio Line Transmitter 712xl, Video-Audio Line Receiver... -
Page 2: Table Of Contents
Your TP-2xl Video Line Receiver Connecting the TP-1xl/TP-2xl Video Line Transmitter/Receiver The 708 Video Audio Line Receiver An Overview of the 708 Video Audio Line Receiver Your 708 Video Audio Line Receiver Connecting the 708 Video Audio Line Receiver The 711xl and 712xl Video-Audio Line Transmitter and Receiver... -
Page 3: Introduction
GROUP 6: Accessories and Rack Adapters; GROUP 7: Scan Converters and Scalers; and GROUP 8: Cables and Connectors 2 Download up-to-date Kramer user manuals from the Internet at this URL: http://www.kramerelectronics.com 3 The complete list of Kramer cables is on our Web site at http://www.kramerelectronics.com Introduction... -
Page 4: Overview
This manual describes the: The TP-1xl Video Line Transmitter and the TP-2xl Video Line Receiver (see section 4) The 708 Video Audio Line Receiver (see section 5) The 711xl Video-Audio Line transmitter and the 712xl Video-Audio Line Receiver (see section 6) -
Page 5: The Tp-1Xl And Tp-2Xl Video Line Transmitter And Receiver
The TP-1xl and TP-2xl are a twisted pair transmitter and receiver for composite video signals. The TP-1xl transmitter converts a composite video signal to a twisted pair signal and the TP-2xl receiver converts the twisted pair signal back into a composite video signal. -
Page 6: Your Tp-1Xl Video Line Transmitter
The TP-1xl and TP-2xl Video Line Transmitter and Receiver 4.2 Your TP-1xl Video Line Transmitter Figure 1 and Table 1 define the TP-1xl: Figure 1: TP-1xl Video Line Transmitter Table 1: TP-1xl Video Line Transmitter Features Feature POWER Switch CV IN BNC Connector... -
Page 7: Your Tp-2Xl Video Line Receiver

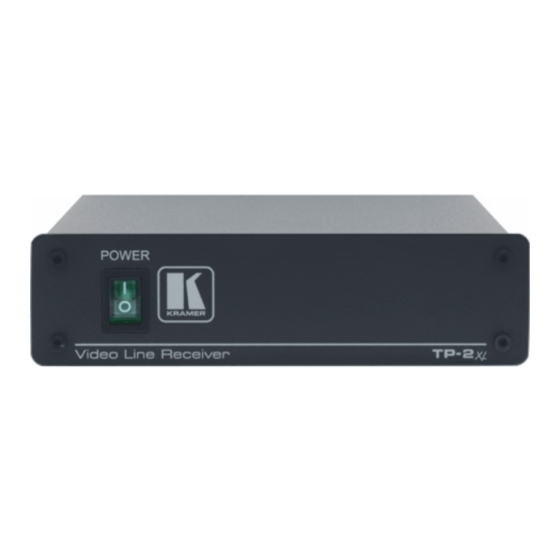

The TP-1xl and TP-2xl Video Line Transmitter and Receiver 4.3 Your TP-2xl Video Line Receiver Figure 2 and Table 2 define the TP-2xl: Figure 2: TP-2xl Video Line Receiver Table 2: TP-2xl Video Line Receiver Features Feature POWER Switch CV OUT BNC Connector... -
Page 8: Connecting The Tp-1Xl/Tp-2Xl Video Line Transmitter/Receiver
Receiver system. To connect the TP-1xl Video Line Transmitter with the TP-2xl Video Line Receiver, as illustrated in the example in Figure 3, do the following: 1. Connect a composite video source (for example, a composite video player) to the CV IN BNC connector of the TP-1xl. -
Page 9: Figure 3: Connecting The Tp-1Xl/Tp-2Xl Video Line Transmitter / Receiver System
The TP-1xl and TP-2xl Video Line Transmitter and Receiver Composite Video Player Display/Recorder Figure 3: Connecting the TP-1xl/TP-2xl Video Line Transmitter / Receiver System From the LINE OUT connector of the TP-1xl Figure 4: Connecting an Additional TP-2xl Unit unit... -
Page 10: The 708 Video Audio Line Receiver
A selectable input signal termination button A polarity inverter switch that inverts the incoming polarity The 708 is part of the Kramer TOOLS™ family of compact high-quality and cost effective solutions, and is fed from an external 12V DC source, making it suitable for field operation. -
Page 11: Your 708 Video Audio Line Receiver
5.2 Your 708 Video Audio Line Receiver Figure 5 and Table 3 define the 708: Figure 5: 708 Video Audio Line Receiver Table 3: 708 Video Audio Line Receiver Features Feature VIDEO OUT BNC Connector Connect to the composite video acceptor... -
Page 12: Connecting The 708 Video Audio Line Receiver
5.3 Connecting the 708 Video Audio Line Receiver To connect the 708 as illustrated in the example in Figure 6, do the following: 1. Connect the VIDEO OUT BNC connector to a composite video acceptor (for example, a display). 2. Connect the AUDIO OUT RCA connector to an unbalanced mono audio acceptor (for example, an amplifier with speakers). -
Page 13: The 711Xl And 712Xl Video-Audio Line Transmitter And Receiver
In addition, the 712xl LINE IN can be looped to add additional outputs and includes a selectable input signal termination push button. The 711xl/712xl are part of the Kramer TOOLS™ family of compact high- quality and cost effective solutions, and are fed from an external 12V DC... -
Page 14: Your 711Xl Video-Audio Line Transmitter
The 711xl and 712xl Video-Audio Line Transmitter and Receiver 6.2 Your 711xl Video-Audio Line Transmitter Figure 7 and Table 4 define the 711xl: Figure 7: 711xl Video-Audio Line Transmitter Table 4: 711xl Video-Audio Line Transmitter Features Feature AUDIO RIGHT RCA... -
Page 15: Your 712Xl Video-Audio Line Receiver
The 711xl and 712xl Video-Audio Line Transmitter and Receiver 6.3 Your 712xl Video-Audio Line Receiver Figure 8 and Table 5 define the 712xl: Figure 8: 712xl Video-Audio Line Receiver Table 5: 712xl Video-Audio Line Receiver Features Feature R RCA Connector... -
Page 16: The 6-Pole Detachable Terminal Block Connector Pinout
Receiver system. To connect the 711xl Video-Audio Line Transmitter with the 712xl Video- Audio Line Receiver, as illustrated in the example in Figure 9, do the following: 1. Connect a composite video source (for example, a composite video player) to the VIDEO IN BNC connector on the 711xl. -
Page 17: Figure 9: Connecting The Video-Audio Line Transmitter / Receiver System
The 711xl and 712xl Video-Audio Line Transmitter and Receiver Composite Display Video Source Figure 9: Connecting the Video-Audio Line Transmitter / Receiver System... -
Page 18: Technical Specifications
Technical Specifications Table 7 includes the technical specifications of the TP-1xl and the TP-2xl, Table 8 includes the technical specifications of the 708, and Table 9 includes the technical specifications of the 711xl, and the 712xl: Table 7: Technical Specifications of the TP-1xl and the TP-2xl... -
Page 19: Table 9: Technical Specifications Of The 711Xl And The 712Xl
Table 9: Technical Specifications of the 711xl and the 712xl 711xl INPUT: Video, 1Vpp/75 on a BNC connector; audio 1Vpp / 33k on RCA connectors OUTPUT: 6-pole detachable terminal block connector MAX. SIGNAL LEVEL: 2.1Vpp (video), 4.2Vpp (audio) VIDEO BANDWIDTH (-3dB): 45MHz AUDIO BANDWIDTH (-3dB): 100kHz DIFF. - Page 20 EXCLUSION OF DAMAGES The liability of Kramer for any effective products is limited to the repair or replacement of the product at our option. Kramer shall not be liable for: Damage to other property caused by defects in this product, damages based upon inconvenience, loss of use of the product, loss of time, commercial loss;...
