Page 1: User Manual
K R A ME R E LE CT R O N IC S L T D . USER MANUAL MODEL: TP-122N XGA/Audio Line Receiver P/N: 2900-300042 Rev 1... -
Page 3: Table Of Contents
Achieving the Best Performance Overview Shielded Twisted Pair (STP) / Unshielded Twisted Pair (UTP) About the Power Connect™ Feature Defining the TP-122N XGA/Audio Line Receiver Connecting the TP-122N XGA/Audio Line Receiver Wiring the CAT 5 LINE IN/LINE OUT RJ-45 Connectors Technical Specifications... -
Page 4: Introduction
Introduction Welcome to Kramer Electronics! Since 1981, Kramer Electronics has been providing a world of unique, creative, and affordable solutions to the vast range of problems that confront the video, audio, presentation, and broadcasting professional on a daily basis. In recent years, we have redesigned and upgraded... -
Page 5: Getting Started
• Avoid interference from neighboring electrical appliances that may adversely influence signal quality • Position your Kramer TP-122N away from moisture, excessive sunlight and dust Caution: No operator serviceable parts inside the unit Warning: Use only the Kramer Electronics input power wall... -
Page 6: Overview
Overview The Kramer TP-122N is an XGA/audio line receiver that receives the coded CAT 5 signal transmitted by a TP-121EDID XGA / Audio Line Transmitter, for example, decodes it and converts it to XGA, stereo analog and S/PDIF digital audio outputs. -
Page 7: About The Power Connect™ Feature
(use the ground terminal of the power supply connection if necessary). For a CAT 5 cable exceeding a distance of 50m, separate power supplies should be connected to the transmitter and to the receiver simultaneously. TP-122N - Overview... -
Page 8: Defining The Tp-122N Xga/Audio Line Receiver

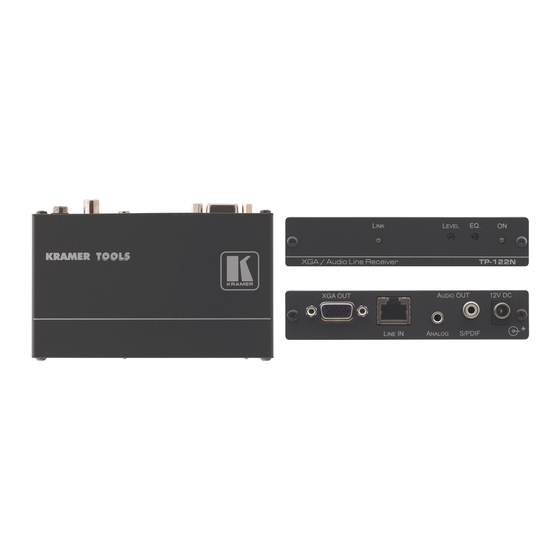

Defining the TP-122N XGA/Audio Line Receiver This section defines the TP-122N. Figure 1: TP-122N XGA/Audio Line Receiver TP-122N - Overview... - Page 9 Degradation and VGA/XGA signal loss can result from using long cables (due to stray capacitance), sometimes leading to a total loss of sharpness in high-resolution signals Use a screwdriver to carefully rotate the trimmer, adjusting the appropriate level ON LED Illuminates when receiving power TP-122N - Overview...
-
Page 10: Connecting The Tp-122N Xga/Audio Line Receiver
XGA OUT 15-pin HD (F) connector to the XGA acceptor. If you cannot connect the power to both the TP-121EDID and TP-122N, you can just connect the power to the TP-122N 5. On the TP-122N adjust the video output signal level and/or cable compensation equalization level, if required. -
Page 11: Figure 2: Connecting The Xga/Audio Line Transmitter/Receiver System
Figure 2: Connecting the XGA/Audio Line Transmitter/Receiver System TP-122N - Connecting the TP-122N XGA/Audio Line Receiver... -
Page 12: Wiring The Cat 5 Line In/Line Out Rj-45 Connectors
3 and 6 Pair 2 1 and 2 Pair 3 1 and 2 Pair 3 3 and 6 Pair 4 7 and 8 Pair 4 7 and 8 Figure 3: CAT 5 PINOUT TP-122N - Connecting the TP-122N XGA/Audio Line Receiver... -
Page 13: Technical Specifications
COUPLING: TND+N: AUDIO: <0.01% POWER SOURCE: 12V DC 190mA (TP-122N) 12V DC 540mA (TP-121EDID/TP-122N pair when powered from TP-121EDID via Power Connect) 12V DC 390mA (TP-121EDID/TP-122N pair when powered from TP-122N via Power Connect) DIMENSIONS: 12.1cm x 7.18cm x 2.42cm (4.76" x 2.83" x 0.95") W, D, H WEIGHT: 0.3kg (0.67lbs) approx. - Page 14 1. Any product which is not distributed by us or which is not purchased from an authorized Kramer dealer. If you are uncertain as to whether a dealer is authorized, please contact Kramer at one of the agents listed in the Web site www.kramerelectronics.com.
- Page 15 For the latest information on our products and a list of Kramer distributors, visit our Web site where updates to this user manual may be found. We welcome your questions, comments, and feedback. Web site: www.kramerelectronics.com E-mail: info@kramerel.com SAFETY WARNING...
