3. Remove the access cover (Figure 33).

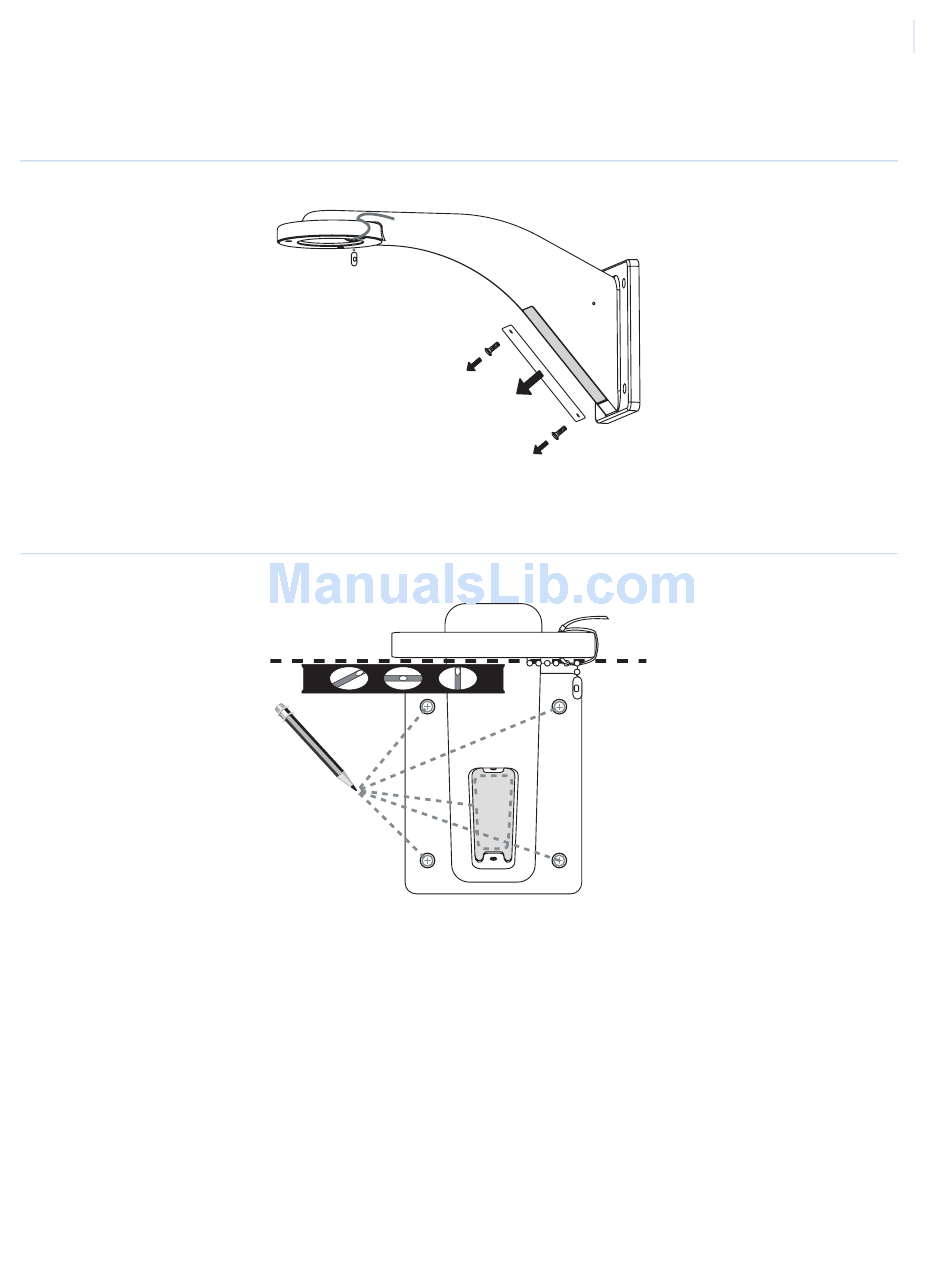

Figure 33. Removing the access cover
4. Using the arm as a template, place it level against the mounting surface and mark the position of the
mounting holes, and if needed, the cable entry hole (Figure 34).
Figure 34. Marking the mounting and cable entry holes
5. Following all local codes, drill and prepare the mounting holes, and if needed, cut the cable entry hole.
6. Feed the cables through the cable entry hole in the mounting surface or through the conduit attached to
the opened conduit hole, and up through the arm.
•
Pull enough cable to make connections. You can always cut off unneeded length later.
•
Do not terminate the cables yet. Otherwise, they will not fit through the dust seal of the housing.
•
How many cables you have depends upon how many alarms and relays you are connecting in
addition to the Ethernet and power cables, and whether you will be installing cables for analog
data and video. See
Wiring and addressing the dome
on page 31.
