GE Security Legend IP Installation Manual page 33

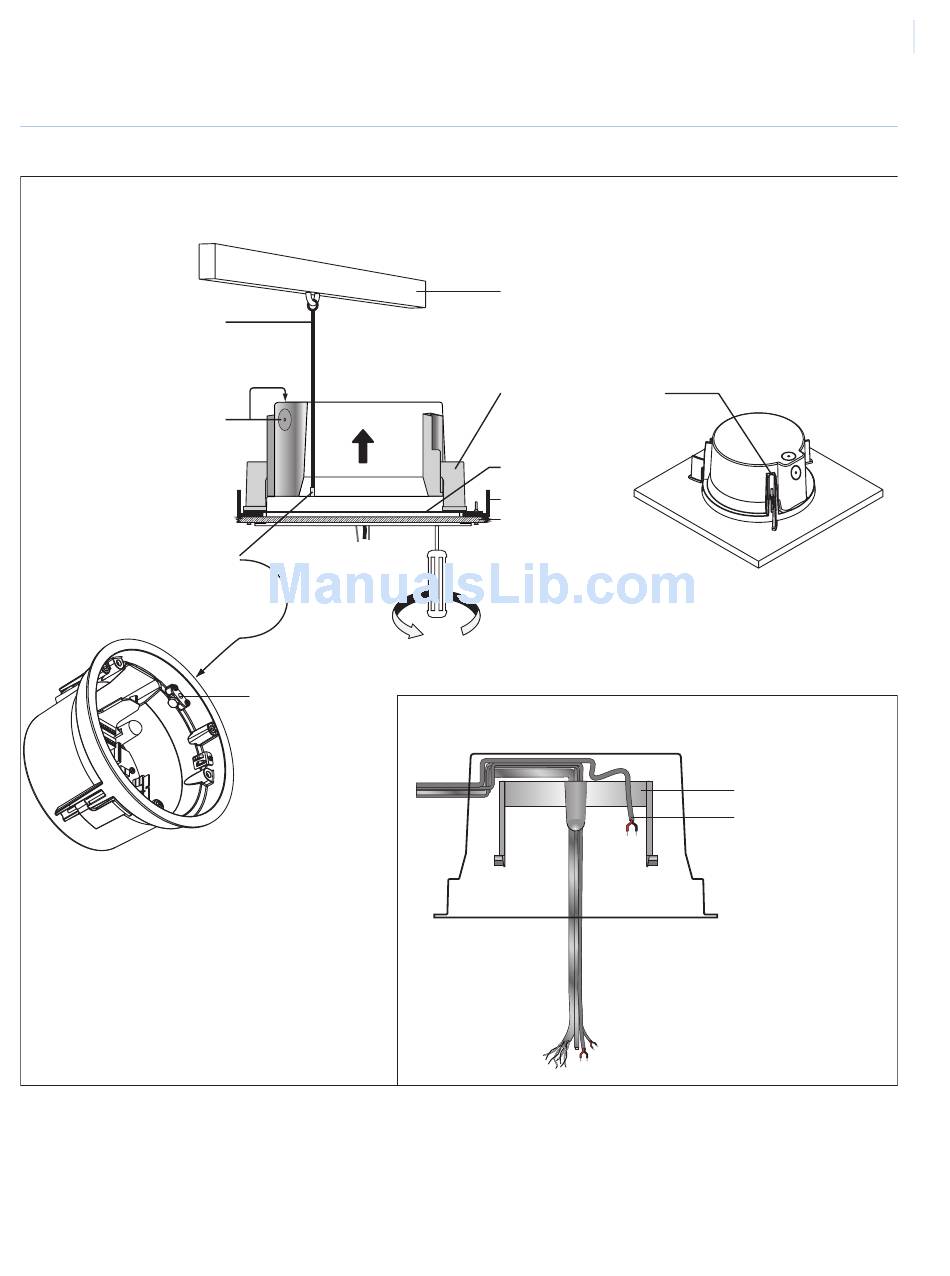

Figure 9. Installing the flush-mount housing
Safety cable
3/4 in. conduit knockouts (2)
Nipple
(snipped off to access
the safety cable clip,
which is inside the housing)
Cables fed
through mount
and housing
Clip for safety cable
(inside housing)
Installing the housing and cables
Building superstructure
Housing tabs (3)
(screwed open and down
against the mount or ceiling)
Ceiling ring
Angle brackets (2)
Ceiling
Flush-mount cabling
Cables are fed as follows:
• all cables run in through the cable entry
hole in the side or top of the housing;
• the power cable runs over the top of the
upper bracket and down beside the power
connector; and
• the remaining cables run down through the
center hole in the upper bracket.
Chapter 2
Upper bracket
Power cable
25
