3. At the equipment selection display, press 3 to
select CAMERA (keypad v1.2.09 or later) or
CAMERA/RCVR (keypad v1.1.06 or
earlier).
If you have an older keypad (v1.1.06 or
earlier), you will have a second equipment
selection display, at which you need to press
1 for CYBERDOME.
4. At the ENTER CAMERA SITE NUMBER
display, enter the number for the camera site
you are programming. This is a 3-digit
number (for example, 007, 021, 243).
You can enter one, two, or three digits and
press set ( ).
5. Continue entering commands with the
joystick.
6. Since passcodes are turned off by default, upon initial installation you can directly access the
programming interface without a passcode (Figure 26).
Note: For complete instructions for navigating the programming interface and programming with it, refer to the
Legend IP User Manual (1055713).

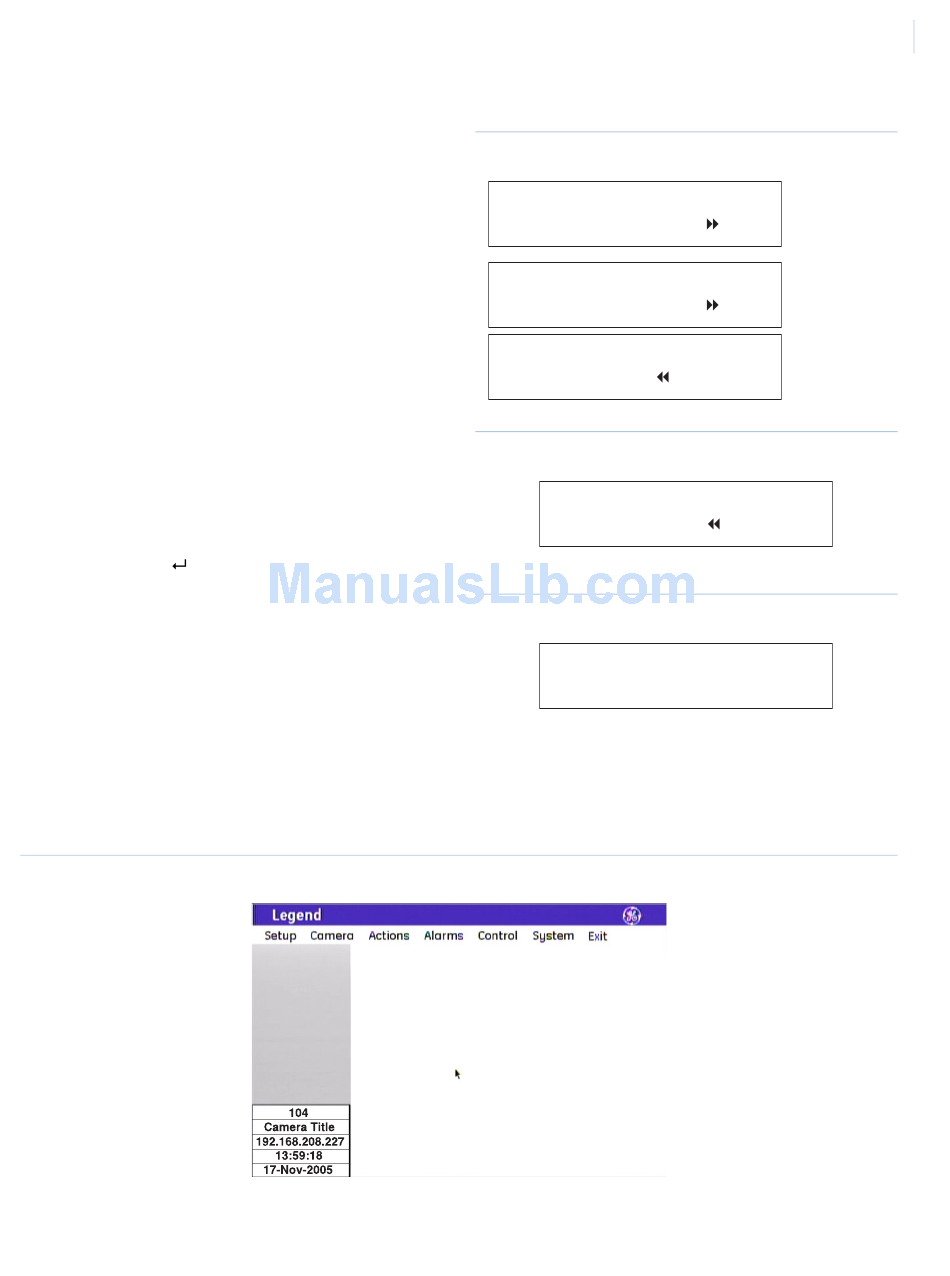

Figure 26. First screen of programming interface when passcodes are turned off
Figure 23. Equipment selection display
1=SWITCHER/MPLX 2=ALARMS
3=CAMERA
1=SWITCHER/MPLX 2=ALARMS
3=CAMERA/RCVR
1=CYBERDOME 2=PTZ
3=AUXILIARY
Figure 24. ENTER CAMERA SITE NUMBER display
ENTER CAMERA SITE
NUMBER _ _ _
Figure 25. SEE MONITOR FOR MENUS display
SEE MONITOR FOR MENUS
HOLD SEQ (3 SEC) TO EXIT
Chapter 5
Using passcodes
v1.2.09
or later
EXIT
}
v1.1.06
EXIT
or
earlier
BACK
BACK
