6 Legend IP
Installation Manual
Typical basic analog system
A minimum of one keypad, which is the most common controlling device, is required for operation. See
Figure 3. From the keypad, an operator can pan, tilt, and zoom the camera, find presets, and start macros and
ShadowTours.

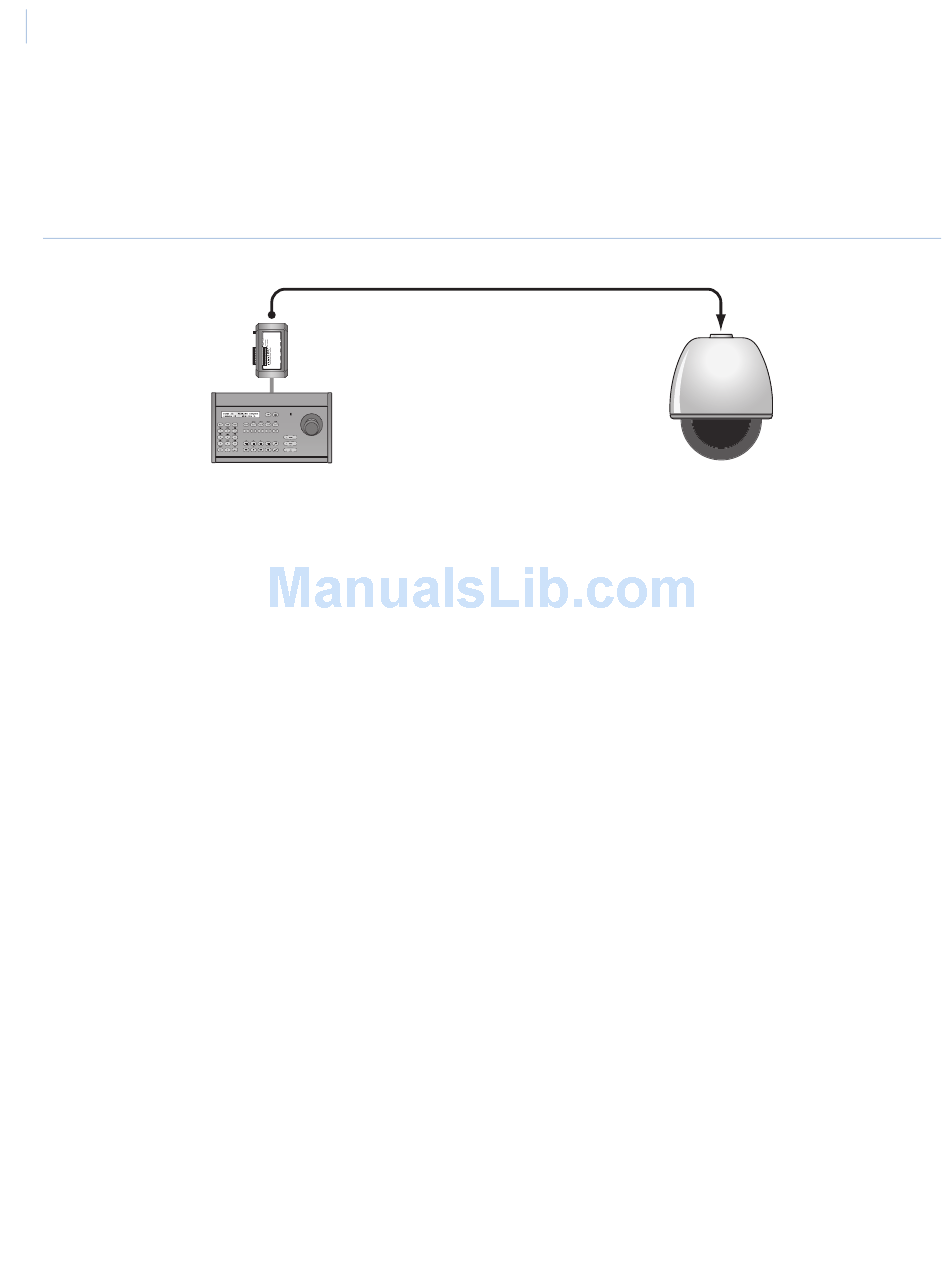

Figure 3. Basic analog system

Product contents

Each Legend IP dome system consists of the following:
• 1 housing
• 1 package containing 4 connectors (one 2-pin for power, one 4-pin for data, one blue 12-pin for six
alarms, and one green 12-pin for two alarms, two relays, and UTP video), and 1 small screw driver
• 2 manuals (installation and user, which covers programming and operation)
• 1 PTZ camera assembly (with built-in IP encoder)
• 1 bubble (mirror bubbles are shipped with cotton gloves for special handling)
• 1 mount (wall-mount and flush-mount versions only)
You may receive the package contents in one large carton containing several smaller boxes, or if shipped
individually, you may receive the smaller boxes separately. One box will contain the housing, connectors, and
manuals. The PTZ assembly, bubble, and mount (for wall-mount versions) are each packaged in separate
boxes.
Inspect the package and contents for visible damage. If any components are damaged or missing, do not use the
unit; contact the supplier immediately. If you need to return the unit, you must ship it in the original box.
Spare parts can be purchased for the domes. See
EARTH GROUND
A
RS485
B
A RS422 IN
B
A
RS422 OUT
B
SPEAKER SHIELD
+
SPEAKER
Spare parts list on page 58.
