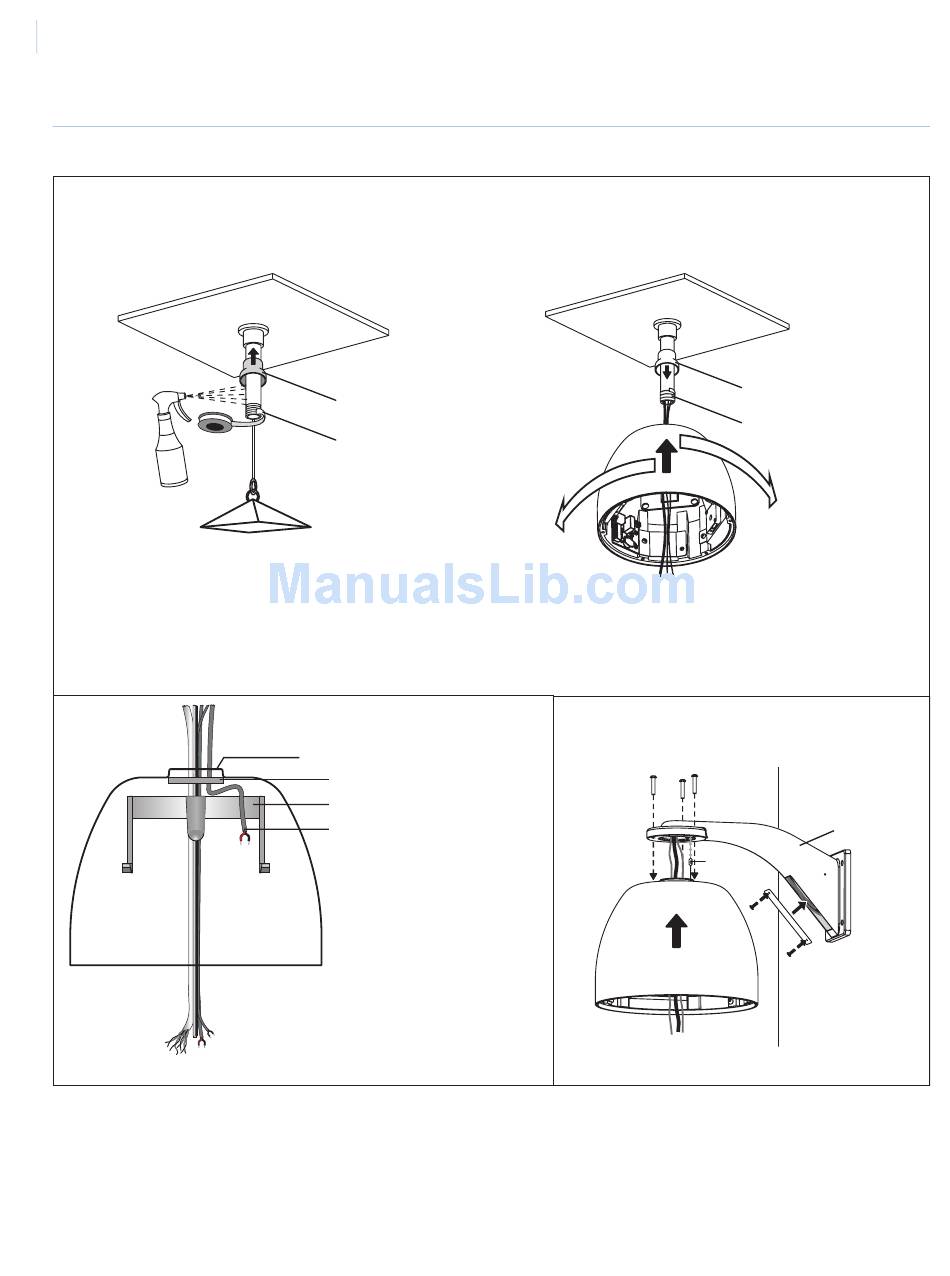

Figure 10. Installing the pendant-mount housing
Soapy water
sprayed on
pipe before
the boot is
slid up.
See Table 1,
quirements of dome configu-
rations
Ceiling
Water-sealing rubber boot
(for outdoor applications)
Teflon tape applied to
pipe threads after the
boot is slid up.
Minimum load re-
on page 9.
Pendant-mount cabling
Cable entry hole
Dust seal
Upper bracket
Power cable
Cables are fed as follows:
• all cables run down through
the cable entry hole and the
dust seal;
• the power cable runs over the
top of the upper bracket and
down beside the power
connector; and
• the remaining cables run
down through the center hole
in the upper bracket.
Typical pipe-mount
If necessary,
housing turned
counterclockwise
to compensate
for cable twist.
Ceiling
Water-sealing rubber boot
(for outdoor applications)
Teflon tape
Housing lifted
and threaded
(turned clockwise)
onto pipe.
Cables fed through
pipe and housing.
Typical wall-mount
Use the safety chain
and screws provided.
Safety
chain
Cables fed through
mount and housing.
Wall
Wall mount
