Summary of Contents for Ledj Libretto Mini Bi-CCT Profile

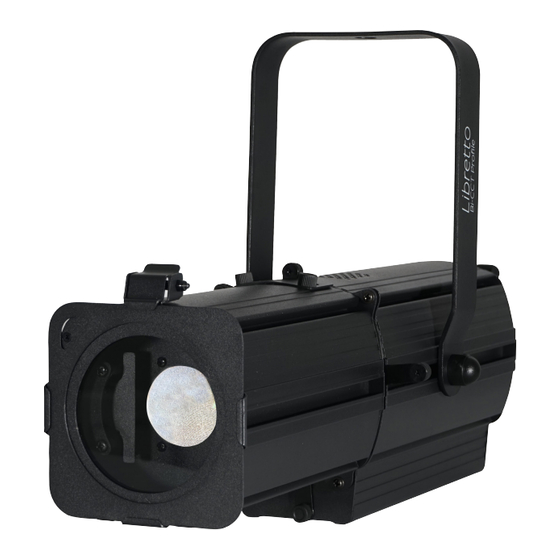

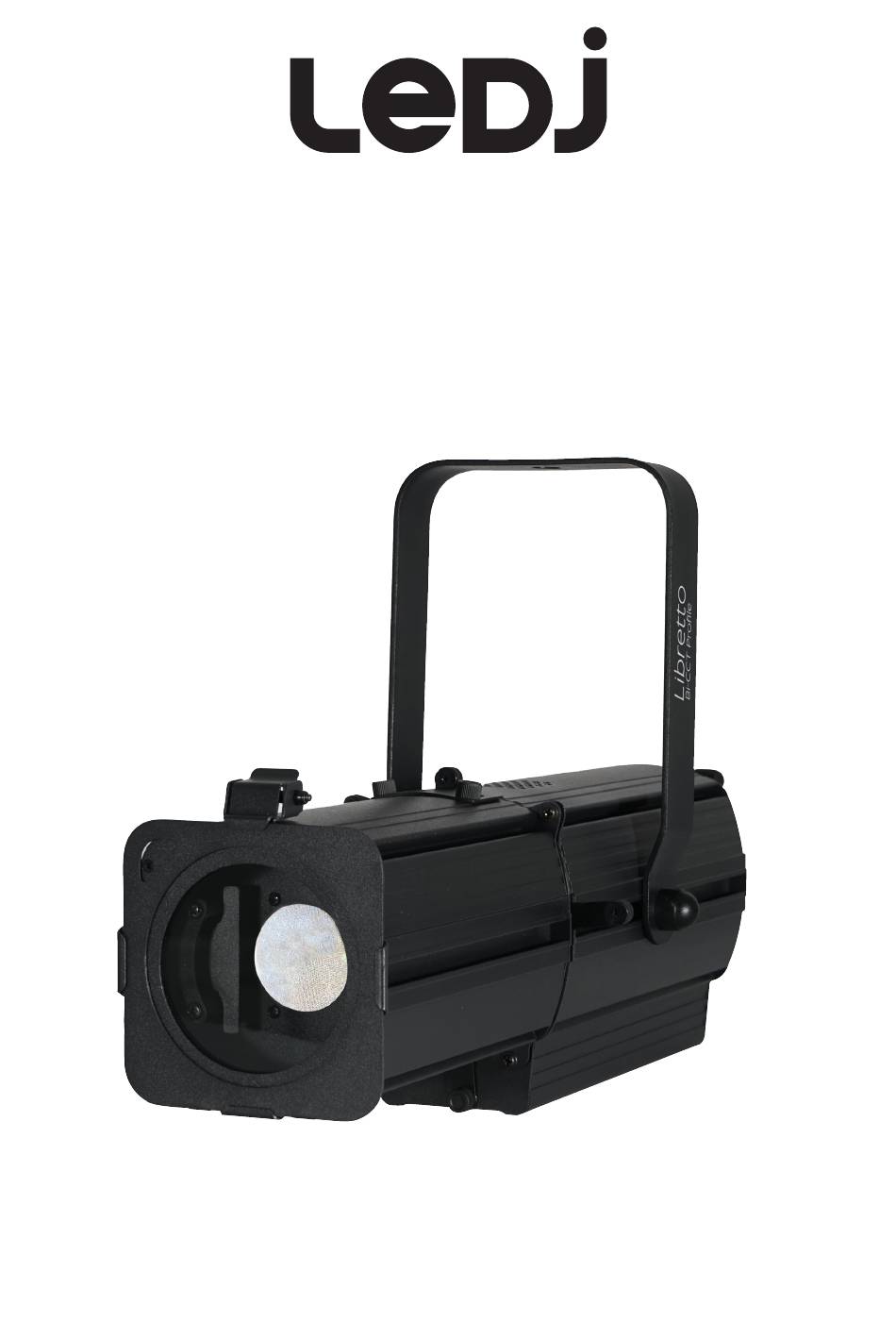

- Page 1 Libretto Mini Bi-CCT Profile User Manual Order codes: LEDJ601...
-
Page 2: Safety Advice
Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual... -
Page 3: Included Gobos
4964 1241 Power supply 100-240V,50/60Hz Fuse T1A 250V 14° 31° Dimensions 260 x 175 x 405mm Weight 2.8kg Order code LEDJ601 Included gobos: Gobo 1 Gobo 2 Gobo 3 Gobo 4 Gobo 5 www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual... -
Page 4: Technical Specifications
Technical specifications 175mm 123mm 405mm 373mm 438mm www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual... - Page 5 1 x gel frame & 03 - 5-Pin DMX input 07 - Fuse T1A 250V 10 - Positioning handle 1 x power cable 04 - 5-Pin DMX output 08 - Safety eye 11 - Hanging bracket www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual...
-
Page 6: Installation
The installation should be checked annually by a qualified person. The Libretto Mini Bi-CCT Profile can be operated in a number of mounting positions as shown in the diagram above, hanging upside-down from the ceiling or truss, mounting sideways on truss or stood upright on a flat level surface. - Page 7 The OLED control panel situated on the front of the fixture allows the user to access the menu system to adjust the fixtures settings. When the unit has been powered on the display will show “Libretto Mini Bi-CCT Profile”. The fixture will then return to its home screen.
- Page 8 Display Brightness Setting Fixture Test Auto Test Auto Test Fixture Use Time Fixture Run Time Fixture Information Firmware Version CPU-A V 0.0 B 1.0 Fixture Firmware Version Special Functions Factory Settings Default Factory Settings www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual...
- Page 9 CCT Macro 125-149 4400K 150-174 4800K 175-199 5200K 200-224 5600K 225-255 6000K 3-2 channel mode: 3 Channel Channel Value Function Warm 000-255 Dimmer (0-100%) Cool White 000-255 Dimmer (0-100%) Master Dimmer 000-255 Dimmer (0-100%) www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual...
-
Page 10: Dmx Setup
3-Pin: CABL10 – 2m CABL11 – 5m CABL12 – 10m 5-Pin: CABL185 – 2m CABL187 – 5m CABL188 – 10m Also remember that DMX cable must be daisy chained and cannot be split. www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual... -
Page 11: Line Termination
3-pin XLR (female) Pin 1: GND (screen) Pin 1: GND (screen) Pin 2: Signal (-) Pin 2: Signal (-) Pin 3: Signal (+) Pin 3: Signal (+) Pin 4: N/C Pin 5: N/C www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual... -
Page 12: Power Linking
Please note: Caution should be used when power linking other fixtures to the Libretto Mini Bi-CCT Profile as the power consumption of other fixtures will vary. Fixtures fitted with lamps often require 2/3 times more current on startup, these may require their own power source. - Page 13 Libretto Mini Bi-CCT Profile User Manual...
- Page 14 Libretto Mini Bi-CCT Profile User Manual...
-
Page 15: Weee Notice
Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Libretto Mini Bi-CCT Profile User Manual... - Page 16 Libretto Mini Bi-CCT Profile User Manual...
