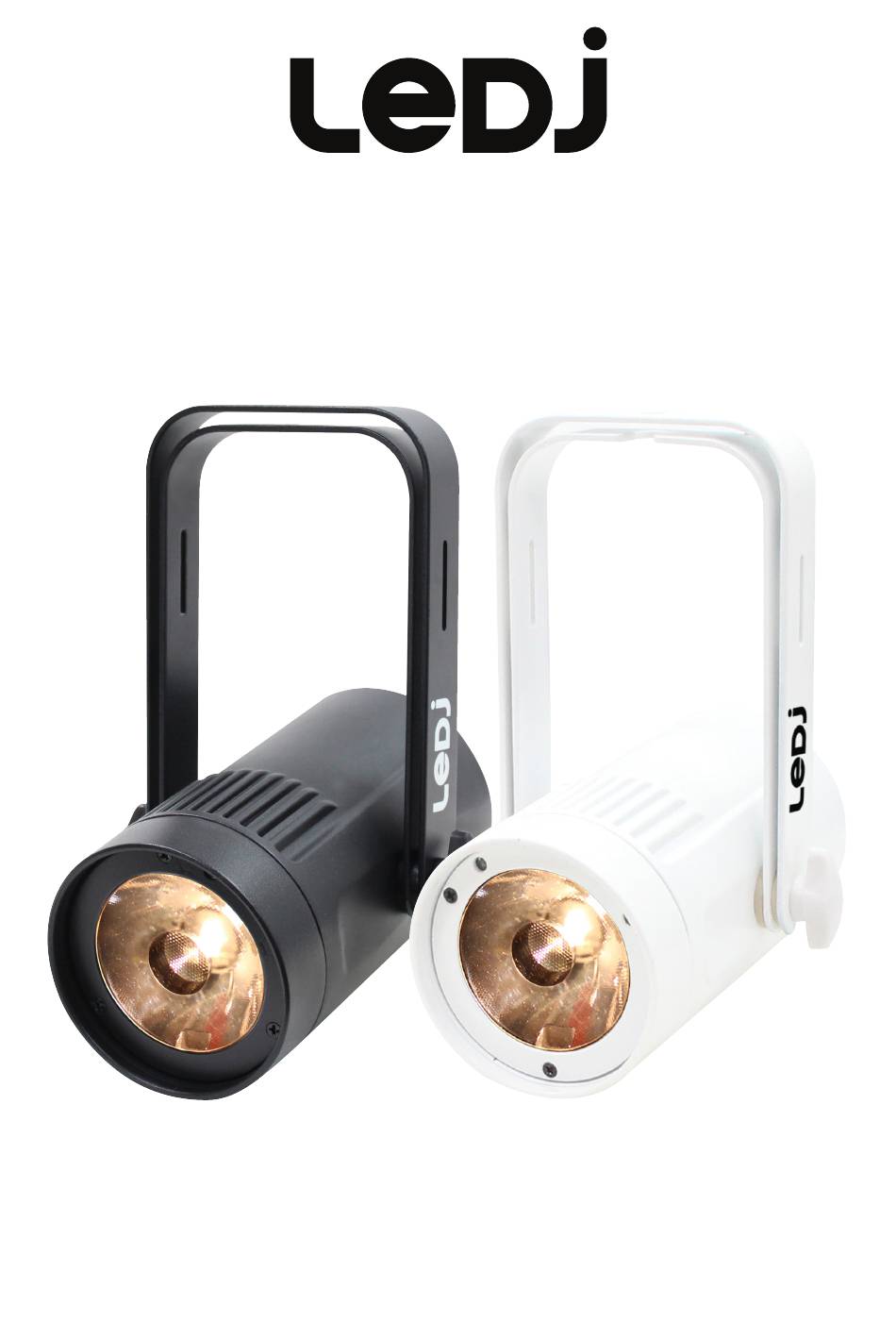

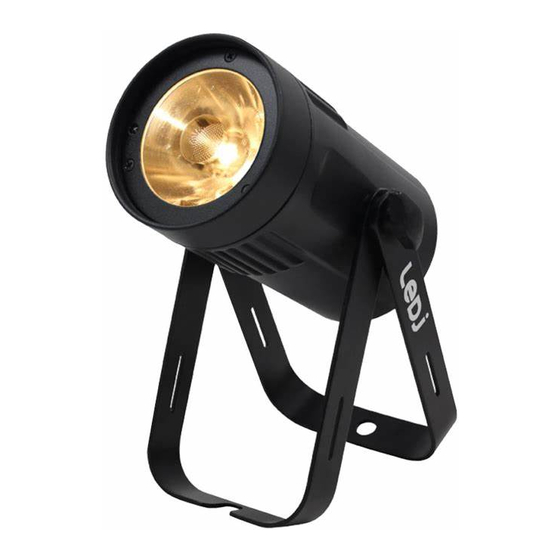

- Page 1 Event Spot WW Triac User Manual Order codes: LEDJ237 - Black Housing LEDJ237A - White Housing...
-
Page 2: Safety Advice
NO USER SERVICEABLE PARTS. pulling the power-cable. • This lighting fixture is for professional use only - it is • Make sure that the available mains supply voltage is not designed for or suitable for household use. The between 100~240V AC, 50/60Hz. product must be installed by a qualified technician in accordance with local territory regulations. The safety of • Make sure that the power cable is never crimped or the installation is the responsibility of the installer. The damaged. Check the equipment and the power cable fixture presents risks of severe injury or death due to fire periodically. hazards, electric shock and falls. • If the equipment is dropped or damaged, disconnect the • Warning! Risk Group 2 LED product according to mains power supply immediately and have a qualified EN 62471. Do not view the light output with optical engineer inspect the equipment before operating again. instruments or any device that may concentrate the beam. • WARRANTY: One year from date of purchase. OPERATING DETERMINATIONS If this equipment is operated in any other way, than those described in this manual, the product may suffer damage and the warranty becomes void. Incorrect operation may lead to danger e.g: short-circuit, burns and electric shocks etc. Do not endanger your own safety and the safety of others! Incorrect installation or use can cause serious damage to people and/or property. www.prolight.co.uk Event Spot WW Triac User Manual... - Page 3 10° - Lux 24000 5989 2660 1500 45° - Lux 2620 4° 10° 45° Specifications Event Spot WW Triac Power consumption Power supply 100~240V, 50/60Hz Fuse T0.5A 250V Dimensions 203 x 135 x 173mm Weight 1.2kg Order code LEDJ237 - WW Triac (Black Housing) LEDJ237A - WW Triac (White Housing) 135mm 173mm www.prolight.co.uk Event Spot WW Triac User Manual...
-
Page 4: Technical Specifications
100-240V ~50/60Hz In the box: 1 x fixture, 1 x 10° frost lens, 01 - Earth point 1 x 45° frost lens, 02 - Rotary dimmer control 1 x power cable 03 - Captive power connection 05 - Hanging bracket & 1 x user manual 04 - Fuse T0.5A 250V 06 - Hanging bracket adjustable knob Operation: Connect to a suitable mains outlet using the captive power connection and use the rotary control to adjust the dimming from 0-100%. www.prolight.co.uk Event Spot WW Triac User Manual... -
Page 5: Weee Notice
WEEE notice Correct Disposal of this Product (Waste Electrical & Electronic Equipment) (Applicable in the European Union and other European countries with separate collection systems) This marking shown on the product or its literature, indicates that it should not be disposed with other household wastes at the end of its working life. To prevent possible harm to the environment or human health from uncontrolled waste disposal, please separate this from other types of wastes and recycle it responsibly to promote the sustainable reuse of material resources. Household users should contact either the retailer where they purchased this product, or their local government office, for details of where and how they can take this item for environmentally safe recycling. Business users should contact their supplier and check the terms and conditions of the purchase contract. This product should not be mixed with other commercial wastes for disposal. www.prolight.co.uk Event Spot WW Triac User Manual... - Page 6 Event Spot WW Triac User Manual...
- Page 7 Event Spot WW Triac User Manual...
- Page 8 Event Spot WW Triac User Manual...
