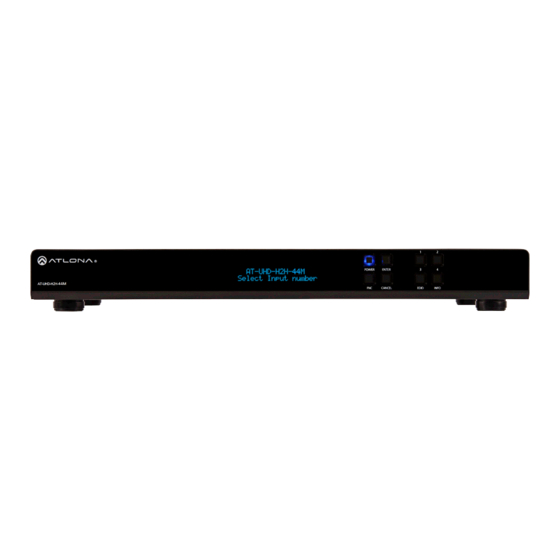

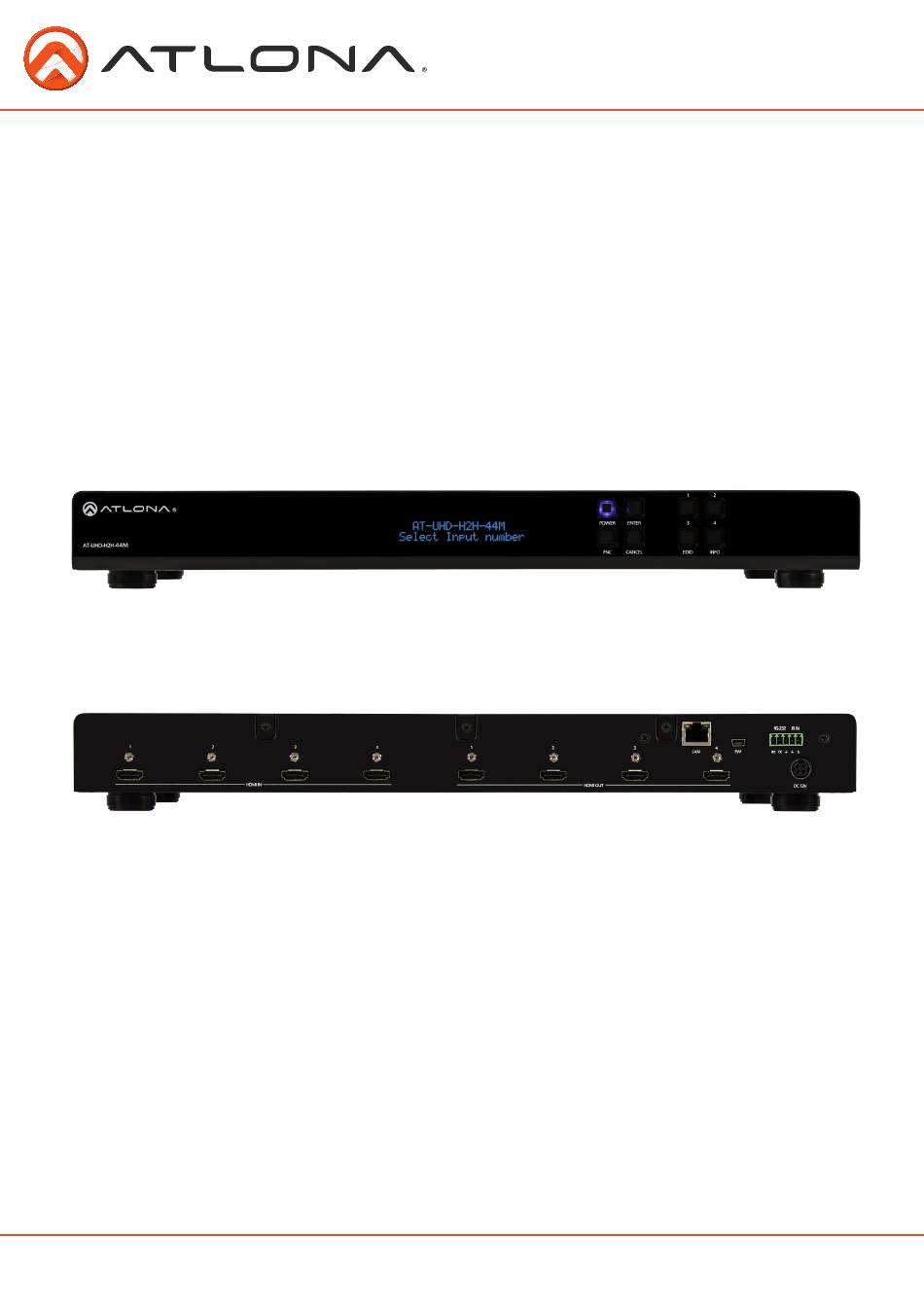

- Page 1 4x4 4K/UHD HDMI to HDMI Matrix Switcher AT-UHD-H2H-44M User Manual Please check http://www.atlona. com/UHD-H2H-44M.html for the most recent firmware update or manual. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 2: Table Of Contents
10. RS-232 ................. 18-20 11. IR Remote Control ................. 20 12. Captive Screw ................. 21 13. Specifications ................. 22 14. Safety Information ................. 23 15. Warranty ................. 24-25 16. Atlona Product Registration ................. 26 Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 3: Introduction
Introduction The Atlona 4x4 4K/UHD HDMI to HDMI Matrix Switcher is designed for the best audio, video, and control experience. Pass through of video up to 4K/UHD or 2560x2048, audio up to Dolby TrueHD, DTS-HD Master Audio, or Dolby Atmos, and multiple control options (such as TCP/IP, RS-232, IR, front panel, and WebGUI) enables the UHD-H2H-44M to provide the highest quality experience no matter if playing a movie, giving a presentation, and more. -
Page 4: Panel Descriptions
Panel Description Front Panel POWER ENTER AT-UHD-H2H-44M CANCEL EDID INFO RS-232 IR IN RX TX HDMI IN HDMI OUT DC 12V 1. IR Receiver Window - Receives the signal from the included IR Hand Held Remote Control or 3rd party controller 2. -
Page 5: Rack Mounting
Note: Increase the air flow as needed to maintain the recommended temperature inside the rack. Note: Do not exceed maximum weight loads for the rack. Install heavier equipment in the lower part of the rack for stability. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 6: Connection Diagram
Connection Diagram Video HDBaseT Ethernet Blu-ray player Control POWER ENTER TCP/IP Set top box AT-UHD-H2H-44M CANCEL EDID INFO Game Console RS-232 IR IN Game Console RX TX HDMI IN HDMI OUT DC 12V AT-UHD-EX-100CE-TX POWER ETHERNET LINK ZIGBEE 12V DC... -
Page 7: Button Set Up
Matrix Front Panel Functions The AT-UHD-H2H-44M’s front panel has 3 functions: I/O control, EDID, and matrix settings. The following sections go over step by step setup & control. I/O Control To route an input to an output I.E. Input 1 to output 2... - Page 8 1080p with 2ch audio. Multi-channel audio and 3D are not enabled on default mode, unless all devices support these features.) 4K/UHD-2ch 4K/UHD-Dolby TrueHD Output 1 Input 1 Blu-ray player POWER ENTER 1080p-2ch AT-UHD-H2H-44M CANCEL EDID INFO Output 2 RS-232 IR IN 4K/UHD - Dolby TrueHD RX TX Output 3 1080p-2ch...
- Page 9 ATL UHD 2CH EDID 14: 3840x2160 multi-channel audio 7.1* ATL UHD MultiCH * Recommended EDID for AVR use ** Recommended EDID for DVI projectors use home screen 1 Copy Output EDID AT-UHD-H2H-44M Select Function ---> ---> ---> ---> ---> 2 Choose Input EDID...
- Page 10 When installing or troubleshooting it’s important to verify settings, or be able to come back to a project and see how it was set up. The AT-UHD-H2H-44M matrix settings are viewable through the front panel display. View current I/O settings, firmware version, IP, and the RS-232 baud rates of the matrix.
-
Page 11: Webgui
IP Address Browser WebGUI Atlona has created an easy to use WebGUI for changing settings and controlling the matrix. To begin, plug a LAN cable into the matrix and your network router, then type the IP address of the matrix into a web browser... - Page 12 The information displayed will help figure out if the matrix is up to date, how long it has been running, and other key information. The Download Log button is for Atlona Tech Support Team only. Tech Support may request the log be sent to them for more in depth troubleshooting.
- Page 13 The firmware page displays the matrix and HDMI chipset firmware version and provides an easy way to update. Download the most current firmware from http://atlona.com/UHD-H2H-44M.html. Once the firmware is on the computer use the browse button to select the correct file. Press the update button and a progress bar will display.
- Page 14 Users will not have the ability to access this page. Admin username and password can also be changed. (default username=”root” and password=”Atlona”) Be sure to write this information down as admin is the only profile allowed to add/remove users. Toll free: 1-877-536-3976 atlona.com...
- Page 15 Label each input and output individually. Select what source or zone that is to be labeled, type the name in the box, and press change. Note: Labels are limited to 16 characters and no spaces Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 16 Note: Switching does not occur during the set up and labeling of route memory. To apply route memory to the matrix: Select the route memory # from the memory selection drop down menu and press the ‘Select’ button. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
- Page 17 The HDCP page provides a quick way to see whether a display is HDCP compliant or not and the version supported. This page will give multiple status readouts: No Connection, Compliant 1.X, Compliant 2.X, and Non-Compliant. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 18: Rs-232
Bits Per Second: 115200, Data Bits: 8, Parity: None, Stop Bits: 1 and Flow Control: None. (see picture C) Set up is done and any hyperterminal program may be used to control the UHD-H2H-44M now. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... - Page 19 Each command or feedback is terminated with a carriage return. Note: If the command fails or is incorrect the feedback should be “Command FAILED” To help with zone troubleshooting the matrix will broadcast “#*PORTXX_[feedback]” when receiv- ing any feedback from any zone. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515...
-
Page 20: Ir Remote Control
Volume Not used for this matrix AT-MRC Note: Do not use any other battery than what is provided by Atlona. If the battery does not work, please contact Atlona for a replacement. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 21: Captive Screw
: signal (AT-LC-CS-IR-2M sold separately) and ground. The signal wire is red and ground wire is black. The IR cable will plug into the IR IN ports and connect to third party control systems. Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 22: Specifications
H x W x D w/rack ears 44.20 x 482.60 x 254 (mm) 1.74 x 19.00 x 10 (inch) Rack Unit Weight Device 2.97 kg 6.55 lbs Certification Power Supply CE, TUV, RCM Product CE, TUV *4096x2160@50/60Hz & 3840x2160@50/60Hz supported @ chroma subsampling 4:2:0 8-bit only Toll free: 1-877-536-3976 atlona.com Local: 1-408-962-0515... -
Page 23: Safety Information
It may also cause damage to your product. Opening the product will void the warranty. Do not attempt to service the unit. Disconnect the product and contact your authorized Atlona reseller or contact Atlona directly. -
Page 24: Warranty
Atlona requires that products returned are properly packed, preferably in the original carton, for shipping. Cartons not bearing a return authorization or case number will be refused. Atlona, at its sole discretion, reserves the right to reject any products received without advanced authorization. Authorizations can be requested by calling 1-877-536-3976 (US toll free) or 1-408- 962-0515 (US/international) or via Atlona’s website at www.atlona.com. -
Page 25: Atlona Product Registration
Atlona’s products may be used in conjunction with. Atlona, at its sole discretion, reserves the right not to extend its warranty offering in instances arising outside its normal course of business including, but not limited to, damage inflicted to its products from acts of god.
