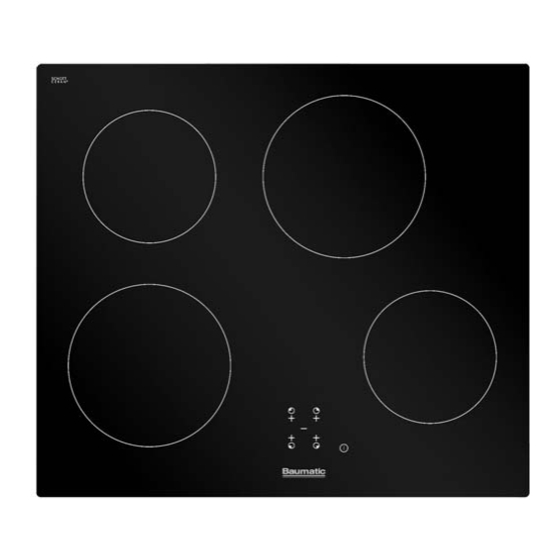

60cm touch control ceramic hob

Advertisement

BF13.3 / BF13.3R
60cm touch control
ceramic hob
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the BF13.3 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Baumatic BF13.3

  • Page 1 BF13.3 / BF13.3R 60cm touch control ceramic hob...
  • Page 2 User Manual for your Baumatic BF13.3 / BF13.3R 60 cm Front touch control 4 zone ceramic hob NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
  • Page 3: Table Of Contents

    Contents Environmental note Important safety information 5 – 8 Specifications 8 – 10 Dimensions Electrical details Ceramic hob layout Control panel layout Using the ceramic hob 10 - 14 Before first use Touch controls Switching the hob top on Switching on a zone and setting a power level Switching off a zone Switching off the hob Residual heat indicator...
  • Page 4: Environmental Note

    Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment.
  • Page 5: Important Safety Information

    You should not use this appliance to store items on or as a work surface. o No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made from aluminium, plastic or plastic film should also be kept away from the appliance, as they may fuse to the surface.
  • Page 6 Child Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the appliance at any time. During and after use, all surfaces will become hot. o If it is necessary for younger family members to be in the kitchen, please ensure that they are kept under close supervision at all times.
  • Page 7 Please see the specific section of this booklet that refers to installation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
  • Page 8: Specifications

    o Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. Specifications Product dimensions: Aperture dimensions: Depth: 510 mm Depth: 480 mm...
  • Page 9: Electrical Details

    Electrical details Rated Voltage: 220 - 240 Vac 50 – 60 Hz Supply Connection: 30 A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 6.00 kW Mains Supply Lead: 3 core x 1.2 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice.
  • Page 10: Control Panel Layout

    Control panel layout 1) ON / OFF button 2) Cooking zone display 3) Plus button 4) Minus button Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance” section). o You should switch on one cooking zone at a time, for 5 minutes at the maximum setting.
  • Page 11: Switching On A Zone And Setting A Power Level

    Switching on a zone and setting a power level IMPORTANT: A zone must be selected within 2 minutes of switching the hob on. o Press the plus button (3) of the cooking zone you wish to switch on to activate the zone. o Adjust the zone temperature between power levels 1 and 9, using the plus and minus buttons.
  • Page 12: Residual Heat Indicator

    o When the temperature of the zone falls below 60°C, then the letter “H” will go out. o IMPORTANT: The residual heat indicator will disappear if the mains supply to the product is cut. o IT IS STILL POSSIBLE TO BURN YOURSELF ON A HOB ZONE, EVEN WHEN...
  • Page 13: Automatic Switch-Off Function

    Automatic switch-off function o Based on the power level, each cooking zone is shut off after a maximum preset time if no buttons are pressed. Each time an action is performed, such as pressing a button, the maximum operation time is reset. o The appliance can be switched off at any time by pressing the power supply button (1) even if the safety lock is in use.
  • Page 14: Cooking Guide

    Cooking guide o For cooking suggestions for the different power levels please see the table below: Touch Cooking suggestions control Power level Off. 1 – 2 For melting processes (butter or chocolate). 2 – 3 For keeping foods hot and heating small amounts of liquids.
  • Page 15: Cleaning And Maintenance

    o The best thickness for the bottom of the pans is 2 – 3 mm for enamelled steel and 4 – 6 mm for stainless steel with sandwich type bottoms. o If these rules are not followed, then there will be a great loss of heat and energy.
  • Page 16: After Each Use

    You may find it easier to clean some deposits whilst the hob surface is still warm. However you should take care not to burn yourself if cleaning the hob surface when it is still warm. After each use o Wipe the appliance over with a damp cloth. o Dry the appliance by rubbing the surface with a clean cloth.
  • Page 17: Using A Specialist Ceramic Hob Cleaner

    o The ceramic surface should be wiped with a damp cloth that has been placed in warm water mixed with a small amount of washing up liquid. o Dry the appliance by rubbing the surface with a clean cloth. Using a specialist ceramic hob cleaner It is possible to purchase a specialist ceramic hob cleaner/conditioner.
  • Page 18: Unpacking The Appliance

    When unpacking the appliance please check that the following items are contained within the packaging:- 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 1 Sealing strip Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above.
  • Page 19 oven manufacturer’s instructions, ensuring that sufficient aeration is provided. o The heat produced by the oven, measured on the right side of the bottom of the hob, must be lower than 60°C, otherwise the heat could damage the touch control panel. o IMPORTANT: You must observe the ventilation requirements shown in the drawing below.
  • Page 20 o Do not leave a gap in the sealing agent or overlap the thickness. o IMPORTANT: Do not use a silicon sealant to seal the appliance against the aperture. This will make it difficult to remove the hob from the aperture in future if it needs to be serviced. Sealing strip Clamp Screw...
  • Page 21: Electrical Connection

    Electrical connection This appliance must be installed by a qualified person in accordance with the latest edition of the I.E.E. Regulations and in compliance with Baumatic’s instructions. Before connecting the appliance, make sure that the supply voltage marked on the rating plate corresponds with your mains supply voltage.
  • Page 22: Replacing The Mains Supply Cable

    o IMPORTANT: The appliance must NOT be connected to the mains supply by means of a 13A plug and socket. o The cable can be looped if necessary, but make sure that is not kinked or trapped when the hob is in position. Care must be taken to avoid the cable being in contact with hot parts of the appliance.
  • Page 23: Error Codes

    * The safety cut out has been triggered. Press the ON/OFF button to reset the hob. * Check that the mains electrical supply to the appliance is correct and working. Check the mains fuse. o The residual heat indicator has not come on after I have switched a cooking zone off.
  • Page 24 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
  • Page 25: Contact Details
