Summary of Contents for Baumatic BHC310 30cm
- Page 1 BHC310 30 cm Domino ceramic hob...
- Page 2 User Manual for your Baumatic BHC310 30 cm Domino ceramic hob with touch control operation NOTE : This User Instruction Manual contains important information, including safety & installation points, which will enable you to get the most out of your appliance. Please keep it in a safe place so that it is easily available for future reference;...
-
Page 3: Table Of Contents
Using a specialist ceramic hob cleaner Installation 23 - 27 Positioning Unpacking the appliance 23 - 24 Installing the appliance 24 – 26 Electrical connection 26 - 27 My appliance isn’t working correctly 28 – 29 Baumatic consumables Contact details... -
Page 4: Environmental Note
Environmental note o The packaging materials that Baumatic uses are environmentally friendly and can be recycled. o Please discard all packaging material with due regard for the environment. -
Page 5: Important Safety Information
No modifications to the appliance are permitted by Baumatic Ltd. o You should not store or place flammable or highly flammable liquids/materials on top of or near the appliance. Items made... - Page 6 Safety o Baumatic strongly recommend that babies and young children are prevented from being near to the appliance and not allowed to touch the applian ce at any time. During and after use, all surfaces will be hot. o If it is necessary for younger family members to be in the...
- Page 7 Please see the specific section of this booklet that refers to stallation. o Baumatic Ltd. declines any responsibility for injury or damage, to person or property, as a result of improper use or installation of this appliance.
-
Page 8: Specifications
o Pans should be lifted on and off the hob surface and not dragged. o Cooking zones should not be switched on without cookware placed on it. Also the cookware should not be empty. o Food or liquid that has high sugar content may damage the hob top if it comes into contact with the ceramic hob surface. -
Page 9: Electrical Details
Electrical details Rated Voltage: 220 - 240 Vac 50 - 60 Hz Supply Connection: 20A (double pole switched fused outlet with 3mm contact gap) Max Rated Inputs: 3.60 kW Mains Supply Lead: 3 core x 1.5 mm² (not supplied) For future reference please record the following information which can be found on the rating plate and the date of purchase which can be found on your sales invoice. -

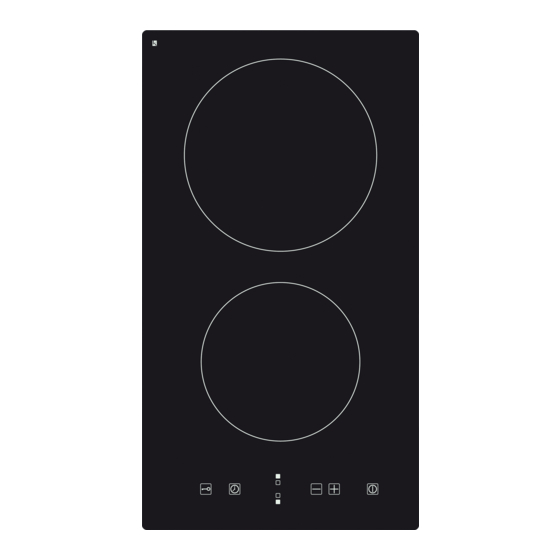

Page 10: Ceramic Hob Surface Layout
Ceramic hob surface layout = 1.80 kW hyper-speed zone = 1.20 kW hyper-speed zone = Glass hob surface = ON / OFF button = Control panel... -
Page 11: Control Panel
Control panel = ON / OFF button = Power / time regulation buttons = Cooking zone selection buttons = Timer button = Safety lock button Using the ceramic hob Before first use IMPORTANT: You should clean the ceramic hob surface (see “Cleaning and maintenance”... -
Page 12: Cooking On A Zone
o A beep will sound each time a touch is registered. o You should make sure that the touch controls are always clean and dry and that there is no object, such as utensils or cloths, covering them. Even a thin film of water may make the controls difficult to operate. -
Page 13: Power Level Settings
o You are able to adjust the power level at any time during cooking. Power level settings o The settings below are to be used as a guideline only. The exact setting required will depend on several factors, including your cookware and the amount of food that you are cooking. -
Page 14: Residual Heat Indicator
o You can then turn the whole hob off by pressing the ON/OFF button (1). Residual heat indicator o After a zone is switched off, the display will show the letter “H”. This means that the temperature of the indicated zone is still high enough to cause injury. -
Page 15: Using The Timer As A Minute Minder
Using the timer as a minute minder It is possible to use the minute minder, even if you are not turning on a cooking zone. o Touch the timer button (4) and the timer display will show “- -“. o Use the time regulation buttons (2) to set the required countdown time. -
Page 16: Setting The Timer To Turn One Cooking Zone Off
Setting the timer to turn one cooking zone off You are able to link the timer to a cooking zone so after the countdown time is complete, the cooking zone will turn off automatically. o Press the relevant cooking zone selection button (3) for the zone that you wish to link a countdown time to. -
Page 17: High Temperature Protection
o When the countdown is complete, the corresponding zone will turn off automatically. IMPORTANT: When the countdown is complete, if the other cooking zone is in use, it will continue to heat. You will need to turn the other cooking zone off manually. High temperature protection o A temperature sensor in the hob can monitor the temperature inside of the hob. -
Page 18: Cooking Tips
Cooking tips o IMPORTANT: Take care when frying as the oil and fat heat up very quickly. At extremely high temperatures oil and fat will ignite spontaneously and this presents a serious fire risk. o When food comes to the boil, reduce the temperature setting. o Using a lid on pans will reduce the cooking times and save energy by retaining heat. -
Page 19: Hob Guidelines
o Turn the steak only once during cooking. The exact cooking time will depend on the thickness of the steak and how well cooked you want it. Times may vary from about 2 – 8 minutes per side. Press the steak to gauge how cooked it is. The firmer it feels, the more “well done”... - Page 20 o Before use, make sure that the bottoms of the saucepans are clean and dry. o When cold, the bottom of the pans should be slightly concave, as they expand when hot and lie flat on the surface of the hob. This will allow the heat to transfer more easily.
-
Page 21: Cleaning And Maintenance
Cleaning and maintenance Cleaning operations must only be carried out when the hob is cool. The appliance should be disconnected from your mains supply before commencing any cleaning process. Cleaning the ceramic hob top Any residues that are left on the hob top surface from cleaning agents will damage it. -
Page 22: Using A Ceramic Hob Scraper
Using a ceramic hob scraper Your appliance will be provided with a hob scraper. The following guidelines should also be followed when using the ceramic hob scraper:- o The scraper should be placed on the ceramic surface at an angle. o Residues should be removed by sliding the blade carefully over the ceramic surface. -
Page 23: Installation
When unpacking the appliance please check that the following items are contained within the packaging:- 1 Baumatic hob 1 Ceramic hob scraper 1 Installation and instruction manual 1 Baumatic guarantee card 4 Fixing brackets 4 Fixing screws 1 Sealing strip... -
Page 24: Installing The Appliance
Installing the appliance o Cut a hole in the worktop that corresponds with the drawing shown above. o IMPORTANT: You must observe ventilation requirements shown the drawing opposite. - Page 25 o IMPORTANT: There ventilation holes around the outside of the hob. YOU MUST ensure that these holes are not blocked by the work top, when you put the hob into position (see drawing opposite). o Carefully turn the hob upside down and place it on a cushioned mat.
-
Page 26: Electrical Connection
o Fasten the bracket to the position on the hob with a screw. Adjust the bracket position to suit different table top thicknesses. o Place the long screw into the fixing hole on the outer edge of the bracket but do not fully tighten. o Carefully turn the hob back over and then gently lower it into the aperture hole that you have cut out. - Page 27 The brown wire must be connected to the terminal marked “L” (live), or coloured red. The blue wire must be connected to the terminal marked “N” (neutral), or coloured black. The green and yellow wire must be connected to the terminal marked “E”...
-
Page 28: My Appliance Isn't Working Correctly
My appliance isn’t working correctly Problem Possible Causes What to do The hob cannot be No power. Make sure the hob is turned on. connected to the power supply and that it is switched on. Check whether there is a power outage in your home or area. - Page 29 Or any installation other than the one specified by Baumatic Ltd. has been completed. Please refer to the conditions of guarantee that appear on the warranty card that you receive with the appliance.
-
Page 30: Baumatic Consumables
BC005 Stainless Steel Cleaner and Protector (250 ml) o BC007 E-Cloth – General Purpose Cloth o BC008 Microwave Cover To order a Baumatic consumable product please call 0123 5437 244 and quote the product code. You can also order online from eshop.baumatic.co.uk... -
Page 31: Contact Details
United Kingdom Baumatic Ltd., Czech Republic Baumatic Buildings, Baumatic CR s.r.o. 6 Bennet Road, Lípová 665 Reading, Berkshire 460 01 Liberec 4 RG2 0QX Czech Republic United Kingdom +420 483 577 200 Sales Telephone www.baumatic.cz (0118) 933 6900 Sales Fax...
