Summary of Contents for Baumatic BF23SS

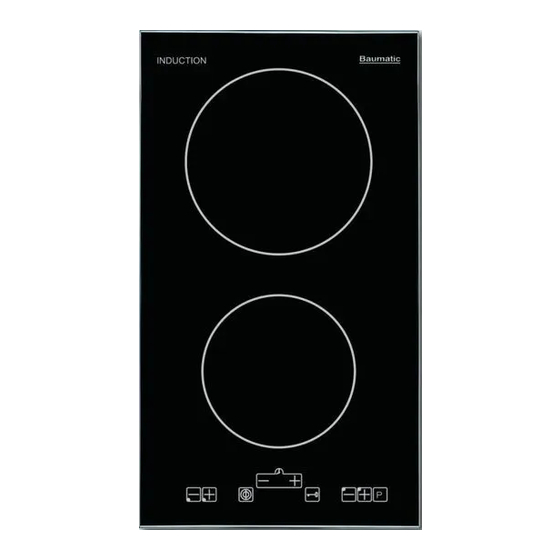

- Page 1 BIZ2SS 30 cm induction zone BF23SS 2 induction & 2 hyperspeed zone ceramic hob BF24SS 4 induction zone ceramic...
-
Page 2: Rating Plate
INDUCTION HOBS BIZ2SS-BF23SS-BF24SS DD 15/01/07 RATING PLATE The appliance rating plate is located on the underside of the hob, once the appliance is fitted into its housing then the rating plate is no longer visible. For future reference please write the rating plate information in the box below. Model Number ………………………………. -
Page 3: Important Safety Notes
We have included this safety information for the purpose of your safety. Please read this information carefully before installing your hob. Should you be unsure of any of these notes please contact the Baumatic Ltd Technical department. Baumatic Ltd Technical department Tel: 0118 933 6933... -
Page 4: General Information
Baumatic appliance. The information and warnings contained in this booklet are designed to assist you in obtaining the best use of your new Baumatic appliance. This appliance complies with all current European safety legislation, however Baumatic Ltd wish to emphasise that compliance does not remove the fact that surfaces will become hot during use and retain heat after operation. -
Page 5: Installation Instructions
INSTALLATION INSTRUCTIONS TECHNICAL DATA MODELS BIZ2SS BF23SS BF24SS Voltage 230V 230V 230V Current Hi-light plate 1800 W Hi-light plate 1200W Induction plate 2200W /Booster 3000W Induction plate 18000W Induction plate 18000W/Booster 2800W Induction plate 1400W Max power W 3.6kW 6.6kW 7.2kW Electrical cable 3x2,5 mm... - Page 6 This appliance is marked according to the European directive 20002/96/EC on waste Electrical and electronic Equipment (WEEE). This guideline is the frame of a europeanwide validity of return and recycling on Waste electrical and electronic Equipment INSTRUCTIONS FOR USE Important: Before cooking with the appliance for the first time, it is important to clean the cook top. Then turn on all the heating elements, one as a time, with no pan on top, for 5 minutes on the maximum temperature setting.
- Page 7 2.Bring the setting down to “0” by means of the “-“ key (4). After 3 seconds, the burner goes off automatically. If the cooking zone is “hot” “0” is displayed alternatively with “H” Turning off the burner instantly: 1.The burner concerned must be on. 2.If you touch the “+”...
- Page 8 Change the level by means of the “+”keys. If the setting is raised, the new preheating time is recalculated taking the time that has already elapsed for the previous setting into account. Disabling the automatic preheating function 1.The burner concerned must be on. The decimal point (7) for the corresponding burner must also be on. 2.
-
Page 9: Cleaning And Maintenance
If you touch the “+” and “-“ keys (10-11) of the timer simultaneously,it goes off immediately. CLEANING AND MAINTENANCE A few cooking tips Use only saucepans and frying pans with a sturdy, preferably thick bottom. This is particularly important when preparing food requiring high cooking temperatures, such as fried foods. If the bottom of the pan is not perfectly flat, the food takes longer to cook and uses up more energy. - Page 10 Fig.1 …………………………………………………………………………………………………………………………………….. Fig.2 (GB) Fixing the cook top to plates for inserting on the bottom of the cook fixing screw the unit bracket …………………………………………………………………………………………………………………………………….. Fig.3 (GB)Applying the seal ……………………………………………………………………………………………………………………………………..
- Page 11 Fig.4 (GB) Electric connections Fig.5 (GB) Description of the controls BIZ2SS BF23SS BF24SS ………………………………………………………………………………………………………………………………….. Fig.6 (GB) Locking the cook top functions...
- Page 12 …………………………………………………………………………………………………………………………………… Fig.7 GB) Turning on and off … Fig.8 (GB) Turning on the burner ……………………………………………………………………………………………………………………………………… Fig.9 (GB) Residual heat indicator …………………………………………………………………………………………………………………………………… Fig.10 (GB) Turning off the cook top ……………………………………………………………………………………………………………………………… Fig.11 (GB) Turning on Booster function ……………………………………………………………………………………………………………………………...
- Page 13 Fig.12 (GB) Enabling automatic preheating Fig.13 (GB) Enabling timer BIZ2SS BF23SS-BF24SS...
- Page 14 Baumatic appliance. * In addition, your appliance is covered by a 5 year parts warranty. Baumatic Ltd will provide free of charge the parts required to repair the appliance, only if they are fitted by a Baumatic engineer, for any defect that arises due to faulty materials or workmanship within a period of 5 years from the original purchase date.
- Page 15 Headquarters Baumatic Ltd. Baumatic Buildings, 6 Bennet Road, Reading, Berkshire RG2 0QX, United Kingdom Sales Telephone +44 118 933 6900 Sales Fax +44 118 931 0035 Service Telephone +44 118 933 6911 Service Fax +44 118 986 9124 Spares Telephone...
