PPC-101
YAMATO CORPORATION
1775 S. Murray Blvd.
Colorado Springs, CO 80916 USA
Tel (719) 591-1500 Fax (719) 591-1045
Operation Manual
YAMATO TECH CORPORATION
#112-19425 Langley By-Pass
Surrey, B.C. V3S 6K1
Tel (604) 533-2338 Fax (604) 533-0827
Canada
YCO-1081-07-01

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-101 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yamato PPC-101

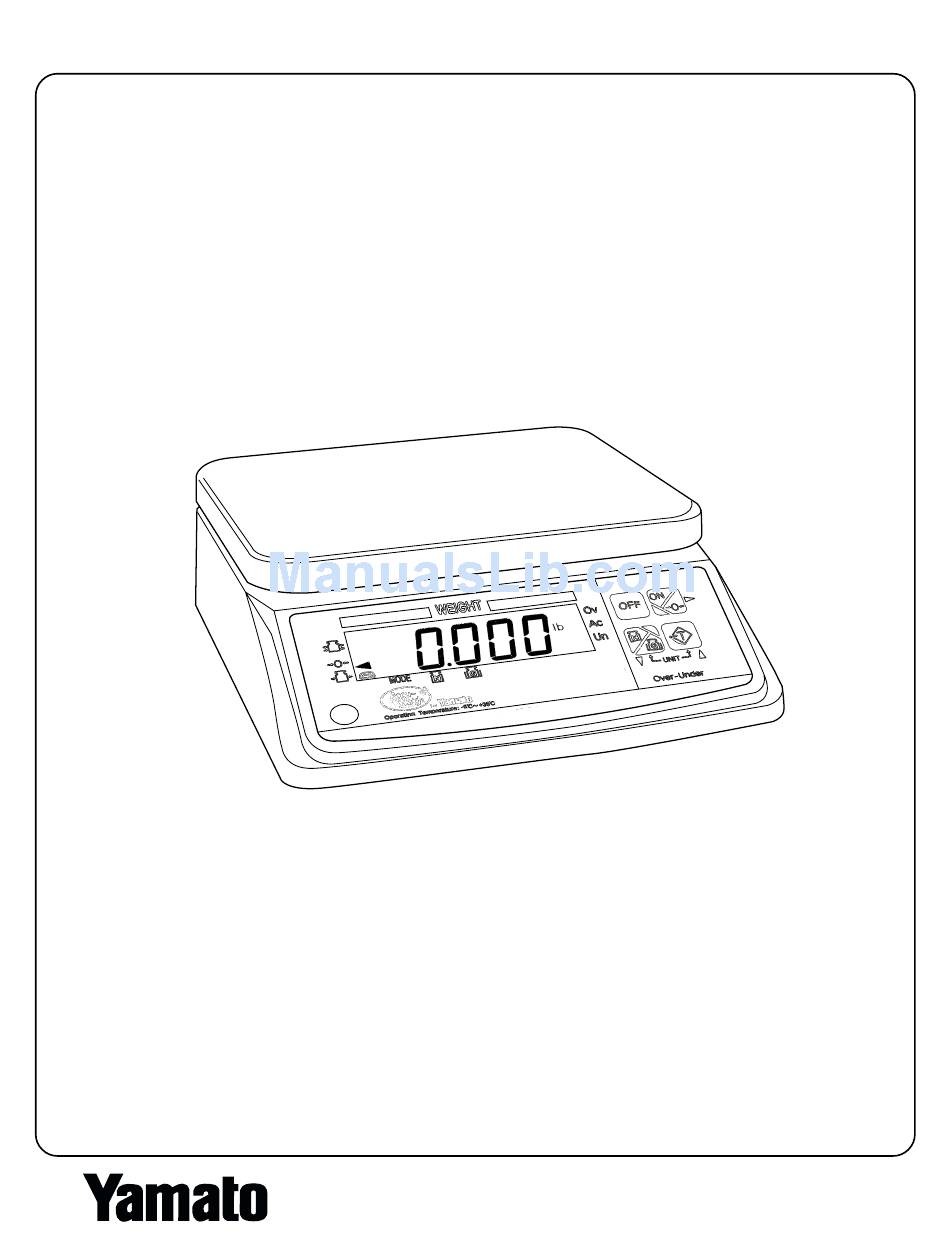

  • Page 1 PPC-101 Operation Manual YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 YCO-1081-07-01...
  • Page 2 Do not insert your finger into the gap or holes in the scale. You may be injured. The PPC-101 uses a liquid crystal display. If the LCD breaks and the liquid leaks from the LCD, do not touch it with your fingers. The liquid is toxic if ingested. Be especially careful around small children.
  • Page 3: Name And Function Of Parts

    PPC-101 Operation Manual NAME AND FUNCTION OF PARTS Fig. 1: Front side of the scale Fig. 2: Bottom of the scale ON/ZERO Key Turns the power on, and zeroes the display. OFF Key Turns the power off. TARE Key Tares off the weight on the scale platform.
  • Page 4 PPC-101 Operation Manual DIRECTIONS FOR USE Installing batteries or AC adaptor Remove the stainless steel platform. Gently and carefully turn the scale upside down. Gently press on the hollow in the battery cover, with your finger and slide the cover towards the front of the scale. After the battery cover is unlocked, lift and remove the cover.
  • Page 5 PPC-101 Operation Manual Setting Over/Under Indicator 1) Press and hold the key and push the key. (Yellow Corners) 2) Press the key to select the digit you want to change. The underscore will advance to the right. 3) Press the up and down arrows to select the desired value.
  • Page 6 PPC-101 Operation Manual Batching With no load on the scale and the CENTER ZERO and STABLE indicators lit, place an empty container on the scale and press the key. The weight of the empty container will be deducted automatically and the display will read zero. Place the first item in the container until the desired weight is reached.
  • Page 7 PPC-101 Operation Manual WARNING AND ERROR INDICATION The scale can check various functions automatically by itself. When a problem is detected, the following messages will be displayed. If you take the steps described below but the problem is not fixed, the scale needs to be serviced by a qualified scale technician.

This manual is also suitable for:

Ppc-100
