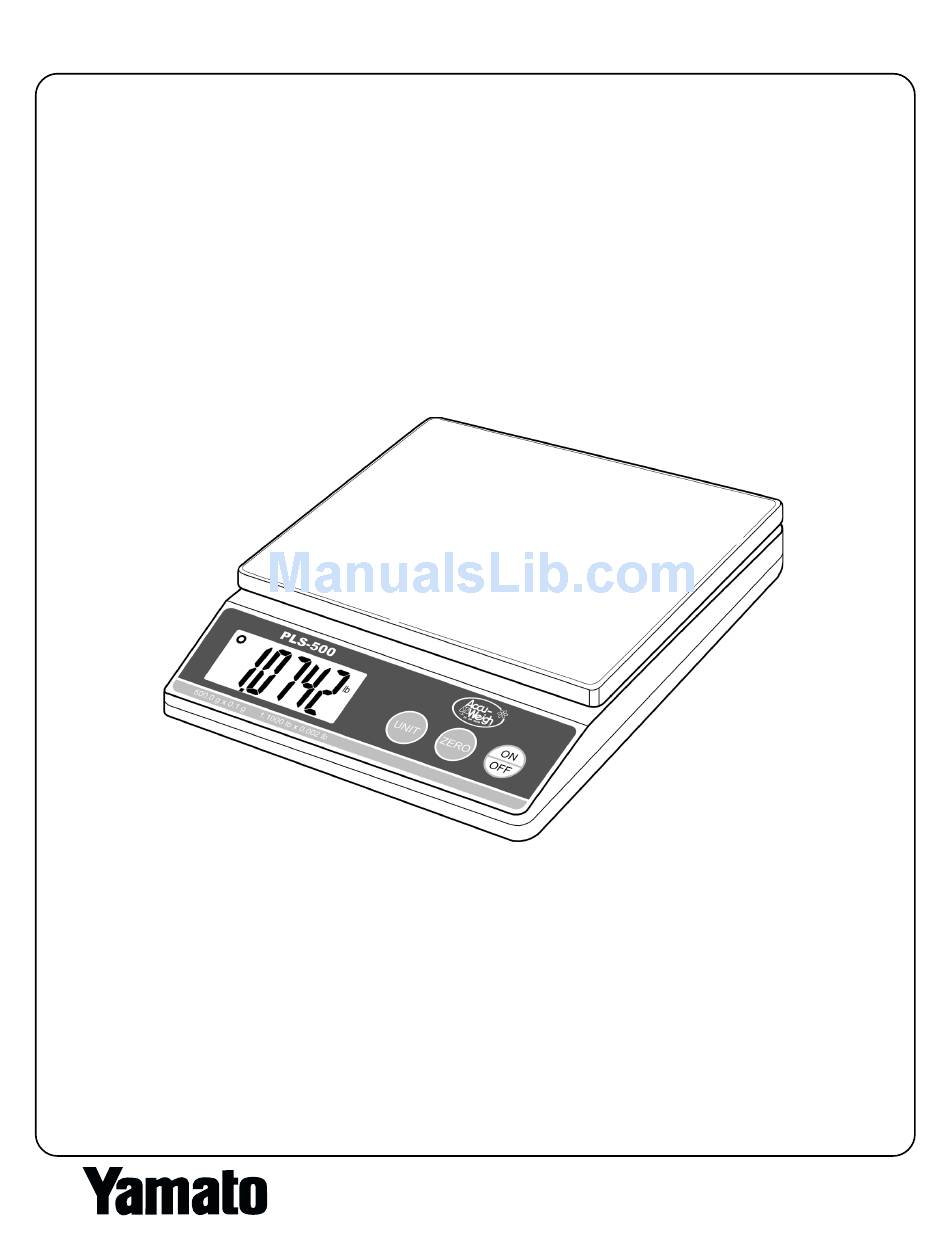

- Page 1 PLS Series Operation Manual YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada www.yamatocorp.com Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 YCO-1101-05-02...
- Page 2 PLS Series Operation Manual Table of Contents Name and Function of Parts Specifications III. Setup Installing the Battery Installing the AC Adaptor Setting the Scale Functions Calibrating the Scale IV. Directions for Use Turning the Scale On and Off Low Battery Condition...
-
Page 3: I Name And Function Of Parts
PLS Series Operation Manual I Name and Function of Parts PLS-500 UNIT ZERO 500.0 g x 0.1 g 1.1000 lb x 0.0002 lb Stable annunciator Indicates the displayed weight reading is stable. LCD Display Displays measured weight, units and status information. -
Page 4: Iii Setup
PLS Series Operation Manual III Setup Installing the Battery The PLS uses a standard 9 volt alkaline battery. The battery compartment is located under the scale towards the back of the scale. Press the locking tab in and swing the cover out. Snap the battery onto the connector and replace the compartment cover. - Page 5 PLS Series Operation Manual III Setup YCO-1101-05-02...
-
Page 6: Iv Directions For Use
PLS Series Operation Manual IV Directions for Use Turning the Scale On and Off Remove everything from the platform surface, and press the key. The display will briefly display a countdown of five digits. After approximately three seconds, the display will automatically set to zero. - Page 7 PLS Series Operation Manual IV Directions for Use Gross Weighing 1) Begin with no load on the scale and the display reading zero. 2) Place the item(s) to weighed on the scale platform. The weight displayed will be the gross weight.
-
Page 8: V Troubleshooting And Error Messages
PLS Series Operation Manual V Troubleshooting and Error Messages The scale can check some functions automatically. When a problem is detected, the following mes- sages will be displayed. Take the steps described below in order until the error is corrected.
