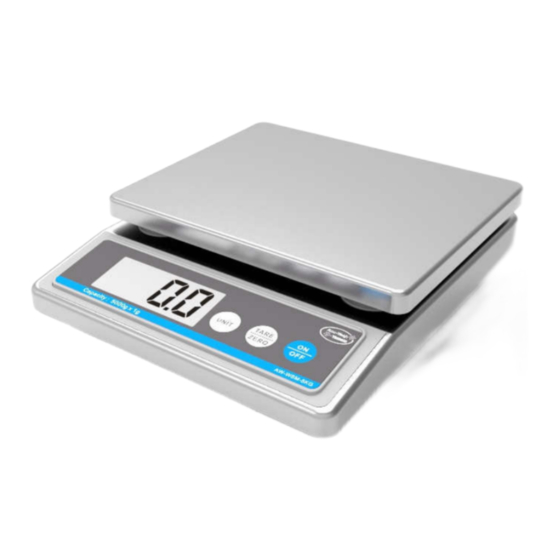

Digital Portion Scale
AW-WSM-5KG
USER MANUAL
PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE
STARTING TO USE THE SCALES
0
1
Advertisement
Table of Contents
Related Manuals for Yamato AW-WSM-5KG
Summary of Contents for Yamato AW-WSM-5KG
- Page 1 KEY FUNCTION DESCRIPTION: ............ 9 CALIBRATION PROCEDURE............10 INSTRUCTION AUTO SHUT-OFF FUNCTION......11 ERROR MESSAGE................ 12 ROHS COMPLIANCE ..............15 Digital Portion Scale AW-WSM-5KG USER MANUAL PLEASE TAKE THE TIME TO READ THESE INSTRUCTIONS BEFORE STARTING TO USE THE SCALES...
- Page 2 INTRODUCTION CLEANING We would recommend using alcohol based wipes or similar when Thank you for purchasing a Yamato Portion Scale. Please read this cleaning the scales. instruction manual carefully before use. Keep these instructions Please do not use large amounts of water when cleaning the scales as handy for future reference.
- Page 3 “Please note the accompanying documents“ POWER SUPPLY & LOW BATTERY or “Observe operating instructions” 1. The AW-WSM-5KG scale uses 9 volt battery. 2. Low battery indication will display on LCD display when battery “Electro-medical appliance“ with attachment for type B power is insufficient to perform the weighing.
- Page 4 INSTALLING THE BATTERY SPECIFICATIONS AW-WSM-5KG uses 9 volt battery (not included) for operation. If MODEL# AW-WSM-5KG you want scale to be operated by battery, please install batteries by Capacity referring to instruction below. 5000g x 1g Division 1. Turn the scale over to find the battery housing cover.
- Page 5 PANEL AND LCD DISPALY KEY FUNCTION DESCRIPTION: a. ON/OFF: 1. Turn on the scale by pressing the ON/OFF key. 2. The display will count down from 88888 and will automatically display zero (weighing mode). 3. Place the item in the middle of the scale. Wait until the scale stabilizes and stable enunciator illuminates on the display.
- Page 6 CALIBRATION PROCEDURE INSTRUCTION AUTO SHUT-OFF FUNCTION Operation Display 1. Place the scale on a hard, level Press ZERO Select Key 3 sec surface. 2. Don’t press ON/OFF key, Define 3. Press and hold ON/OFF, and then press UNIT key three times. To enter into calibration procedure.
- Page 7 ERROR MESSAGE ERROR REASON ACTION MESSAGE Low battery: Please replace with new This warning shows that batteries or plug the AC the voltage of batteries adaptor for operation. is too low to use. Overload: The total load exceeds Please reduce the loading the maximum capacity of and try again.
- Page 8 PBDE (Polybrominated Diphenyl Ethers) 0.1% Hexavalant Chromium 0.1% Cadmium 0.01% YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S, Murray Bivd. #112-194525 Langley By-Pass Colorado Springs, Co 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel(604) 533-2338 Fax(604) 533-0827...
