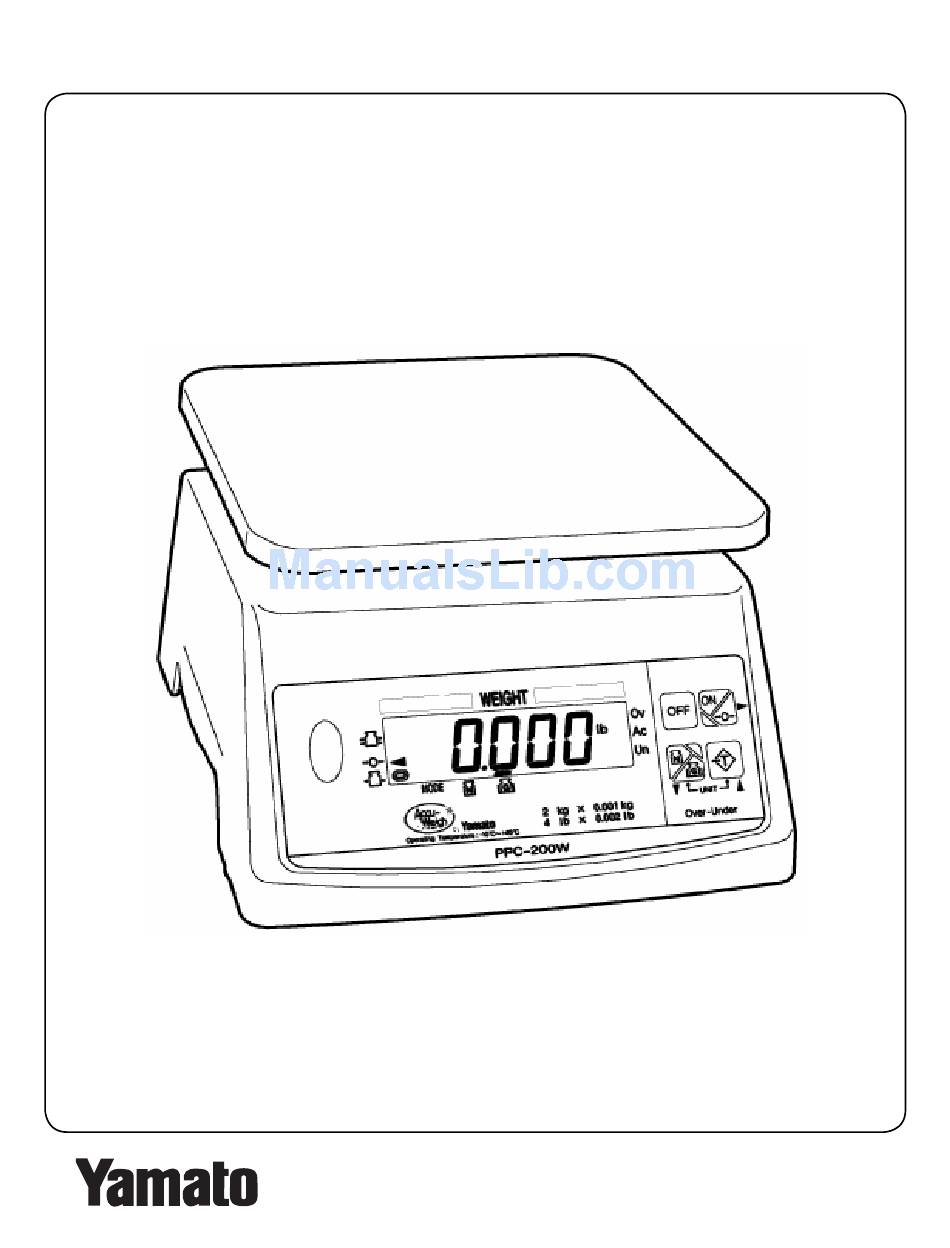

PPC-200(W)
PPC-200W: WASHDOWN
PPC-200: SPLASH-PROOF
YAMATO CORPORATION
1775 S. Murray Blvd.
Colorado Springs, CO 80916 USA
Tel (719) 591-1500 Fax (719) 591-1045
Operation Manual
YAMATO TECH CORPORATION
#112-19425 Langley By-Pass
Surrey, B.C. V3S 6K1
Tel (604) 533-2338 Fax (604) 533-0827
Canada
YCO-1047-07-04

Advertisement

Table of Contents
loading

Related Manuals for Yamato PPC-200W

Summary of Contents for Yamato PPC-200W

  • Page 1 PPC-200(W) Operation Manual PPC-200W: WASHDOWN PPC-200: SPLASH-PROOF YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827...

  • Page 2: Safety Instructions

    8) The PPC-220W is a washdown scale, but is not a submersible scale. Do not place the PPC-200W in water higher than the bottom of the housing. Do not spray water up into the underside of the PPC-200W.

  • Page 3: Table Of Contents

    PPC-200(W) Operation Manual Table of Contents Name and Function of Parts Specifi cations III. Directions for Use A. Installing Batteries or AC Adaptor B. Levelling the Scale C. Turning the Scale On and Off D. Checking the Battery Level E. Zero the Display F.

  • Page 4: Name And Function Of Parts

    25% to 85% RH Waterproof classifi cation: PPC-200W complies with JIS class 5 standard (drip-proof V type) PPC-200 complies with JIS class 2 standard (drip-proof II type) * The scales is NOT washdown if it has been modifi ed for the analog meter or if the AC jack seal has been removed.

  • Page 5: Directions For Use

    PPC-200(W) Operation Manual III Directions for Use III.A Installing Batteries or AC adaptor Remove the stainless steel platform. Gently and carefully turn the scale on it's side. Ensure the surface around the battery cover is dry. Do not allow water to enter the battery compartment. Turn the bat- tery cover thumb screw coun ter clock wise until it comes free.

  • Page 6: Setting The Over/Under Indicator

    PPC-200(W) Operation Manual III Directions for Use III.G Setting the Over/Under Indicator 1) Place the scale in normal weighing mode. 2) Press and hold the key and push the key. (Yellow Cor- ners) 3) Press the key to select the digit you want to change. The underscore will ad vance to the right.

  • Page 7: Weighing

    PPC-200(W) Operation Manual III Directions for Use III.H Weighing III.H.1 Using the Under/Over Indicator 1) Begin with no load on the scale, the display reading zero, and the center zero and stable indicators lit. The small up and down ar row heads on the right side of the display indicate that the over and under setpoints, re spec tive ly, have been set.

  • Page 8: Net Weighing

    PPC-200(W) Operation Manual III Directions for Use III.H Weighing III.H.3 Net Weighing 1) Begin with no load on the scale, the display reading zero, and the center zero and stable indicators lit. 2) Place an empty container on the scale platform and press the key.

  • Page 9: Batching

    PPC-200(W) Operation Manual III Directions for Use III.H Weighing III.H.4 Batching (continued) 5) Continue in this manner until all items to be batched have been weighed. Do not allow the gross weight on the scale platform to ex ceed the ca pac i ty of the scale. 6) Remove all items from the scale plat form and press the key.

  • Page 10: Optional Analog Meter

    * * * WARNING * * * The PPC-200W is NOT WASHDOWN if the analog meter has been in stalled! Dam age will result to the scale and meter if an at tempt is made to washdown the scale after it has been modifi ed for the analog meter.
  • Page 11 PPC-200(W) Operation Manual V Optional Analog Meter Setting the Analog Meter 1) Press and hold the key for 2-3 seconds. The display will show the current under setpoint. 2) Press the key to select the digit you want to change. The underscore will move to the right.

  • Page 12: Troubleshooting And Error Messages

    PPC-200(W) Operation Manual VI Troubleshooting and Error Messages The scale can check various functions automatically. When a problem is detected, the fol low ing mes- sag es will be displayed. If you take the steps described below but the problem is not fi xed, the scale needs to be serviced by a qualifi...

  • Page 13: User Parameter

    PPC-200(W) Operation Manual User Parameter Function Description Word Value Auto-off timer 000 Disables auto-off. 001~240 Number of minutes unused to activate auto-off. Display hold timer 000 No display hold for changes less than four divisions. 001~030 Display hold duration, in seconds, for changes less than four divisions.
