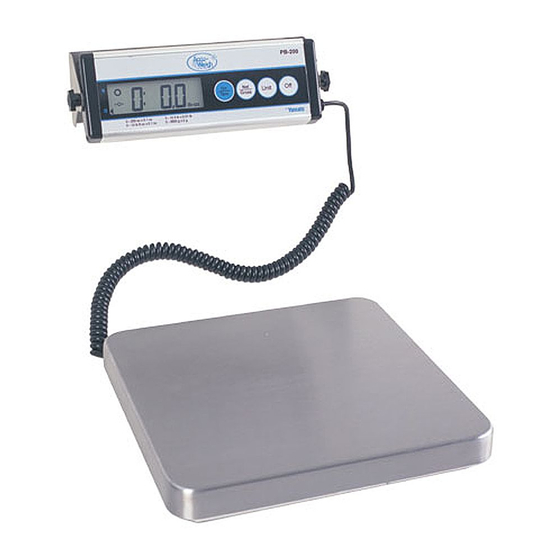

PB-200
YAMATO CORPORATION
1775 S. Murray Blvd.
Colorado Springs, CO 80916 USA
Tel (719) 591-1500 Fax (719) 591-1045
Technical Manual
YAMATO TECH CORPORATION
#112-19425 Langley By-Pass
Surrey, B.C. V3S 6K1
Tel (604) 533-2338 Fax (604) 533-0827
Canada
YCO-1052-03-00

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PB-200 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yamato PB-200

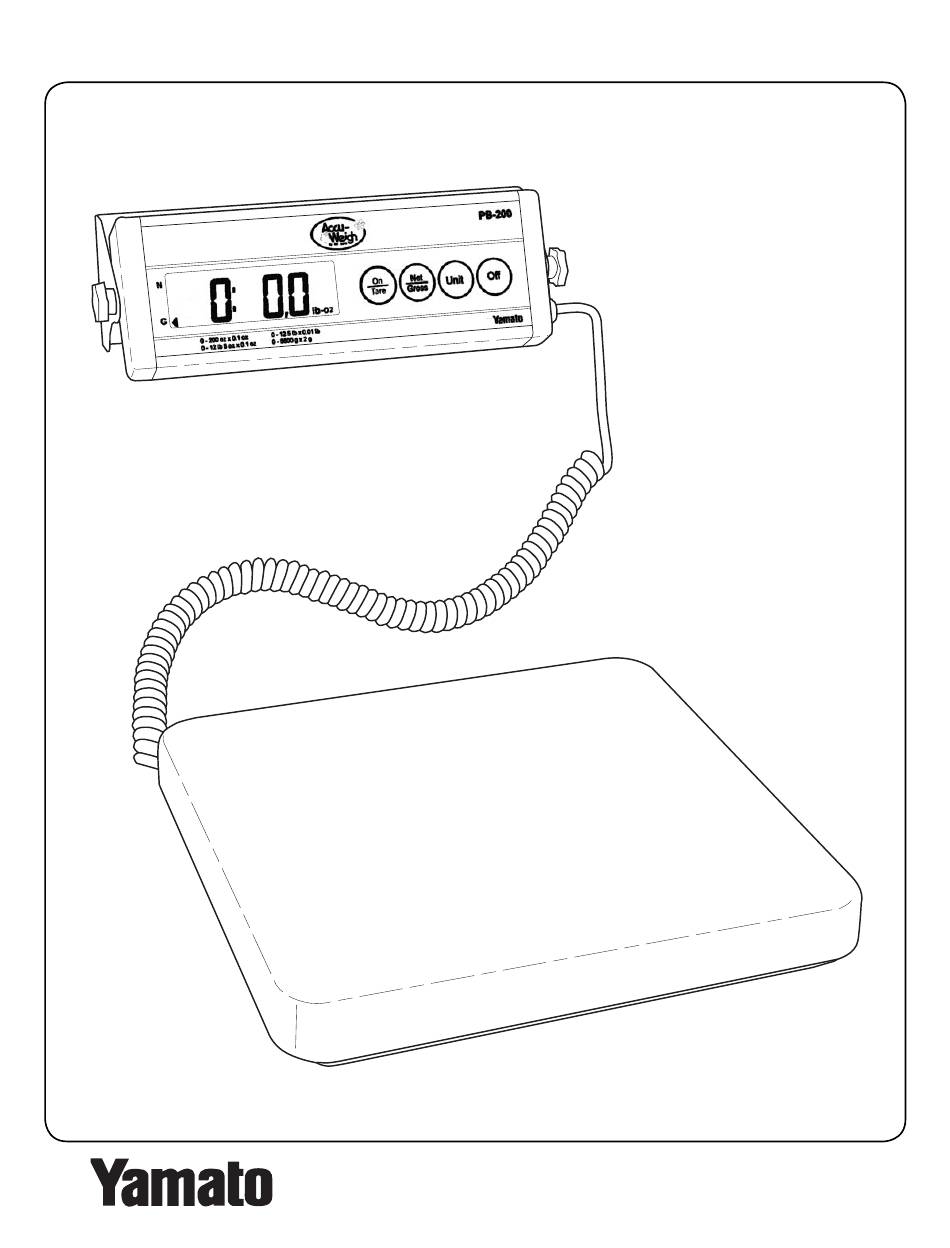

  • Page 1 PB-200 Technical Manual YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 YCO-1052-03-00...
  • Page 2: Table Of Contents

    PB-200 Technical Manual Table of Contents Introduction Set-up Procedures A. System Parameter Mode 1. Unit Enable\Disable 2. Auto-off Setting B. Calibration Mode III. Troubleshooting IV. Wiring Diagram Parts List SAFETY INSTRUCTIONS Before using the scale, carefully read, understand and follow the “Safety Instructions” described in this manual. Observe the advice given in the “Operations”...
  • Page 3: Introduction

    5696 g The PB-200 contains a 6-AA rechargable battery pack good for up to eight hours of con tin u ous use. It takes about fourteen hours to recharge the battery pack with the AC adaptor. The scale may be operated while the batteries are recharging.
  • Page 4 PB-200 Technical Manual II Set-up Procedures II.A System Parameter Mode II.A.1 Unit Enable\Disable (continued) 6. Toggle be tween on and off to enable or disable the selected unit mode by pressing the key. 7. When the desired state is displayed, press the key to return to the unit mode selection display.
  • Page 5: Auto-Off Setting

    PB-200 Technical Manual II Set-up Procedures II.A System Parameter Mode II.A.2 Auto-off Setting 1. With the scale on, press and hold the key until the display shows “Set”. 2. Release the key. The display will now show “Unit”. 3. Press the key once.
  • Page 6: Calibration Mode

    PB-200 Technical Manual II Set-up Procedures II.B Calibration Mode 1. With the scale off, hold down the key while pressing the key three times. Release the key. The scale should be displaying the internal counts. 2. Press the key to zero the counts.
  • Page 7: Troubleshooting

    PB-200 Technical Manual III Troubleshooting Problem Possible Cause Solution The scale will not power on. Batteries dead or incorrectly Test batteries. Reinstall if installed. needed. AC adapter loose or mal func - Reseat adapter. Replace if tion ing. needed. CPU board malfunction.
  • Page 8: Wiring Diagram

    PB-200 Technical Manual IV Wiring Diagram YCO-1052-03-00...
  • Page 9: Parts List

    PB-200 Technical Manual V Parts List YCO-1052-03-00...
  • Page 10 PB-200 Technical Manual V Parts List ITEM PART NUMBER DESCRIPTION CHA-1585-200110 Keypad CHA-1585-200100 Front Mask Screw, Tapping, Pan Head, M3 x 10 End, Indicator, Left Housing, Indicator CHA-1585-200170 Knobs, Adjustment Holder, Indicator Rod, Retaining Jack, AC Adaptor End, Indicator, Right...
