OPERATION MANUAL
DP-5602

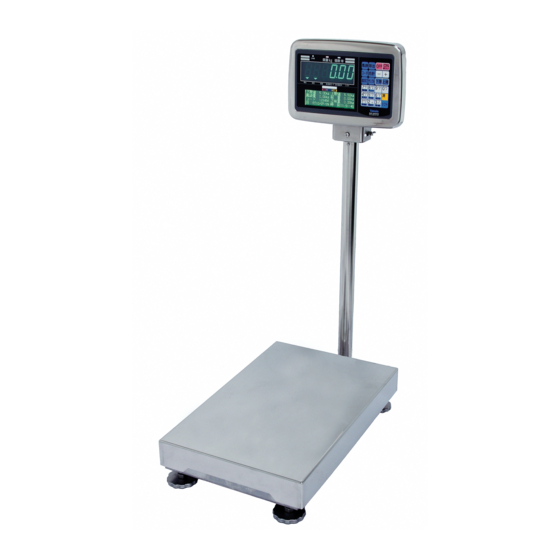

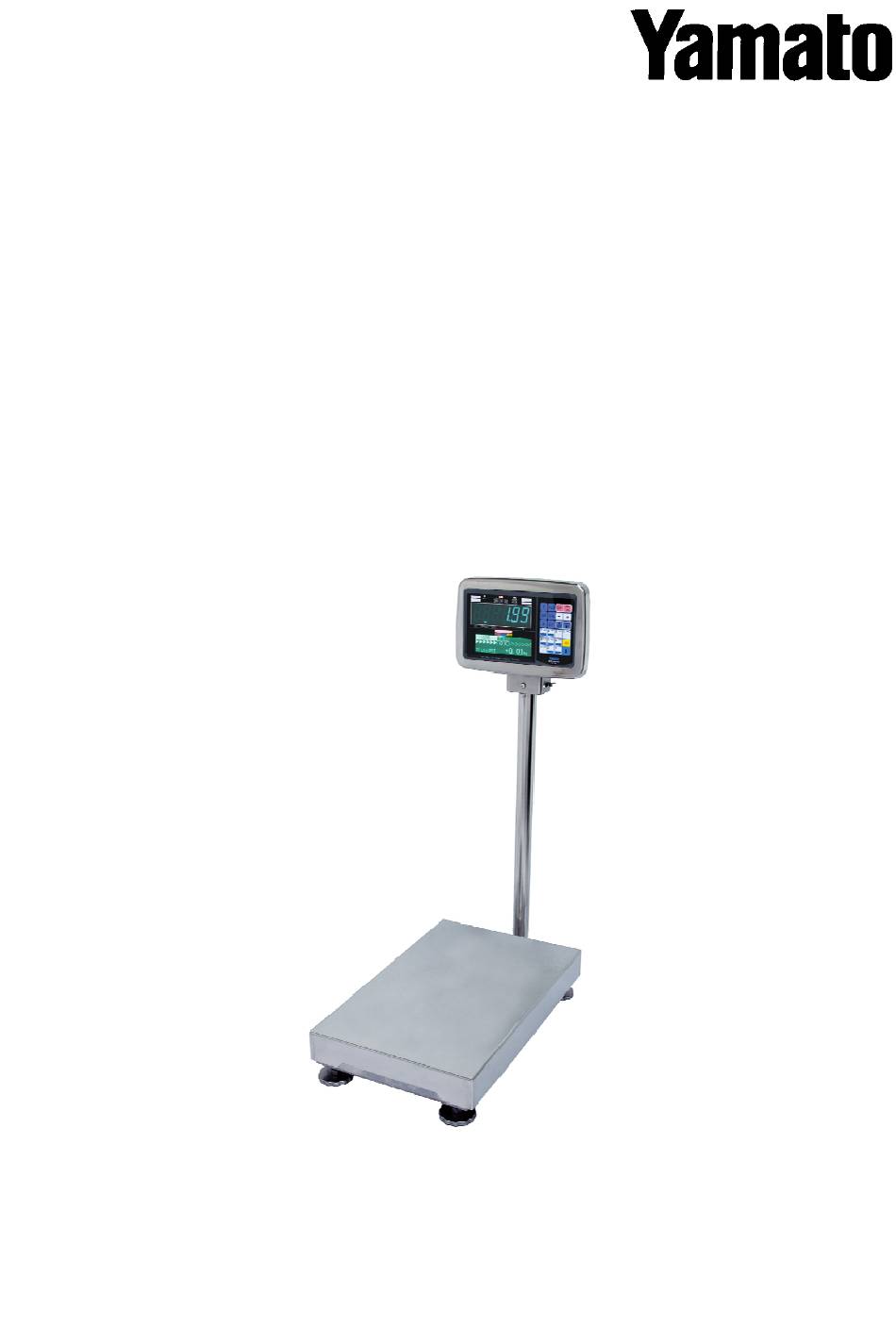

Digital Platform Scale:
EDI-562
Digital Indicator:
Read this manual and keep it handy.
Yamato Scale Co., Ltd.
EXPORT-1302

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the DP-5602 and is the answer not in the manual?

Questions and answers

Summary of Contents for Yamato DP-5602

  • Page 1 OPERATION MANUAL DP-5602 Digital Platform Scale: EDI-562 Digital Indicator: Read this manual and keep it handy. Yamato Scale Co., Ltd. EXPORT-1302...
  • Page 3: Table Of Contents

    Contents Page ●Safety precautions ······················································································ 1~2 ●Storage and disposition··················································································· 2 ●Daily checkup at start time ··············································································· 2 ●Here are some of the functions ········································································· 3 ●Preparation before use ················································································ 4~5 How to install the wall mount bracket ●Display and operation-key sections ································································ 6~9 Operation key section Display section 1.
  • Page 4 ●How to set the over/under judgment function ················································ 18~19 Over/under judgment function How to set the high and low limits How to clear the over/under judgment settings LCD display during the over/under judgment ●Shortage guidance display function ···························································· 20~22 Shortage guidance display function How to make the settings How to set the weight per work unit (individual weight) 1.
  • Page 5: Safety Precautions

    Safety Precautions Read carefully SAFETY PRECAUTIONS before use, and follow all the instructions. SAFETY PRECAUTIONS are designed for protecting users, other peoples and assets from physical and financial damages by your safety practices. This OPERATION MANUAL should be kept for the entire service life of the product. The hazardous levels and descriptions are defined as follows: Denotes where mishandling without compliance with this sign has a Danger...
  • Page 6: Storage And Disposition

    Warning : To avoid injury and damage: 1. Place an item on a platform securely. 2. Unplug a power cable after use. 3. Do not adjust the inside of the instrument after removing the platform cover. 4. Do not carry a scale by the indicator. Hold the platform base. Caution : To avoid damage: 1.
  • Page 7: Here Are Some Of The Functions

    Here are some of the functions The DP-5602 allows the user to easily carry out effective weighing and counting operations. Make use of this instrument according to your needs. This instrument has the following functions as standard. Function/Purpose Method Remarks Page ...
  • Page 8: Preparation Before Use

    Preparation before use ☆ Note the following points to properly use the instrument. Do not place the instrument in a Firmly plug the power cable location exposed to direct sunlight, into a receptacle of 100 V, Power cable (about 4 m or exposed to direct air-blow from 50/60 Hz power supply.
  • Page 9 How to install the wall mount bracket Wall or post Installation procedure <Caution> First, remove the 4 set screws  on the back of Since the 4 set screws  have been tightened to a the indicator. Then install the supplied 2 wall fixed torque at the factory, the enclosure is mount brackets ...
  • Page 10: Display And Operation-Key Sections

    Display and operation-key sections...
  • Page 11 Operation key section Turns on display or resets to zero. Turns the power OFF. Calls registered data, or registers data. Performs the quick tare subtraction. Manual addition or printout at addition. Subtraction or printout at subtraction. Totalizing or total printout. To set code number.
  • Page 12: Display Section

    Display section Main display: Fluorescent display tube Comes on in WT (weighing) mode Comes on in PCS (counting) mode. Comes on during tare subtraction Displays weight quantity Comes on during reset to zero Comes on when weighing is stable. Comes on in automatic mode. Comes on when the key is pressed.
  • Page 13 Items that can be displayed and their position The display screen is divided into eight sections as shown in Fig. 1. For the sections  to  in the first two lines, items will be assigned automatically according to the mode.
  • Page 14: How To Carry Out Measurement

    All lamps continuously come on until the instrument becomes key. If the same code stable. appears, consult with Yamato Scale’s dealer.  [Start measurement] The weight of the object appears. If the error code Place an object to be weighed...
  • Page 15: How To Carry Out Tare Subtraction

    How to carry out tare subtraction 1. One-touch tare ············ Simplified tare subtraction method using the key only Operating procedure Panel display Remarks  Place a container on the platform The weight of the container of the instrument. appears. (The following indication shows that the container weighs 1.00 kg.) ...
  • Page 16: How To Clear Tare Subtraction

    How to clear tare subtraction Operating procedure Panel display Remarks  Remove the container from the The panel shows the tare platform. weight with a minus sign.  “0.00” appears and the Press the key. NET lamp goes out. How to enter a code number <<Example>>...
  • Page 17: How To Add And Total

    How to add and total Use this function when you wish to add each measured value to the internal memory of the instrument and confirm the total cycle or the total weight. 1. How to carry out manual addition When a printer or other devices are connected to the system, refer to the respective instruction manuals.
  • Page 18 2-1 How to carry out automatic addition Operating procedure Panel display Remarks  The  sign appears Press the key and then above “AUTO” after the press the key.  sign lights above “SHIFT”.  [Addition] If the total value has Place an object to be weighed on exceeded the storage the platform of the instrument.
  • Page 19: How To Cancel Addition

    How to cancel addition The DP-5601 has a function to cancel the added data in the scale memory. There are two ways to cancel added data and the way can be chosen by parameter setting #086. The default setting is “”086 = 0”. Setting value Name Function...
  • Page 20: How To Use The Total Key

    How to use the TOTAL key Added measurement results (the total weight and the total number of measurement times) can be confirmed. Operating procedure Panel display Remarks  The total values Press the key. appear on the auxiliary Up to 4 digits of integer value display.
  • Page 21: How To Count The Number Of Samples

    How to count the number of samples Setting by sample weighing <<Example>> When the weight of 50 samples is 0.50 kg: Operating procedure Panel display Remarks  The main display Press the key. switches to the PCS display and the PCS lamp comes on.
  • Page 22: How To Set The Over/Under Judgment Function

    How to set the over/under judgment function Over/ Under judgment function Use this function when a target weight value or quantity is specified using the allowable lower and upper limits in order to determine that the samples fall within a proper range. No judgment Insufficient Acceptable...
  • Page 23: How To Clear The Over/Under Judgment Settings

    How to clear the over/under judgment settings Operating procedure Panel display Remarks  The setting value blinks. Press the key.  [Clearing the low limit] The setting value blinks. Press the key.  Press the key.  [Clearing the high limit] Similarly, press the keys in that order.
  • Page 24: Shortage Guidance Display Function

    Shortage guidance display function Shortage guidance display function With this function, the high and low limits as well as the weight per work unit are specified in advance in order to display the remaining number of items in work unit (insufficient number of items) that must be measured before being acceptable.
  • Page 25: How To Set The Work Unit

    2. Setting when the weight per work is known (setting through individual weight entry): << Example >> To set the individual weight to 0.04 kg: Operating procedure Panel display Remarks  Pressing the key proceeds to the Press the key. sample weighing setting.
  • Page 26: Lcd Display With The Shortage Guidance Display Function Enabled

    LCD display with the shortage guidance display function enabled The information shown on LCD depends on the setting value in the user parameter number 054. The default setting is “2.” To change the indication, make changes in the user parameter by referring to page 32. Note: When the setting of #54 is 0 or 1, the shortage guidance display function cannot be used.
  • Page 27: How To Set The Grading Function

    How to set the grading function Grading function This function indicates the ranking of measured items according to the weight values of each rank that have been stored to the instrument in advance. With the 1 to 11 limits settable, up to 10 ranks can be specified. Out of rank Rank 1 Rank 2...
  • Page 28: How To Clear The Rank Settings

    Operating procedure Panel display Remarks  [Rank 2 setting] The setting value blinks. Press the key. key: Proceeds to LIMIT 4 setting. Enter key: Returns to that order. LIMIT 2 setting. key:Changes RANK name.  [Rank 3 setting] To register the rank setting values, follow the Press the key.
  • Page 29: Advanced Ranking Function

    Advanced ranking function Subtractive ranking function * Do not use this feature for trade use. This function enables the ranking of an item as soon as the item is taken out of the platform of the instrument. How to enable the function Setting the user parameter number 092 to “1”...
  • Page 30: How To Enter An Item Name

    How to enter an item name <<Example>> To enter “GRAPEFRUIT” as the item name: Operating procedure Panel display Remarks  An item name can be Press the key and entered through the auxiliary then the display. key. The setting value blinks. ...
  • Page 31: How To Register The Entries

    How to register the entries The DP-5602 can individually or collectively save the tare weight, code number, high and low limits, individual weight, item name, and rank values in each call number. The call numbers No.1 to 100 are available, and 100 sets of data can be stored in total.
  • Page 32: How To Register The Entries Individually

    2. How to register the entries individually Method of registering only one item of settable data. <<Example>> To register a tare weight of 1.50 kg in the call number 24 (in PCS mode, the individual weight is also registered at the same time): Operating procedure Panel display Remarks...
  • Page 33: The Difference Between Collective Registration And Individual Registration

    The difference between collective registration and individual registration Registered data are saved in the memory for each call number. At the time of purchase, no data has been registered in the memory. <<Example>> To register data in the call number 70: - Collective registration: saves all preset data.
  • Page 34: How To Clear Registered Data

    Optional functions The DP-5602 has a variety of optional functions in order to increase the efficiency of daily weighing operation. Please utilize these functions according to the environment of use.
  • Page 35: How To Set Date And Time

    How to set date and time Note: The instrument has a built-in clock. Once the clock is set, it automatically starts ticking. Operating procedure Panel display Remarks  [Date setting] The date is expressed in day/month/year format of Press the key and then the Western calendar (2 key.
  • Page 36: How To Set User Parameters

    How to set user parameters The DP-5602 has 41 user parameters. You can change their settings according to the environment of use so as to achieve optimum operation of the instrument. When changing any of them, refer to the user parameter table on the next page.
  • Page 37: User Parameter List

    User Parameter List NO. ITEM VALUE DEFAULT FUNCTION REMARKS DISPLAY BRILLIANCE 000: VERY DIM Adjust the brilliance of the 001: display. 002: STANDARD 003: BRIGHT 004: VERY BRIGHT DIMMER TIMER 000: DIMMER OFF 001-006: PERIOD BEFORE RETURN TO BRILLIANCE 00 UPPER AND LOWER LIMIT 000: NO BEEP...
  • Page 38 NO. ITEM VALUE DEFAULT FUNCTION REMARKS ITEMIZED TOTAL & GRAND 000: ITEMIZED TOTAL NOT AVAILABLE VALID ONLY TOTAL 001: ITEMIZED TOTAL AVAILABLE (AT #59=001) CONNECTION TO 002: GRAND TOTAL AVAILABLE PRINTER JPS-508. 003: GRAND TOTAL, MAX, MIN, AVERAGE AND PRINT RANGE ARE EFFECTIVE GROSS CALCULATION 000:...
  • Page 39: Error Code

    Error code Panel display Conditions that trigger the error code Corrective action When there are any objects placed on the platform of the instrument, pressing key to turn ON the display may Remove the object from the generate this code. platform and press the key.
  • Page 40 Panel display Conditions that trigger the error code Corrective action Check the connector <When the optional RS232C is in connection. use> This code appears when connected Press the key to reset the equipment is not ready for receiving a error and then restart signal.
  • Page 41 Panel display Conditions that trigger the error code Corrective action Check the specifications/status of the instrument. Make the <When the optional RS232C is in instrument ready for tare use> subtraction and then transmit This code appears when the command. instrument received tare subtraction command, but is not ready...
  • Page 42: Specifications

    Specifications Model : DP-5602 Platform : BW-302 Indicator : EDI-562 Weighing system : Strain gauze load cell Weighing capacity : 3 kg to 2,000 kg Platform dimension : Refer to “Capacity & Platform size” list Display tube Main display : 7-segmented 6 digit Fluorescent tube Character size : 32H x 14.6W (mm)
  • Page 43 Clear data entry or tare Change of function on keys Feed the print paper (with key) for JPS-508. Changeover between automatic and manual (with key). To set date (with key). To set time (with key). To set item name (with key).
  • Page 44: Outline View Drawing

    Outline view drawing Capacity & Platform Size (Model: BW-302) (Unit: mm) Platform Size Desk-top Small Medium Ex-Medium Large Extra Large Capacity (kg) 1200 1500 1200 2000 1200 1000 1200 80,+0~10 112,+0~20 148,+0~20 236,+0~30 236,+0~50 246,+0~50 1070 1070 φ38 φ70 φ70 φ75 φ75 φ75...
  • Page 45 D e sk-t op Typ e S e pa rat e Stan d Typ e...
