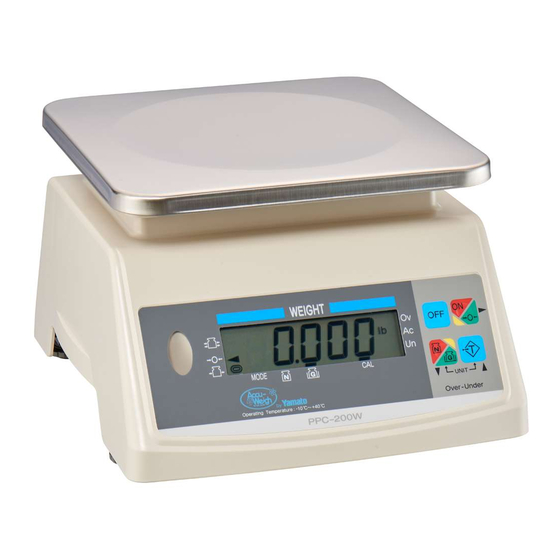

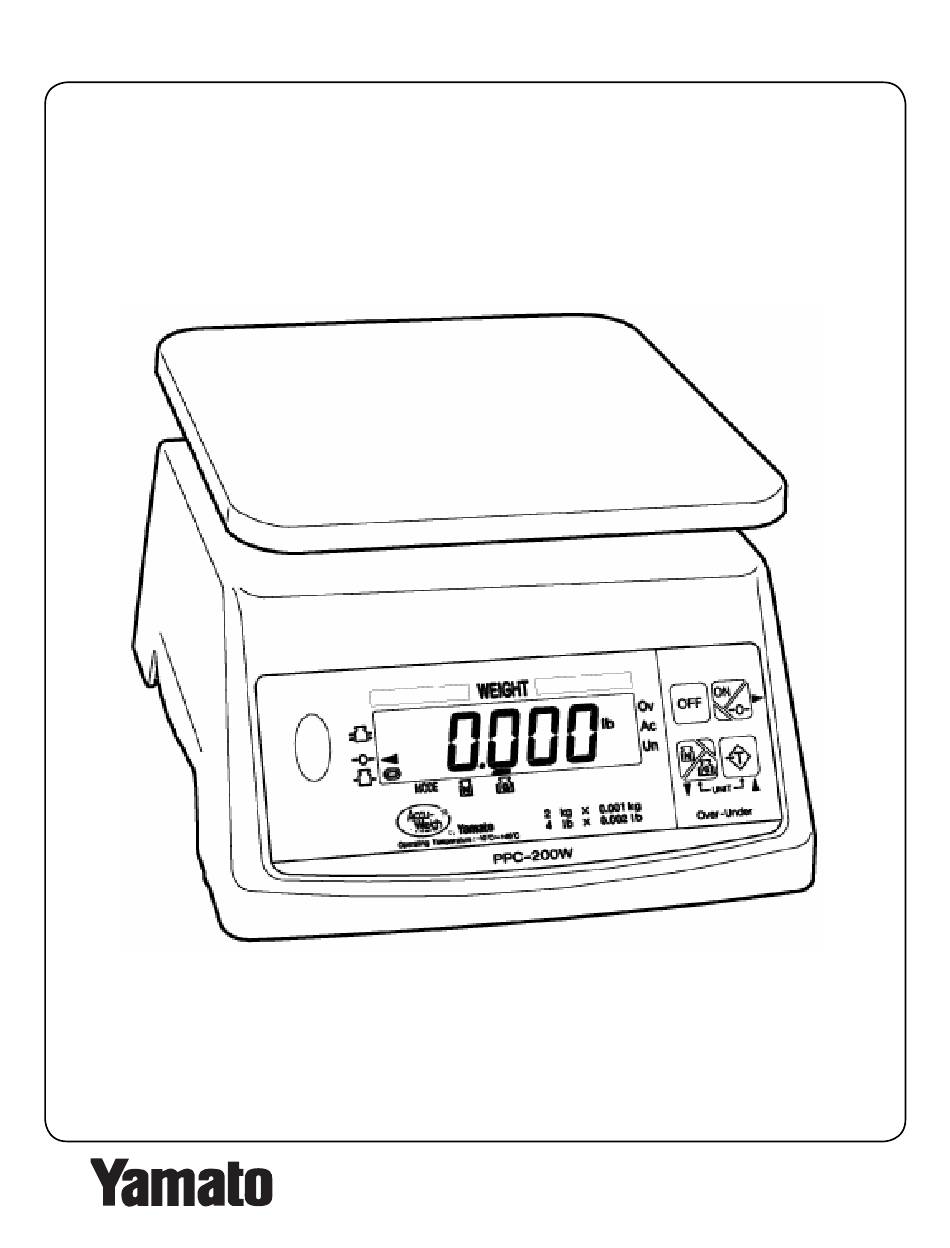

- Page 1 PPC-200W Technical Manual YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 YCO-1049-02-03...
-
Page 2: Table Of Contents
PPC-200W Technical Manual Table of Contents Introduction Set-up Procedures A. User Mode B. Test Mode C. System Parameter Mode D. Calibration Mode E. Factory Parameter Mode III. Troubleshooting IV. Parameter Lists A. User Parameters B. System Parameters C. Factory Parameters D. -
Page 3: Introduction
Technical Manual I Introduction The PPC-200W is available in four capacities. It displays units of either kilograms and one of the fol- low ing three: continuous pounds, continuous ounces, or pounds and ounces. The specifi cations for each capacity are in the following table. -
Page 4: Test Mode
PPC-200W Technical Manual I Set-Up Procedures II.A User Mode (con’t) - decrease value by ten 4. Press to save changes and press to exit User parameter. II Set-up Procedures II.B Test Mode 1. Re move the scale plat form. 2. Re move the fi ve screws and one lead wire seal screw from the un der car riage of the scale. -
Page 5: System Parameter Mode
PPC-200W Technical Manual II Set-up Procedures II.C System Parameter Mode 1. Enter Test Mode (see section II.A for details.) 2. Press to enter System Parameter Mode. The scale will indicate a keyword fol lowed by it’s value. 3. To select the desired keyword, use the keys as follows:... -
Page 6: Calibration Mode
PPC-200W Technical Manual II Set-up Procedures II.C System Parameter Mode 6. Press to save a change and to progess to the next keyword. 7. Press to return to test mode, or press then to return to normal operating mode. II.D Calibration Mode 1. -
Page 7: Factory Parameter Mode
PPC-200W Technical Manual II Set-up Procedures II.D Calibration Mode 8. Press to save the new calibration points and return to Test Mode. Internal counts should read 20000 +/- 3. 9. Press at any time in the span-adjustment to exit to Test Mode without saving any new calibration points. -
Page 8: Troubleshooting
PPC-200W Technical Manual III Troubleshooting Problem Possible Cause Solution The scale will not power on. Batteries dead or incorrectly Test batteries. Reinstall if installed. needed. AC adapter loose or mal func - Reseat adapter. Replace if tion ing. needed. CPU board malfunction. -
Page 9: Parameter Lists
PPC-200W Technical Manual IV Parameter Lists IV.A User Parameters Function Description Word Value Auto-off timer 000 Disables auto-off. 001~240 Number of minutes unused to activate auto-off. Display hold timer 000 No display hold for changes less than four divisions. 001~030 Display hold duration, in seconds, for changes less than four divisions. -
Page 10: System Parameters
PPC-200W Technical Manual IV Parameter Lists IV.B System Parameters Function Description Word Value System ID 018 Do not change. Gravity compensation 000 No compensation. 001~016 Compensation for a specifi ed area (Japan only.) 017~150 Acceleration due to gravity formula, (mm/s2 )-9700. - Page 11 PPC-200W Technical Manual IV Parameter Lists IV.C Factory Parameters Function Description Word Location of decimal point 000 0 (No decimal point.) 001 0.0 002 0.00 003 0.000 004 0.0000 Type of decimal point 000 Period (.) 001 Comma (,) Weighing unit 000 No unit.
- Page 12 PPC-200W Technical Manual IV Parameter Lists IV.C Factory Parameters Function Description Word Tare function 000 No tare function. 001 One-time tare. 002 Consecutive tare. Zero reset under tare operation 000 Zero reset enabled. 001 Zero reset disabled. Power off with ON key 000 ON key disabled for power off.
-
Page 13: Standard Factory Parameter Settings
PPC-200W Technical Manual IV Parameter Lists IV.D Standard Factory Parameter Settings Key Factory Parameter Decimal Pound Word 2 kg 4 kg 10 kg 20 kg Scale Mode Multi-increments Weighing capacity base value Weighing capacity index value Increment for lighter range... - Page 14 PPC-200W Technical Manual IV Parameter Lists IV.D Standard Factory Parameter Settings Key Factory Parameter Continuous Ounce Word 2 kg 4 kg 10 kg 20 kg Scale Mode Multi-increments Weighing capacity base value Weighing capacity index value Increment for lighter range...
- Page 15 PPC-200W Technical Manual IV Parameter Lists IV.D Standard Factory Parameter Settings Key Factory Parameter Pound and Ounce Word 2 kg 4 kg 10 kg 20 kg Scale Mode Multi-increments Weighing capacity base value Weighing capacity index value Increment for lighter range...
-
Page 16: Wiring Diagram
PPC-200W Technical Manual V Wiring Diagram Note: The PPC-200W is not washdown with this op tion. Note: The PPC-200W is not washdown with this op tion. YCO-1049-02-03... -
Page 17: Parts List
PPC-200W Technical Manual VI Parts List YCO-1049-02-03... - Page 18 PPC-200W Technical Manual VI Parts List ITEM PART NUMBER DESCRIPTION Hex Bolt, M4 x 30, 2 kg/4 kg Hex Bolt, M5 x 30, 10 kg/20 kg Hex Head Screw, M3 x 12, 2 kg/4 kg Hex Head Screw, M3 x 12, 10 kg/20 kg...
Need help?
Do you have a question about the PPC-200W and is the answer not in the manual?
Questions and answers
New scale with new batteries installed. Turn scale on and the scale is showing ----HH ? How can I get this message to reset ?
To reset the ----HH message on the Yamato PPC-200W scale:
1. Remove any weight or object on or under the platform.
2. Ensure the platform is properly installed.
3. Press the key to zero the scale.
If the message persists, turn the scale off and then back on. If the issue continues, the scale may need service.
This answer is automatically generated
