PPC-300WP
www.YamatoCorp.com
YAMATO CORPORATION
1775 S. Murray Blvd.
Colorado Springs, CO 80916 USA
Tel (719) 591-1500 Fax (719) 591-1045
Operation Manual
YAMATO TECH CORPORATION
#112-19425 Langley By-Pass
Surrey, B.C. V3S 6K1
Tel (604) 533-2338 Fax (604) 533-0827
NTEP CC 08-041
Canada
YCO-1127-12-08

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the PPC-300WP and is the answer not in the manual?

Questions and answers

Related Manuals for Yamato PPC-300WP

Summary of Contents for Yamato PPC-300WP

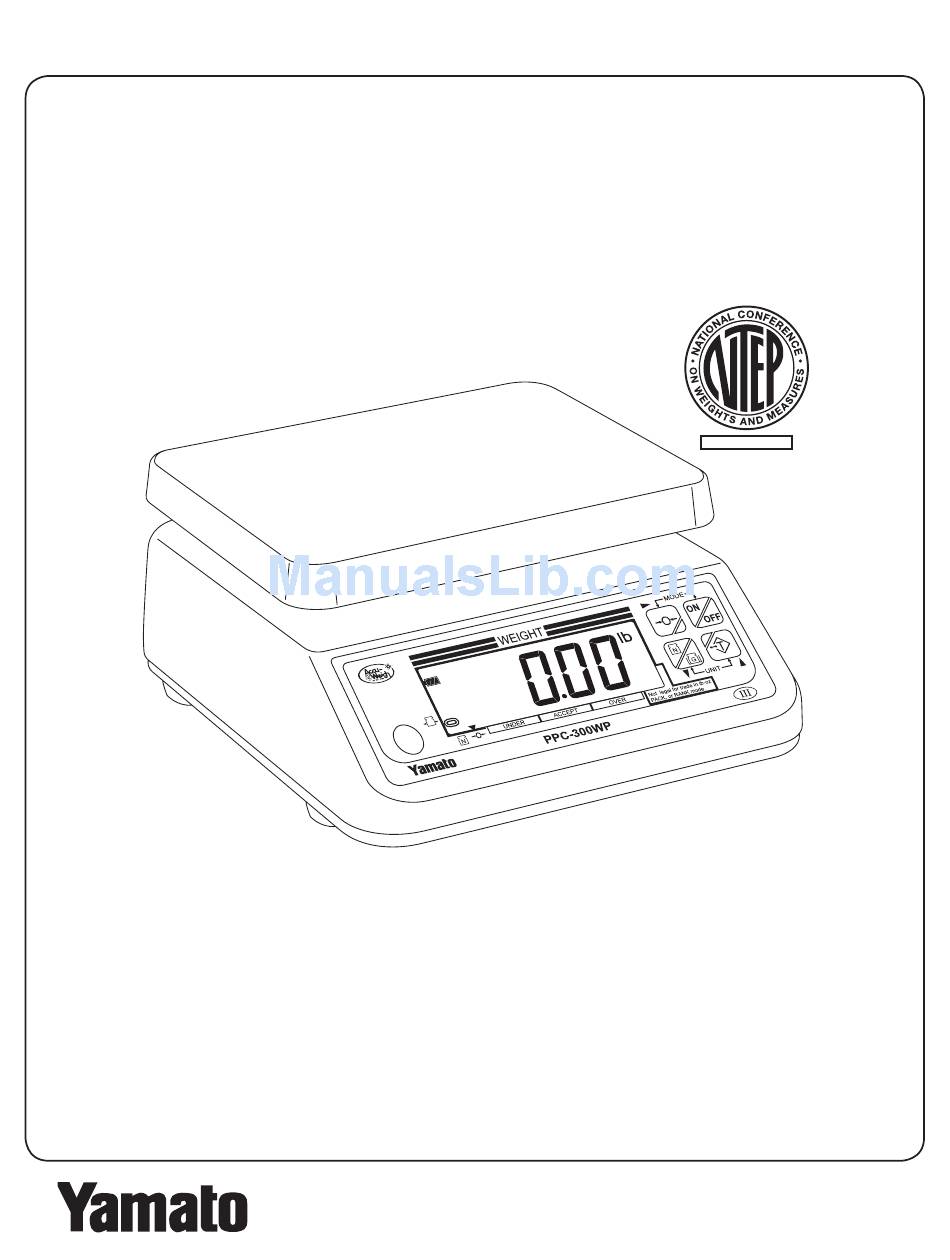

  • Page 1 PPC-300WP Operation Manual NTEP CC 08-041 YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 www.YamatoCorp.com...

  • Page 3: Table Of Contents

    PPC-300WP Operation Manual Table of Contents Introduction Conventions Safety Precautions Description Name and Function of Parts Specifications III. Setup Installing the Batteries Installing the AC Adaptor Leveling the Scale Cleaning the Lower Diaphragm IV. Using the Scale Turning the Scale On and Off...

  • Page 4: Introduction

    Operation Manual I Introduction Welcome to your new Yamato scale. This operation manual provides you with instructions on how to setup, use and care for the PPC-300WP. More advanced technical specifications, calibration instruc- tions, configuration information and a parts list are available in the PPC-300WP Technical Manual.
  • Page 5 PPC-300WP Operation Manual I Introduction Danger - To Avoid Fire and Electric Shock Do not operate the scale if there is smoke or a burnt smell coming from the scale. Remove the batteries or unplug the AC adaptor immediately. After making sure there is no danger, consult your dealer.
  • Page 6 I Introduction To keep the scale working efficiently The PPC-300WP is rated IP68 (waterproof) when it has been closed by Yamato authorized tech- nicians using Yamato approved equipment and procedures. When closed by other technicians or methods, the PPC-300WP is only rated IP65 (washdown).

  • Page 7: Description

    PPC-300WP Operation Manual II Description Name and Function of Parts 12 13 1) ON/OFF Key Press to turn the power on or to enter function mode. Hold to turn power off. 2) Zero Key Press to zero the display, select a digit, select the next parameter, or store a setting.

  • Page 8: Specifications

    Housing: Upper - 304 Stainless Steel Lower - ABS resin Enclosure Rating: IP68 when sealed by Yamato authorized technicians, IP65 otherwise. Optional equipment: AC adaptor (use voids watertight seal) Power supply: 6 VDC - four “D” size batteries or optional AC adaptor Consumption: 0.07 W (max.)
  • Page 9 PPC-300WP Operation Manual II Description Specifications Dimensions: YCO-1127-12-08...

  • Page 10: Setup

    PPC-300WP Operation Manual III Setup Caution Place the scale on its side to access the undercarriage. Do not turn the scale upside down. This could damage the load cell. Do not use the AC adapter when batteries are installed in the scale.

  • Page 11: Cleaning The Lower Diaphragm

    PPC-300WP Operation Manual III Setup Caution Place the scale on its side to access the undercarriage. Do not turn the scale upside down. This could damage the load cell. Do not puncture or tear the lower diaphragm. This will void the watertight seal.

  • Page 12: Using The Scale

    PPC-300WP Operation Manual IV Using the Scale Turning the Scale On and Off Remove everything from the weighing platform and press the key to turn the scale on. The display will briefly flash all segments of the LCD. After approximately five seconds, the display will stop flash- ing and automatically set to zero.

  • Page 13: Net Weighing - Tare Operation

    PPC-300WP Operation Manual IV Using the Scale Net Weighing - Tare Operation Net weighing displays the weight of an item without the weight of its container. The weight of the con- tainer is tared off. Caution The total gross weight should never exceed the capacity of the scale. This can damage the load cell.

  • Page 14: Batch Weighing

    PPC-300WP Operation Manual IV Using the Scale Batch Weighing Batch weighing displays the weight of several different combined items in succession. An example is weighing each of the different ingredients in a pizza. Caution The total gross weight should never exceed the capacity of the scale. This can damage the load cell.

  • Page 15: Selectable Functions

    PPC-300WP Operation Manual IV Using the Scale Selectable Functions The PPC-300 family of scales offer three selectable functions to assist you with your weighing needs. These functions are packing, checkweighing and grading. Each of these functions are programmable by the operator to give you the flexibility to adapt the PPC-300 to your processes. User setup param- eter 01 controls which, if any, of these functions is enabled.

  • Page 16: Packing Function

    PPC-300WP Operation Manual IV Using the Scale Packing Function The packing function is ideal for filling containers. The numeric display indicates the weight that needs to be added or removed from the platform to reach the target weight. The bar chart gives a graphical representation of the loaded weight in relationship to the target weight for quick reference.
  • Page 17 PPC-300WP Operation Manual IV Using the Scale Packing Function Once the packing function is enabled, the target weight and allowable range need to be setup. Setup 1. With the scale on and the platform empty, press the key for one second.
  • Page 18 PPC-300WP Operation Manual IV Using the Scale Packing Function This is an example of how the packing function operates once it has been enabled and setup. The set- up for this example has a target weight of 10.00 lb and a range of 0.25 lb. Automatic tare is enabled, and the scale is set to flash when a weight within the acceptable weight range is loaded.

  • Page 19: Checkweighing Function

    PPC-300WP Operation Manual IV Using the Scale Checkweighing Function The checkweighing function uses a lower limit and upper limit to establish an acceptable weight range for portioning, quality control and filling while displaying the weight loaded on the platform. The bar chart gives a graphical representation of the status of the loaded weight in relationship to the upper and lower limits for quick reference.
  • Page 20 PPC-300WP Operation Manual IV Using the Scale Checkweighing Function Once the checkweighing function is enabled, the lower limit and upper limit need to be setup. Setup 1. With the scale on and the platform empty, press the key for one second.
  • Page 21 PPC-300WP Operation Manual IV Using the Scale Checkweighing Function This is an example of how the checkweighing function operates once it has been enabled and setup. The setup for this example has a lower limit of 10.00 lb and an upper limit of 10.25 lb. The scale is set to flash when a weight within the acceptable weight range is loaded.

  • Page 22: Grading Function

    PPC-300WP Operation Manual IV Using the Scale Grading Function The grading function allows you to defined up to 15 continuous weight grades and displays the grade of the current load. This facilitates quick, error free sorting by the operator without a need to consult or memorize grade charts.
  • Page 23 PPC-300WP Operation Manual IV Using the Scale Grading Function Once the grading function is enabled, the grade weights need to be setup. Each weight entered is the lowest acceptable weight for that grade. This example will setup three grades. The first is from 8.00 to 9.99 lb.
  • Page 24 PPC-300WP Operation Manual IV Using the Scale Grading Function This is an example of how the grading function operates once it has been enabled and setup. The setup for this example has grades of 8.00 to 9.99 lb, 10.00 to 11.99 lb, and 12.00 to 18.00 lb. The scale is set to display real time grade values.

  • Page 25: User Parameters

    003: Grading enabled. Number of grades 000: Grading suspended. 001 - 0015: 1 - 15 grades. Buzzer 000: Disabled. 001 - 004: PPC-300WP only. Grade stability 000: Real time grade display. 001: Grade displayed at stable reading. Auto-off timer 000: Disabled.
  • Page 26 001 and 004 will cause the display in the grading function to flash when any weight above or equal to the first, lowest grade weight is detected. Setting 005 is only appicable to the PPC-300WP. 21 - Vibration Compensation Environments that experience "noise"...

  • Page 27: Troubleshooting

    PPC-300WP Operation Manual VI Troubleshooting The scale automatically detects several errors. The following table describes the various errors that can be encountered, and provide user-level corrective actions. If these actions fail to correct the error, please contact a qualified scale technician.
  • Page 28 PPC-300WP Operation Manual VI Troubleshooting Display Condition Action Overload - there is too much Remove weight from the weight on the scale platform. scale platform until the load is within the scale capacity. Negative weight reading Replace the stainless greater than five divisions.
  • Page 29 PPC-300WP Operation Manual YCO-1127-12-08...
  • Page 30 YAMATO CORPORATION YAMATO TECH CORPORATION 1775 S. Murray Blvd. #112-19425 Langley By-Pass Colorado Springs, CO 80916 USA Surrey, B.C. V3S 6K1 Canada www.YamatoCorp.com Tel (719) 591-1500 Fax (719) 591-1045 Tel (604) 533-2338 Fax (604) 533-0827 YCO-1127-12-08...
