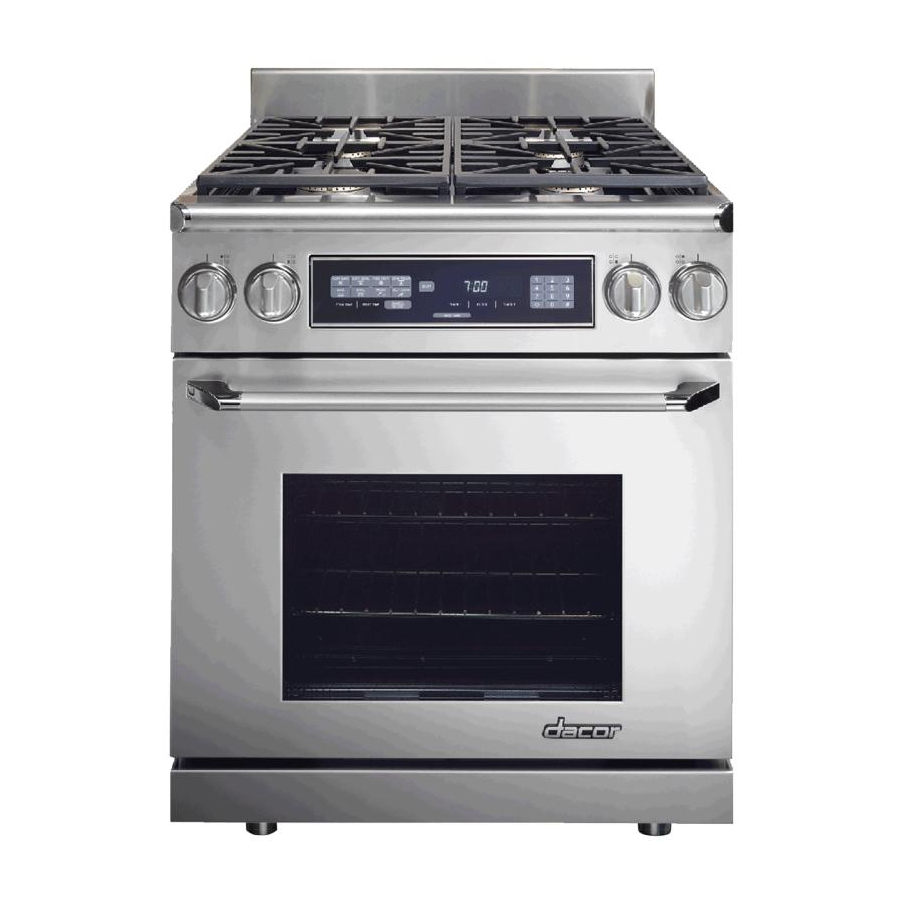

Dacor Epicure ER30D Installation Instructions Manual
Hide thumbs
Also See for Epicure ER30D:
- Technical manual (49 pages) ,
- Use and care manual (36 pages) ,
- Installation instructions manual (24 pages)
Table of Contents
Advertisement
Quick Links
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dacor Epicure ER30D
Summary of Contents for Dacor Epicure ER30D
-
Page 1: Installation Instructions
Installation Instructions Epicure Range ® For Use with Models: ER30D, ER30D-C, ER30DSR SAVE THESE INSTRUCTIONS THIS APPLIANCE HAS BEEN TESTED IN ACCORDANCE WITH THE LATEST EDITION OF ANSI Z21.1 STANDARD FOR HOUSEHOLD GAS APPLIANCES. Part No. 102187 Rev. C... - Page 2 All specifications subject to change without notice. Dacor assumes no liability for changes to specifications. © 2007 Dacor, all rights reserved.
-
Page 3: Table Of Contents
• From a neighbors phone, immediately call the gas ® Always contact the Dacor Customer Service Team about supplier. Follow the gas supplier’s instructions. problems and conditions that you do not understand. •... -
Page 4: Important Safety Instructions
Important Safety Instructions To reduce the risk of fire, explosion, electric shock, serious injury or death when installing or using this appliance, follow basic safety precautions, including the following: WARNING Read the accompanying use and care manual before operating this appliance. Keep packaging materials away from children. -
Page 5: Customer Service Information
Customer Service Information Model Identification If the unit requires service or you have questions or problems with installation, contact your Dacor dealer ER30DSR-C-SCH/NG/H or the Dacor Customer Service Team. Dacor Customer Service Team SIZE (in inches) 1-800-793-0093 (U.S.A. -
Page 6: Planning The Installation
Planning the Installation Electrical Requirements - WARNING Freestanding Units for Use in Canada IMPORTANT: Observe all governing codes and ordinances during planning and installation. Contact your local building department for further information. • It is the owner’s responsibility to ensure that the required Electrical Requirements 4 wire electrical outlet is installed by a licensed electrician as specified below prior to range installation. -
Page 7: Product Dimensions
Planning the Installation Product Dimensions All tolerances: +1/16”, -0 (+1.6 mm, -0) Back of Range GAS - ELECTRICAL ACCESS DIMENSIONS Inlet Range electrical access, cover removed 4 7/8” 21 3/4” 8 5/8” 10 3/16” 7/8”* (124 mm) (552 mm) (219 mm) (259 mm) (22 mm) * When using an appliance cord, the hole size must be increased... - Page 8 Planning the Installation Product Dimensions (continued) All tolerances: +1/16”, -0 (+1.6 mm, -0) 45 9/16” (1157mm) 28 1/8” (714mm) 26 5/8” (676mm) 25 5/8” (651mm) 23 9/16” (598mm) Rear of Front Panel 23” (584mm) to Back of Chassis 37 7/8” (962mm) 35 3/4”...
-
Page 9: Cabinet Layout
• To reduce the risk of personal injury and to reduce accumulated smoke in the room, Dacor strongly recommends Gas and Electrical Service installing a range hood. A range hood should project horizontally a minimum of five (5) inches beyond the face of •... -
Page 10: Installation Instructions
Planning the Installation 10” Min. 10” Min. Non-Combustible 1/4” Min. 7/16” (254mm) (254mm) Rear Wall Rear Wall (11mm) (6mm) Both Sides Both Sides 2 13/16” (71mm) 27 7/8” (708mm) ERV Opening 29 1/4” (743mm) Countertop 29 1/4” (743mm) 23 9/16” Opening Countertop (598mm) - Page 11 Installation Instructions Level and Adjust the Range Height Changing the Backguard (Models ER30D and ER30D-C) Raise or lower the range until it is the same height as the counter-top. To adjust the height, turn the foot on the bottom Models ER30D and ER30D-C come standard with a 3” backguard of each leg as shown below.
- Page 12 Installation Instructions Installing the ERV Trim Kit (Model ER30DSR) Close the door. Remove and retain the two screws from the back of the kick panel as shown below. Pull the kick panel To install a raised vent with self-rimming model ER30DSR, you free from the front of the unit.
- Page 13 Installation Instructions 3 Inch Side Panel Kit Installation for Model With the door closed, reattach the kick panel to the range by snapping the ball studs on the back of the panel into the ER30DSR (continued) holes on the front panel of the range. Locate the center mounting hole.
-
Page 14: Electrical Connection
To make the range easier to move, remove the door(s) to reduce • Improper connection of the electrical wiring can cause an weight. electric shock hazard and damage the appliance. Dacor Open the door to its fully opened position. is not responsible for damages resulting from improper installation. - Page 15 Installation Instructions Installation Instructions Connecting the Wiring to the Range Refer to the range rating label (see page 3) for power requirements. L1 Terminal There are four possible ways to wire the range: • 4 Wire Conduit Neutral Terminal • 3 Wire Conduit (where local codes permit) Jumper Link •...
-
Page 16: Warning
Installation Instructions Electrical Connection (cont.) Connecting the Conduit to the House Connection to Junction Electrical Junction Box power supply WARNING • Do not ground the appliance to a gas supply pipe or hot water pipe. • Do not turn on power to the appliance until the range is permanently grounded. - Page 17 Installation Instructions Junction Connection to Separate No. 10 (minimum power supply copper grounding wire Fasten clamp tightly on pipe Wire Nut, 4 Places Connection to appliance (Page 13) 4 Wire Connection Conduit Junction Box Connection with External Ground Meter No. 4 copper wire Metal Water Pipe...
-
Page 18: Warning
Installation Instructions Electrical Connection (cont.) Appliance Wire Connections - Where Local Code Permits Slide the end of the appliance cord into the strain relief from WARNING the bottom of the box Do not connect the green appliance wire to the neutral (white) Connect the white (neutral) wire to the neutral terminal in the supply wire unless local building codes permit. -
Page 19: Gas Supply Connection
Installation Instructions Gas Supply Connection WARNING • Make sure the gas supply valve is off and that the power to the range is turned off at the circuit breaker or fuse box Bare Wire prior to connecting the gas line. Connections •... -
Page 20: Final Installation
Installation Instructions Final Installation Peel the protective plastic coating off of the range, including the range door. Adjust the range legs to the desired height. Carefully slide the range into position in the cutout. The rear anti-tip leg should engage the anti-tip bracket. Re-installing the Oven Door(s) WARNING To avoid personal injury or damage to the door from it falling off... -
Page 21: Installing The Burner Components
Installation Instructions Installing the Burner Components WARNING Never attempt to operate the cooktop section of the range with any of the burner rings, burner caps or grates removed. Spill Tray • Remove the burner rings, burner caps and grates from their shipping packages. -
Page 22: Verifying Proper Operation
Has the warranty been Customer Service Team at (800) 793-0093. activated on-line or the warranty card been filled out Do not attempt to repair the appliance yourself. Dacor is not completely and mailed? responsible for service required to correct a faulty installation. - Page 24 Dacor ● 1440 Bridge Gate Drive, Diamond Bar, CA 91765 ● Tel: (800) 793-0093 ● FAX: (626) 403-3130 ● www.Dacor.com...
