M U L T I M E D I A A U D I O A N D V I S U A L

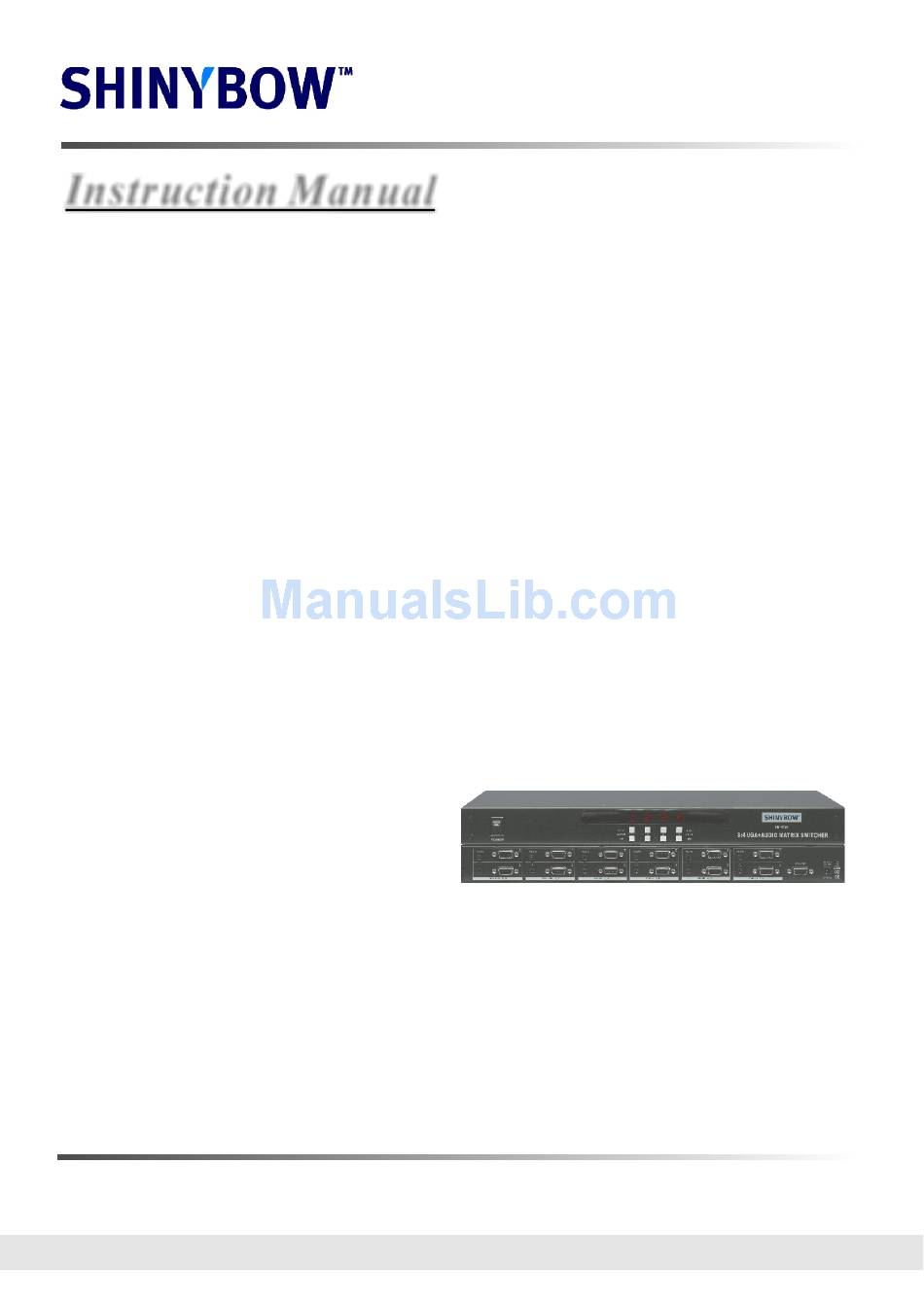

Instruction Manual
8x4 VGA-AUDIO Matrix Switcher Series
Thank you for purchasing the SB-4184 VGA-AUDIO Matrix Switcher. You will find this unit easy to install
and highly reliable but it is essential that you read this manual throughly before attempting to use
8x4 VGA-Audio Matrix Switcher.
8x4 VGA-AUDIO MATRIX SWITCHER
8x4 VGA-AUDIO MATRIX SWITCHER
MODEL : SB-4184
MODEL : SB-4184
Part No.: ENCL004184A00A0
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-4184
Summary of Contents for Shinybow USA SB-4184
- Page 1 8x4 VGA-AUDIO MATRIX SWITCHER 8x4 VGA-AUDIO Matrix Switcher Series Thank you for purchasing the SB-4184 VGA-AUDIO Matrix Switcher. You will find this unit easy to install and highly reliable but it is essential that you read this manual throughly before attempting to use 8x4 VGA-Audio Matrix Switcher.
-
Page 2: Safety Information
SAFETY INFORMATION Save the carton and packing material even if the equipment has arrived in good condition. Should you ever need to ship the unit, use only the original factory packing. Read all documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. -
Page 3: Table Of Contents
Please retain the original packing material should the need ever arise to return the unit. If you find any items are missing, contact your reseller or Shinybow immediately. Have the Model Number, Serial Number and Invoice available for reference when you call. -
Page 4: Front Panel
When not using the unit for a long period of time. Insure that the AC power cord is disconnected from the wall outlet. The AC wall outlet should be installed near to the unit and be easily accessible. Do not plug in or attempt to operate an obviously damaged unit. PAGE 4 SB-4184 INSTRUCTION & OPERATION MANUAL... -
Page 5: Rear Panel
VGA (RGBHV) Via 1x HD-15p connector OUTPUTS - 1~4 VGA-RGBHV PORTS Connect 4x VGA signal to 4x VGA Monitors or displays Note: via HD15P D-sub VGA cables. With 1x female D-Sub connector. OUTPUT 1, 2 OUTPUT 1, 2 PAGE 5 SB-4184 INSTRUCTION & OPERATION MANUAL... -
Page 6: Remote Control
Lastly, connect the AC to DC adaptor, connect the DC connector to the switcher first and then plug the adaptor into a functional AC outlet. PAGE 6 SB-4184 INSTRUCTION & OPERATION MANUAL... -
Page 7: Features & Specifications
DC12V / 1A~2A (consumption 880mA Max) Use Universal Switch Type 50/60Hz,100~230 VAC Shipping Weight : 2.45 Kgs / 4.08 lb As product improvements are continuous, specifications are subject to change and without notice. PAGE 7 SB-4184 INSTRUCTION & OPERATION MANUAL... -
Page 8: Rs232 Serial Interface
Not used RS232 The Shinybow switcher can be controlled via the RS-232 serial control port to allow for interfacing to a PC, or similar third party control system. The serial communication parameters are 9600 baud, 8 bit, No Parity and 1 stop bit - this is often referred to as 9600 8N1. -
Page 9: Rs232 Protocol Commands
Lastly, connect the AC to DC adaptor, connect the DC connector to the switcher first and then plug the adaptor into a functional AC outlet. PAGE 9 SB-4184 INSTRUCTION & OPERATION MANUAL... -
Page 10: Typical Application
- VGA (RGBHV), connector with HD-15p (D-Sub) AUDIO - Stereo Audio (AR/AL), Connector via OD3.5mm Ear phone Jack SB-4184 SUPPORT VGA EIGHT INPUTS MATRIX TO FOUR SWITCH OUTPUTS SUPPORT CONTROL IR & RS 232 INTERFACE SYSTEM PORTS. PAGE 10 SB-4184 INSTRUCTION & OPERATION MANUAL... -
Page 11: Limited Warranty
1 year from the date of purchase. Should this product, in SHINYBOW Technology,s opinion, Prove defective within this warranty period, SHINYBOW Technology, at its option, repair this product without charge, to whatever extent it shall deem necessary to restore said product to proper operation condition. - Page 12 M U L T I M E D I A A U D I O A N D V I S U A L w w w . s h i n y b o w . c o m...
