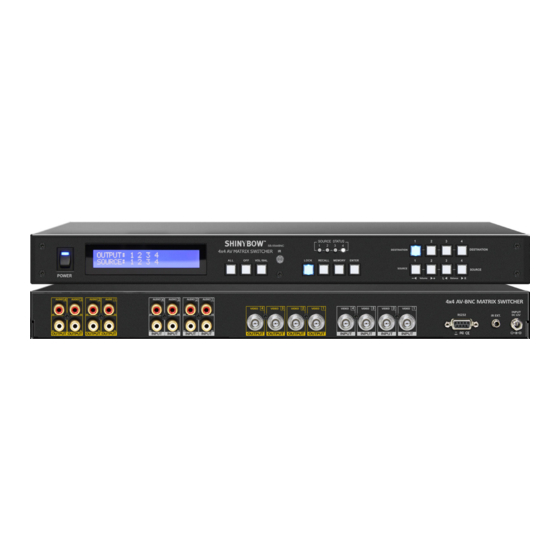

- Page 1 SB-5544BNC 4X4 Composite Video Matrix Routing Switcher w/ Stereo Audio (BNC)
-
Page 2: Safety Information
SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit. -
Page 3: Table Of Contents
Composite Video-BNC/Audio with adjustable volume & balance, matrix PSU if it is damaged. switching products on the market today. The SB-5544BNC is a true • Do not allow anything to rest on the power cabling or allow any matrix routing switcher for AV (Composite & Stereo Audio) signals with full weight to be placed upon it or any person walk on it. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • (4) Inputs to (4) Outputs A/V (Composite Video & Stereo Audio) Matrix Switcher • Input/Output signals for Composite Video (BNC) & Stereo Audio (AR/AL) • Higher video bandwidth 450MB each signal path • Front panel buttons for channel selection •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LED will illuminate blue to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” indicating all destinations have no video selected.
- Page 7 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - VOL / BAL ( Volume / Balance ): VOLUME To affect the volume on any Output, - Press VOL / BAL button once. - Select 1 THRU 4 on the Destination row, for the Output you wish to change. - Press VOLUME + or –...
-
Page 8: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug-park input connector. Please ensure that the plug-park used is of an DC Jack - Inner OD Ø 2.1mm (+) approved type and is of sufficient current carrying capacity with Outside OD Ø... -
Page 9: Remote Control
REMOTE CONTROL Before making any connections to the SB-5544BNC. Observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. -
Page 10: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES: CUSTOM CODE: 20DF POWER ON: 20DF A15E LOCK: 20DF B54A VOLUME +: 20DF C33C POWER OFF: 20DF A25D RECALL: 20DF B24D VOLUME -: 20DF C43B ALL: 20DF... -
Page 11: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 12: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. Example of the commanded string to select Inputs: Function Command Variables Select source Source xxx;... -
Page 13: Typical Application
OUTPUT 1 - 4 PORT HDTV DISPLAY SIGNALS: COMPOSITE VIDEO - Composite Video, connector with BNC AUDIO - Stereo Audio (AR/AL), connector with RCA SB-5544BNC SUPPORTS (4) COMPOSITE INPUTS MATRIXED TO (4) SWITCH OUTPUTS. SUPPORTS CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. -
Page 14: Limited Warranty
LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc. - Page 15 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 16 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
