INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-5548BNC

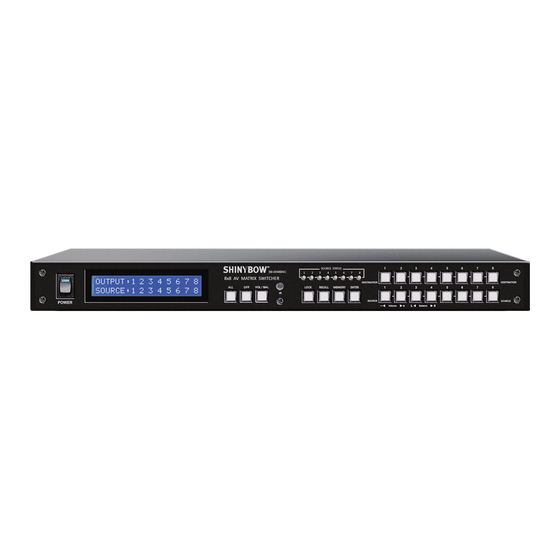

8x8 AUDIO-VIDEO MATRIX SWITCHER
8x8 AUDIO-VIDEO MATRIX SWITCHER
Composite Video-Stereo Audio Matrix Switcher Series
Thank you for purchasing the SB-5548BNC 8x8 Composite Video-Audio Matrix Switcher. You will fi nd this unit
easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use
this switcher.
Advertisement
Table of Contents
Related Manuals for Shinybow USA SB-5548BNC
Summary of Contents for Shinybow USA SB-5548BNC

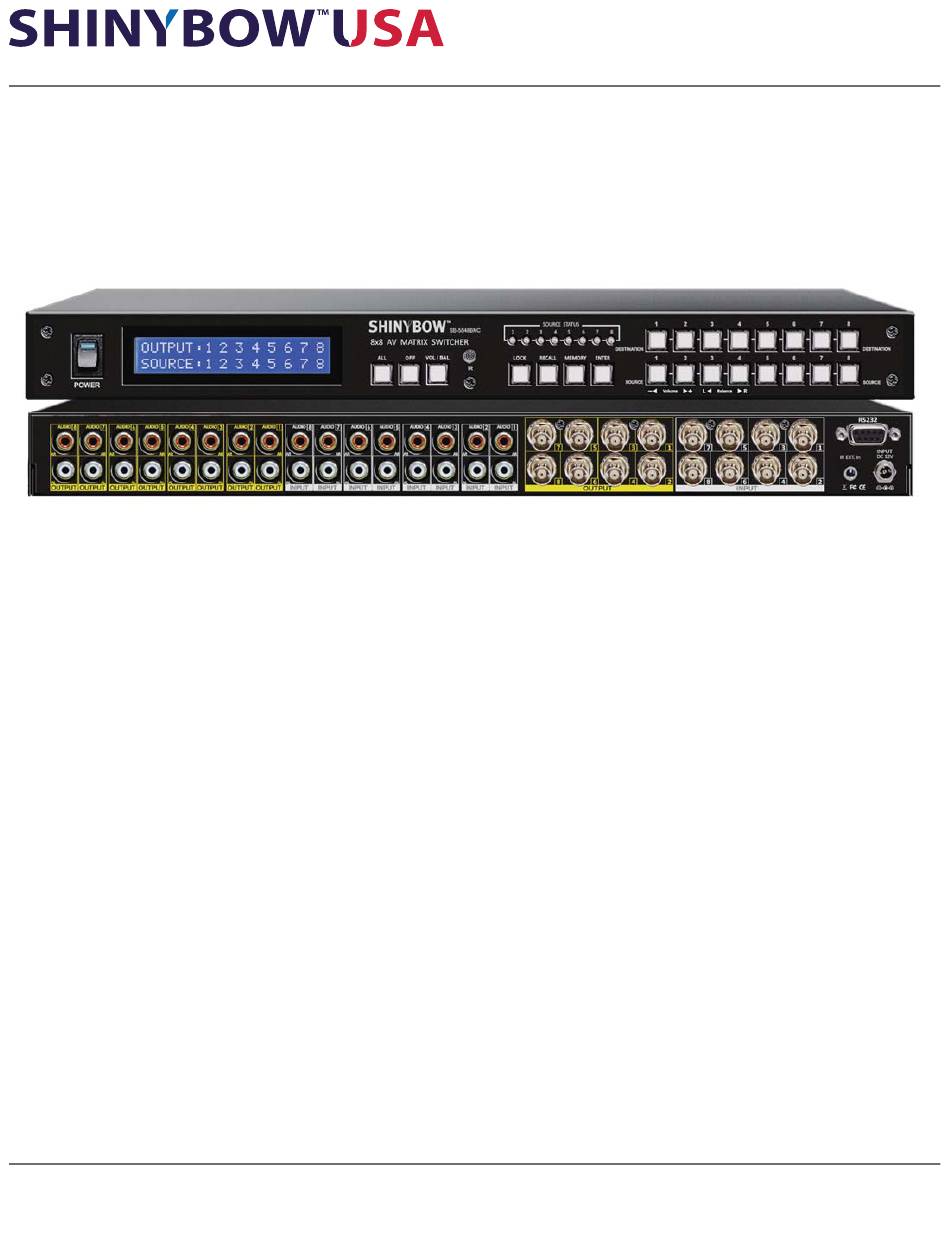

- Page 1 Composite Video-Stereo Audio Matrix Switcher Series Thank you for purchasing the SB-5548BNC 8x8 Composite Video-Audio Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
We reserve the right to make improvements to this document and/ PACKAGE CONTENTS or product at any time and without notice. Check that you have the following components; • SB-5548BNC 8x8 Matrix Switcher COPYRIGHT NOTICE • RS-232 V2.0 Protocol Instructions • Master wireless IR Remote Control (SW-5548BNC) No part of this document may be reproduced, transmitted, •... -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Supports (8)x inputs to (8)x outputs A/V (Composite Video & Stereo Audio) Matrix Switcher • Input/Output signals via Composite Video (BNC) & Stereo Audio(AR/AL) • Higher Video Bandwidth 450MB each path signals. • Supported selection buttons direct channel on front panel •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2. - Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) audio on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show ”0” indicating all destinations have no audio selected.
- Page 7 FRONT PANEL FRONT PANEL 13. FUNCTION KEY - VOL / BAL ( Volume / Balance ) VOLUME: To affect the volume on any Output, - Press VOL / BAL button once. - Select 1 thru 8 on the Destination row, for the Output you wish to change. - Press Volume + or –...
-
Page 8: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fi tted with a DC power plug-park input connector. DC Jack - Inner OD Ø 2.1 mm (+) Please ensure that the plug-park used is of an approved type and Outside OD Ø... -
Page 9: Remote Control
REMOTE CONTROL Before making any connections to the SB-5548BNC. Observe the following: • Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. -
Page 10: Remote Protocol Commands
REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : CUSTOM CODE : 2CD3 2CD3 A15E 2CD3 EE11 POWER ON BALANCE + 2CD3 A25D 2CD3 ED12 POWER OFF BALANCE - 2CD3 B04F LOCK 2CD3 B54A 2CD3... -
Page 11: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V1.0 & V1.5 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 Confi guration RS-232 cable is a straight thru cable and not null-modem Defi... -
Page 12: Ir Extender
IR EXTENDER IR RECEIVER: 1. SB-100 IR 300M Receiver Device Cable (3C) IR Receiver (SB-100) R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . SB-100 SB-100 IR Receiver Set SB-100 Maximum Distance ~ 984 feet (300 meters) 2. - Page 13 IR EXTENDER IR EMITTER: 1. SB-101 IR 300M Transmitter Device Cable (3C) IR Transmitter (SB-101) IR out CAT6/6a/7 DC 12V IR in R oHS /95/E C IR Tx From OUTPUT Receiver Receiver SB-101 SB-101 IR Transmitter Set SB-101 Maximum Distance ~ 984 feet (300 meters) 2.
-
Page 14: Typical Application
OUTPUT 1 ~ 8 PORT HDTV DISPLAY SIGNALS: COMPOSITE VIDEO - Composite Video, connector with BNC AUDIO - Stereo Audio (AR/AL), connector with RCA SB-5548BNC SUPPORT COMPONENT EIGHT INPUTS MATRIX TO EIGHT SWITCH OUTPUTS SUPPORT CONTROL IR & RS-232 INTERFACE SYSTEM PORTS. - Page 15 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 16 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
