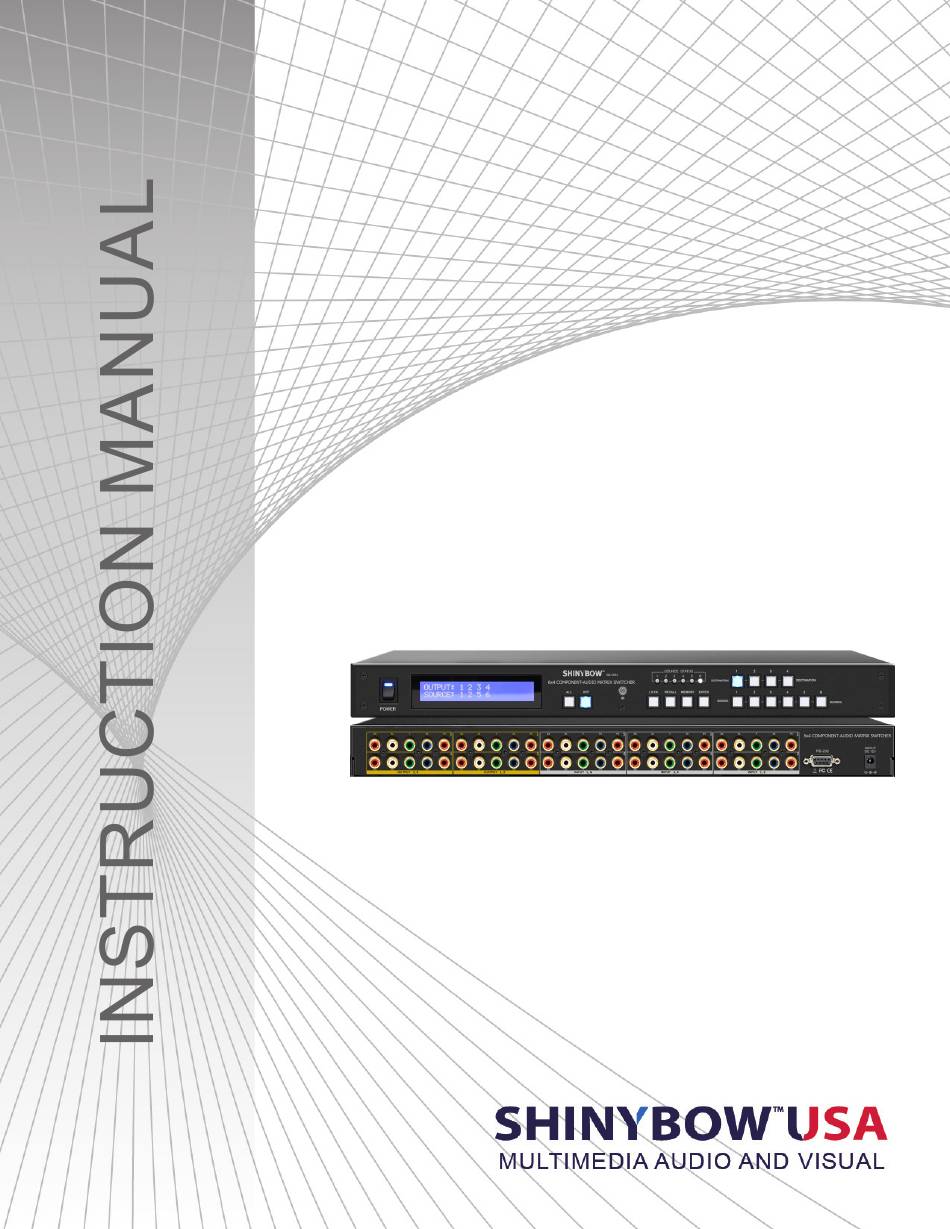

- Page 1 SB-5564LCM 6x4 COMPONENT-AUDIO MATRIX SWITCHER...
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fire, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
Component Video/Audio matrix switching products on the market PSU if it is damaged. today. The SB-5564LCM is a true matrix routing switcher for • Do not allow anything to rest on the power cabling or allow any Component Video and Stereo Audio signals. It has (6) individual weight to be placed upon it or any person walk on it. -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • (6) Inputs to (4) Outputs Component Video (YPBPR) Matrix Switcher • Input/Output signals via Component Video (YPBPR), Stereo Audio (AR/AL) • Higher video bandwidth 325MB each path signals • Supports HDTV high definition resolutions 480p, 576i/p, 720p, 1080i/1080p •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH: The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The switcher will remember that last state during a power cycle. When power is removed and resorted, the last configuration will be evoked. - Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL: Disables (mutes) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “0“ indicating all destinations have no video selected.
- Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY: The system will show stored presets, up to a total of 10. Presets are stored in local memory using Source keys 1 thru 6 or Destination keys 1 thru 4 as the memory preset location. - Configure desired matrices.
-
Page 8: Back Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: POWER JACK: The switcher is fitted with a DC power plug-park input connector. Please ensure that the plug-park used is of an DC Jack - Inner OD Ø 2.1mm (+) approved type and is of sufficient current carrying capacity with Outside OD Ø... -
Page 9: Remote Control
REMOTE CONTROL Before making any connections to the SB-5564LCM Observe the following: • Ensure the main voltage supply matches the label on the supplied plug-pack (+/-10%). • Ensure that the power switch is OFF. • Ensure that all system grounds (earth) are connected to a common point. - Page 10 REMOTE PROTOCOL COMMANDS IR REMOTE CUSTOM AND DATA CODES (NEC Standard) HOW TO SETUP IR CODES : CUSTOM CODE : 24DB POWER ON: 24DB A15E LOCK: 24DB B54A POWER OFF: 24DB A25D RECALL: 24DB B24D ALL: 24DB B04F MEMORY: 24DB B44B OFF: 24DB...
-
Page 11: Ir Extender
IR EXTENDER IR EXTENDER 1. SB-100 IR 300M Receiver Switcher IR EXT. In Cable (3C) IR Receiver (SB-100) Distance: Max.300M IR PN#: SB-XXXX R oHS /95/E C INP UT R S -232 IR E XT. in DC 12V IR Rx RS - 232 IR EXT . -
Page 12: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT a PC or CONTROL SYSTEM. VERSION COMPATIBLE V2.0 RS-232 SERIAL CONNECT For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. Pin RS-232 Definition ------ Not used Transmitter Receiver ------ Not used... -
Page 13: Typical Application
OUTPUT 1 ~ 4 PORT HDTV DISPLAY SIGNALS: COMPONENT VIDEO - Component Video(YPBPR), connector with RCA AUDIO - Stereo Audio (AR/AL), connector with RCA SB-5564LCM SUPPORTS (6) COMPONENT INPUTS MATRIXED TO (4) SWITCH OUTPUTS. SUPPORT IR CONTROL & RS-232 INTERFACE SYSTEM PORTS. - Page 14 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using or installing the product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the product and return the product to SHINYBOWUSA, Inc.
- Page 15 THIS PAGE IS INTENTIONALLY LEFT BLANK.
- Page 16 122 Rose Ln. Suite 303 | Frisco, Texas 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
