INSTRUCTION MANUAL
M ULT I MEDI A AU DIO A N D VI SU A L
MODEL : SB-4144TB

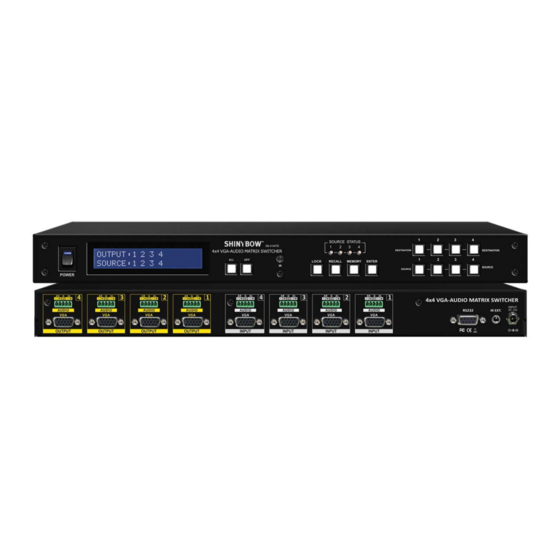

4X4 VGA-Audio Matrix Switcher
VGA-Audio Matrix Switcher
VGA-Audio Matrix Switcher Series
Thank you for purchasing the SB-4144TB VGA-Audio Matrix Switcher. You will fi nd this unit easy to install and
highly reliable but it is essential that you read this manual thoroughly before attempting to use this switcher.
Advertisement
Subscribe to Our Youtube Channel
Related Manuals for Shinybow USA SB-4144TB
Summary of Contents for Shinybow USA SB-4144TB
- Page 1 VGA-Audio Matrix Switcher Series Thank you for purchasing the SB-4144TB VGA-Audio Matrix Switcher. You will fi nd this unit easy to install and highly reliable but it is essential that you read this manual thoroughly before attempting to use this switcher.
- Page 2 SAFETY INFORMATION To ensure the best results from this product, please read this manual and all other documentation before operating your equipment. Retain all documentation for future reference. Follow all instructions printed on unit chassis for proper operation. To reduce the risk of fi re, do not spill water or other liquids into or on the unit, or operate the unit while standing in liquid. Make sure power outlets conform to the power requirements listed on the back of the unit.
-
Page 3: Table Of Contents
• Do not allow anything to rest on the power cabling or allow any switching products on the market Today. The SB-4144TB is a true weight to be placed upon it or any person walk on it. Matrix Routing Switcher for VGA(RGBHV)/Stereo Audio(AR/AL) •... -
Page 4: Features & Specifications
FEATURES & SPECIFICATIONS FEATURES • Supports 4x inputs VGA+Stereo Audio to 4x VGA+Stereo Audio outputs Matrix Switcher • 4x Input signals support via VGA (RGBHV), Stereo Audio(AR/AL) • 4x Output Signals support via VGA (RGBHV), Stereo Audio(AR/AL) to VGA Monitor displays •... -
Page 5: Front Panel
FRONT PANEL FRONT PANEL 1. POWER ON SWITCH The power switch turns the unit on and off. The LED will illuminate red to indicate that the switcher is ON and is receiving power. The Switcher will remember that last state during a power cycle. When power is removed and resorted, the last confi guration will be evoked. 2. - Page 6 FRONT PANEL FRONT PANEL 8. FUNCTION KEY - ALL Disables (mute) video on all destinations OR Selects the same source to all destinations. Option 1 - Press ALL followed by OFF button. The display will show “ 0 “ indicating all destinations have no video selected. Option 2 - Press ALL followed by Source 1 thru 4.
- Page 7 FRONT PANEL FRONT PANEL 12. FUNCTION KEY - MEMORY The system will show store presets, up to a total of 8. Presets are stored in local memory using Source keys 1 thru 4 or Destination keys 1 thru 4 as the memory preset location. - Confi...
-
Page 8: Rear Panel
BACK PANEL BACK PANEL 1. DC POWER INLET: Power Jack: The Switcher is fi tted with a DC power plug-park input connector. DC Jack - Inner OD Ø 2.1 mm (+) Please ensure that the plug-park used is of an approved type and Outside OD Ø... -
Page 9: Remote Control
REMOTE CONTROL Before making any connections to the switcher. Observe the following: Ensure the mains voltage supply matches the label on the supplied plug- Pack (+/- 10%). Ensure that the power switch is OFF. Ensure that all system grounds (earth) are connected to a common point. Avoid powering equipment within a system from multiple power sources that may be separated by large distances. - Page 10 REMOTE CONTROL IR REMOTE CUSTOM AND DATA CODES (NEC STANDARD) HOW TO SETUP IR CODES : CUSTOM CODE : 3AC5 POWER ON : 3AC5 A15E POWER OFF : 3AC5 A25D ALL : 3AC5 B04F OFF : 3AC5 B14E EDID : 3AC5 B748 LOCK : 3AC5 B54A...
-
Page 11: Ir Extender
IR EXTENDER REAR PANEL IR EXTENDER PORT Note: When you plug the External IR extender into the switcher, the front panel IR receiver remains active. IR EXTENDER PACKAGE : HOW TO SETUP THE IR EXTENDER RECEIVER COMPONENTS... -
Page 12: Rs-232 Serial Interface
RS-232 SERIAL INTERFACE RS-232 SERIAL INTERFACE CONNECT A PC OR CONTROL SYSTEM. VERSION COMPATIBLE V2.0 For a complete list of commands, please reference external document extended RS-232 Protocol Instruction Manual. RS-232 SERIAL INTERFACE RS-232 Defi nition -------- Not used Transmitter Receiver -------- Not used... -
Page 13: Typical Application
VGA and Audio cable connect to monitors. 2. STB VGA/Audio signals switch Via SB-4144TB VGA-Adio matrix switcher to VGA monitors. 3. SB-4144TB matrix control via RS-232 by a pc. Support switch by SB-4144TB output VGA and Stereo Audio via VGA and Stereo Audio cable. - Page 14 LIMITED WARRANTY PLEASE READ THE FOLLOWING TERMS AND CONDITIONS CAREFULLY BEFORE USING THIS HARDWARE, COMPONENTS AND SOFTWARE PROVIDED BY, THROUGH OR UNDER SHINYBOWUSA, INC (COLLECTIVELY, THE “PRODUCT”). By using installing or using the Product, you unconditionally signify your agreement to these Terms and Conditions. If you do not agree to these Terms and Conditions, do not use the Product and return the Product to SHINYBOWUSA, Inc.
- Page 15 M ULT I MEDI A AU DIO A N D VI SU A L 1399 Wildfi re Lane | Frisco, TX 75034 1-877-SHINY-USA 1-877-744-6987 1-972-377-2508 sales@shinybowusa.com www.shinybowusa.com...
