- Page 1 SSW-321-X-XFD-ISSUE4.0 SERVICE MANUAL MODEL SSW-321-Xr1 MINI WALL TELEPHONE EQUIPPED WITH XFD PRINTED CIRCUIT BOARD Serving the Telephone Industry Since 1930 Communication Equipment 519 W est South Park Street & Engineering Company Okeechobee, FL.34972 Voice: 863-357-0798 Fax: 863-357-0006...
-
Page 2: Important Information
ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSW-321-X STAINLESS STEEL MINI WALL TELEPHONE WITH XFD PRINTED CIRCUIT BOARD. SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
GENERAL DESCRIPTION ................4 PROGRAMMING ....................5 OPERATION ......................6 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ....6 TESTING ....................... 6 SPECIFICATIONS....................7 PARTS LIST ......................8 FCC NOTICE......................9 10.0 REPAIR AND RETURN INFORMATION ............. 10 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction

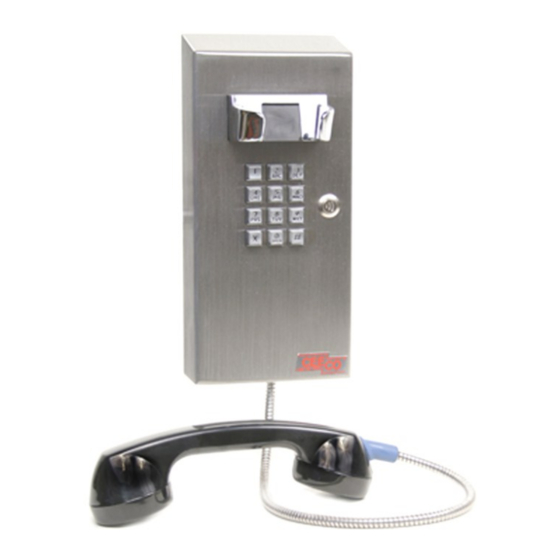

(863) 357-0006 FAX GENERAL DESCRIPTION The CEECO Model SSW-321-X Mini Wall telephone is designed for special applications where a telephone must be both sturdy and attractive. It is equipped with an XFD printed circuit board and is intended for “ring down” or direct connect operations. -
Page 5: Programming
Keypad, call the CEECO XFD Series Telephone. 3) After 4 rings of the CEECO Telephone, answer it by lifting the handset off hook and keep it that way. Three tones should be heard indicating the phone is ready for remote input. -
Page 6: Operation
Secure the cover assembly by tightening the security screw. TESTING Program the phone according to section 3.0. Lift the handset. A normal phone conversation takes place. When the call is ended, hang up. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Specifications
Temperature 0oC to 50oC Humidity 20%-90% non-condensating. ENCLOSURE Brushed 16 ga. Stainless Steel MOUNTING: Vertical surface mount WEIGHT: 7 lb. FCC REGISTRATION: BW-88T7-13717-TE-T UL LISTED NO.: 6OF5 RINGER EQUIVALENCY: 0.1A TYPE JACK: RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Parts List
1/4 - 20 x 3/4 Security Screw 301-005 Cable Ferrule 301-052 Grommet 301-6077 Volume Control Button ACCESSORIES: 301-037 Security Tool OPTIONS: 301-106-32 Handset with Steel Lanyard 301-106-18 (Prison) Short Cord Handset with Steel Lanyard CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 8.0. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: 10.0 Repair And Return Information
Okeechobee, Florida. 34972 (863) 357-0798 10.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 10.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 11: Warranty Policy
God or improper operation of equipment. CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation.
