SSW-521-X-ADA-SPK1.07UNVLr3-ADA-ISSUE4.0
SERVICE MANUAL
FOR
MODEL SSW-521-X-ADA

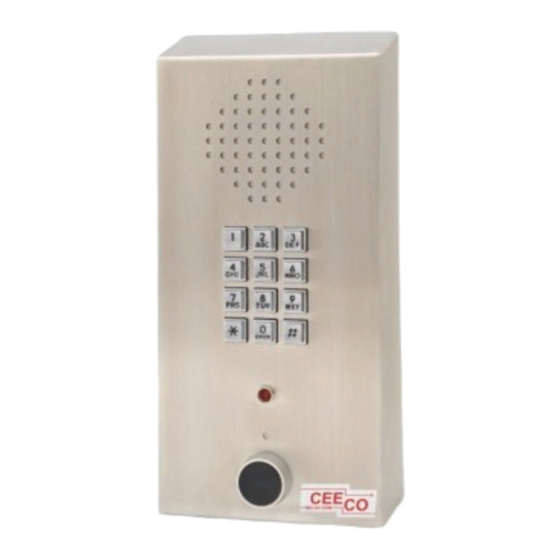

STAINLESS STEEL HANDS FREE WALL TELEPHONE
WITH OPTIONAL ADA FEATURE
EQUIPPED WITH SPK1.07UNVLr3 FIRMWARE
Serving the Telephone Industry Since 1930
Communication Equipment
519 West South Park Street
& Engineering Company
Okeechobee, FL. 34972
Voice: 863-357-0798
Fax: 863-357-0006
Advertisement
Table of Contents
Related Manuals for CEECO SSW-521-X-ADA
Summary of Contents for CEECO SSW-521-X-ADA
- Page 1 SSW-521-X-ADA-SPK1.07UNVLr3-ADA-ISSUE4.0 SERVICE MANUAL MODEL SSW-521-X-ADA STAINLESS STEEL HANDS FREE WALL TELEPHONE WITH OPTIONAL ADA FEATURE EQUIPPED WITH SPK1.07UNVLr3 FIRMWARE Serving the Telephone Industry Since 1930 Communication Equipment 519 West South Park Street & Engineering Company Okeechobee, FL. 34972 Voice: 863-357-0798...
-
Page 2: Important Information
ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSW-521-X-ADA STAINLESS STEEL HANDS FREE WALL TELEPHONE EQUIPPED WITH SPK1.07UNVLr3 FIRMWARE. SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
RECOMMENDED TOOLS AND TEST EQUIPMENT ........7 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..... 8 TESTING ....................... 10 SPECIFICATIONS....................11 PARTS LIST ......................12 10.0 REPAIR AND RETURN INFORMATION ............13 11.0 WARRANTY POLICY ..................14 12.0 DIAGRAM......................15 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction
(863) 357-0798 (863) 357-0006 (FAX) GENERAL The CEECO Model SSW-521-X-ADA Hands free telephone is a sturdy, vandal resistant, Stainless Steel Speakerphone, with optional ADA feature (RED/GREEN LED). Instead of a hookswitch and handset, the telephone is equipped with a Press to start/Press to stop Emergency Call Button. The button provides automatic “off-hook”... -
Page 5: Programming
Enter #00, followed by a series of ten (10) digits as selected from the following page. Location “00” is the telephone options location. By entering a selected number of 0-9 into each of the ten digit locations, the phone is customized for the particular installation CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Continued
DIGIT 4 .. ALWAYS 0 DIGIT 5 .. ALWAYS 1 DIGIT 6 .. ACTIVATE ADA FEATURE DIGIT 7 .. ALWAYS 1 DIGIT 8 .. ALWAYS 0 DIGIT 9 .. ALWAYS 0 DIGIT 10..250 ms wink detect. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
LED provides a visual indication of the call progress. In order for the ADA LED to function, it must be activated by selecting “9” in section 3.6 under Digit 6. NOTE: CEECO cannot assume responsibility for the called party’s response. IF the phone is programmed to allow incoming calls, simply press the button to answer the phone when the incoming ring is received. -
Page 8: Installation Notes And Assembly Instructions
Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY... - Page 9 L.M. 09-15-08 therein is confidential and is the exclusive property of CEECO and may not be copied, reproduced or disclosed to anyone, in any manner whatsoever, or used for any purpose other than for which it is provided to you, without the prior written permission of CEECO.
-
Page 10: Testing
The call is terminated. Action: Using another phone, call the number of the line to which the SSW-521-X-ADA is attached. Reaction: The internal ringer will sound, indicating the incoming call. Press the button to answer the phone and a normal speakerphone conversation should follow. -
Page 11: Specifications
PROGRAMMING : Via DTMF keypad. DIMENSIONS : 5"W X 10"H X 3 1/2"D MOUNTING : Vertical surface mount MEMORY RETENTION : Non-volatile memory retention WEIGHT : Approximately 6 Pounds TYPE JACK : RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 12: Parts List
QUANTITY PART NUMBER DESCRIPTION 301-018 MODULAR LINE CORD 301-054 MODULAR CONNECTOR (RJ11C) 521-200 SERVICE MANUAL 700-008 KEYPAD CABLE 660-000 CEECO SPK BOARD 705-110 CONNECTORIZED KEYPAD 6020-B MOMENTARY PANEL SWITCH 14123 SPEAKER 12017 RINGER STAINLESS STEEL COVER 321-015 STAINLESS STEEL BACKPLATE 9023 1/4-20 X 3/4"... -
Page 13: Repair And Return Information
(863) 357-0798 (863) 357-0006 (FAX) 10.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs for both directions. 10.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 14: Warranty Policy
PRINTED CIRCUIT BOARDS Printed circuit boards should not be field repaired. If a unit is found to be faulty, replace it with another unit and return the faulty unit to CEECO for repair. Modifications by anyone other than CEECO will void the warranty. -
Page 15: Diagram
ON position BEFORE going off-hook. When programming is completed, move the mini jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position; this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
