WPP-531-FD OR SSP-511-FD-SPK1.07UNVLr1-ADA-ISSUE4.0
SERVICE MANUAL
FOR
MODEL WPP-531-FD
HANDS FREE WEATHERPROOF TELEPHONE
AND
MODEL SSP-511-FD
STAINLESS STEEL PANEL TELEPHONE
WITH OPTIONAL ADA FEATURE
EQUIPPED WITH SPK1.07 UNVLr1 FIRMWARE
Serving the Telephone Industry Since 1930
Communication Equipment
519W South Park Street
& Engineering Company
Okeechobee, FL 34972
Voice: 863-357-0798
Fax: 863-357-0006
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for CEECO WPP-531-FD-ADA-R
Summary of Contents for CEECO WPP-531-FD-ADA-R
- Page 1 WPP-531-FD OR SSP-511-FD-SPK1.07UNVLr1-ADA-ISSUE4.0 SERVICE MANUAL MODEL WPP-531-FD HANDS FREE WEATHERPROOF TELEPHONE MODEL SSP-511-FD STAINLESS STEEL PANEL TELEPHONE WITH OPTIONAL ADA FEATURE EQUIPPED WITH SPK1.07 UNVLr1 FIRMWARE Serving the Telephone Industry Since 1930 Communication Equipment 519W South Park Street & Engineering Company Okeechobee, FL 34972 Voice: 863-357-0798 Fax: 863-357-0006...
- Page 2 ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL WPP-531-FD OR SSP-511-FD, WITH OPTIONAL ADA FEATURE, EQUIPPED WITH SPK1.07UNVLr1 FIRMWARE SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support.
-
Page 3: Table Of Contents
RECOMMENDED TOOLS AND TEST EQUIPMENT ........12 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ....14 TESTING....................... 16 SPECIFICATIONS....................17 PARTS LIST ......................18 10.0 FCC NOTICE......................19 11.0 REPAIR AND RETURN INFORMATION ............20 12.0 WARRANTY POLICY ..................21 CEECO Communication Equipment & Engineering Company PROPRIETARY... - Page 4 ISSUE 4.0 13.0 DIAGRAM......................22 CEECO Communication Equipment & Engineering Company PROPRIETARY...
-
Page 5: Introduction

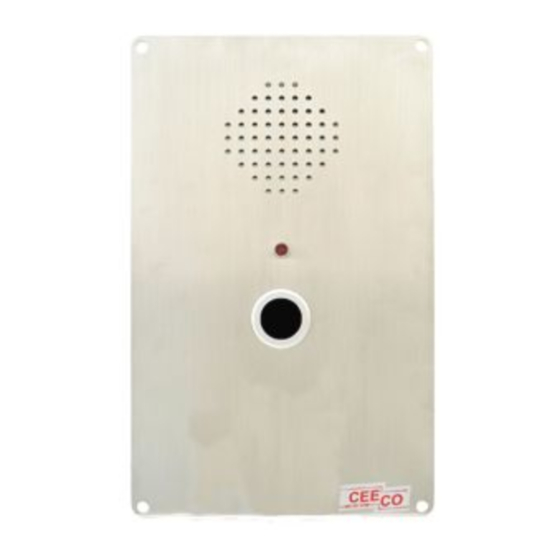

GENERAL The CEECO hands free telephone is a sturdy, vandal resistant, Stainless Steel Panel Speakerphone. Instead of a hookswitch and handset, the telephone has a Press to start/Press to stop button for initiation and termination of phone calls. The Emergency Auto Dial button is also provided for one button dialing of a preprogrammed emergency number of up to 11 digits. -
Page 6: Programming
Connect the phone to a working telephone line or a DTMF test set to begin programming. Move the mini-jumpers (located on the CEECO 660-000) Printed Circuit Board) to the “ON” position, as depicted on the last page of this manual. -
Page 7: Programming Continued
1 Dial PBX number stored in location #02. For Emergency Button Digit 10: 0 No Wink Detect l-9 Length of the Wink (l = 50ms incremental to 450ms – entering a 5 is recommended) CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Programming Continued
This location holds any PBX number to be dialed for “Emergency” Calls. If this is desired, enter #02, followed by the desired PBX number. The number can be from 1 to 11 digits. Any number stored in location #02 will automatically CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Programming Continued
#30 and the phone will Speed Dial 1 800 555 1212. This is true for all of the Speed Dial Locations from #30 to #69. • Be sure to record your entries in the Speed Dial Table on the next page for future reference. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Programming Continued
#68 _ - _ _ _ - _ _ _ - _ _ _ _ #49 _ - _ _ _ - _ _ _ - _ _ _ _ #69 _ - _ _ _ - _ _ _ - _ _ _ _ CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Programming Continued
#88 _ - _ _ _ - _ _ _ - _ _ _ _ #79 _ - _ _ _ - _ _ _ - _ _ _ _ #89 _ - _ _ _ - _ _ _ - _ _ _ _ CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 12: Programming Continued
If digit 1 of Location #00 is "1" then there are no restrictions and any number may be dialed. RECOMMENDED TOOLS AND TEST EQUIPMENT DTMF Test Set Volt/Ohm Meter 3/8" Nut Driver 5/16" Nut Driver Flat Blade Screw Driver CEECO Communication Equipment & Engineering Company PROPRIETARY... - Page 13 ISSUE 4.0 Security Tool, CEECO Part Number 301-064 CEECO Communication Equipment & Engineering Company PROPRIETARY...
-
Page 14: Installation Notes And Assembly Instructions
Run the inside station wire through the housing or mounting and terminate on to the RJ11C modular jack inside, as depicted in the diagram on the following page. The CEECO-provided jack must be used, as it contains required over-voltage protection. - Page 15 ISSUE 4.0 OVER-VOLTAGE PROTECTION DIAGRAM CEECO Communication Equipment & Engineering Company PROPRIETARY...
-
Page 16: Testing
Remember that the mini-jumpers must be moved to “ON” for programming and to “OFF” for operation. If trouble persists, refer to section 11.2 please. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 17: Specifications
(including door). MOUNTING: 4 holes spaced 8” x 5 7/8” x 13/32” (or optional pole mounting bracket) WEIGHT: Approximately 12 pounds FCC REGISTRATION: BW88T7-13716-TE-T RINGER EQUIVALENCY: 0.4A TYPE JACK: RJ11C UL LISTED NO.: 6OF5 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 18: Parts List
DESCRIPTION 331-006 Outer Cover Locking- Screw 301-018 Modular Line Cord 301-054 Modular Connector (RJ11C) 531-200 Service Manual 700-008 Keypad Cable 660-000 CEECO SPK Board 705-110 Connectorized Keypad 6020 Momentary Panel Switch 14123 Speaker 331-005 Weatherproof Housing 12017 Ringer ACCESSORIES: 301-064... -
Page 19: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in Section 11.00. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 20: Repair And Return Information
11.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 11.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price Return RMA must be requested no later than 30... -
Page 21: Warranty Policy
12.0 WARRANTY POLICY 12.1 GENERAL CEECO products are guaranteed to be free of defects in material and workmanship for a period of 365 days from the date of original purchase. CEECO's obligation under this warranty is limited to repair or replacement of any part found to be defective by CEECO. - Page 22 ON position BEFORE going off-hook. When programming is completed, move the mini jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position; this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
