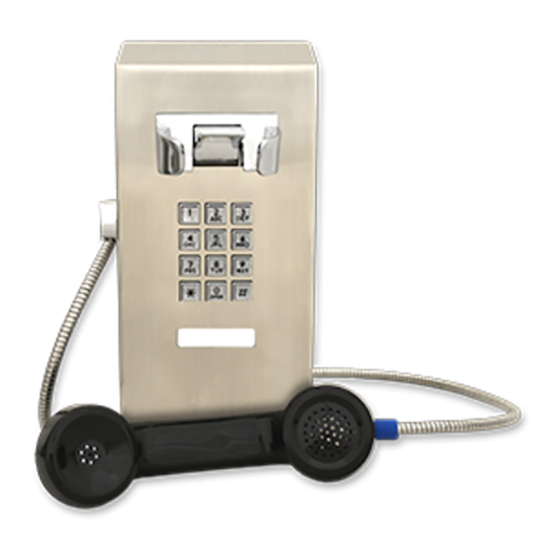

- Page 1 SSW-323-F-CAC5.01-ISSUE4.0 SERVICE MANUAL MODEL SSW-323-F STAINLESS STEEL WALL TELEPHONE EQUIPPED WITH CAC5.01 FIRMWARE Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street & Engineering Company Okeechobee, FL 34972 Voice: 863-357-0798 Fax: 863-357-0006...
- Page 2 ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSW-323-F EQUIPPED WITH CAC5.01 FIRMWARE SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support.
-
Page 3: Table Of Contents
TROUBLE SHOOTING GUIDE ................ 12 TROUBLE SHOOTING CONTINUED…............13 SPECIFICATIONS....................14 PARTS LIST ......................15 10.0 FCC NOTICE......................16 11.0 REPAIR AND RETURN INFORMATION............17 12.0 WARRANTY POLICY ..................18 13.0 DIAGRAM......................19 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction
GENERAL The CEECO 323-F Stainless Steel Wall Telephone, equipped with CAC5.01 firmware, is a microprocessor-based instrument designed to deter fraud from hand held tone dialers, hookswitch dialing and other fraudulent call attempts. The transmitter is muted during periods of dial tone preventing the use of hand held dialers. -
Page 5: Programming
No incoming calls allowed. Incoming calls allowed. Digit 3: Mute transmitter after dialing number stored in #19 programming location (see section 3.7 for details about location #19). Unmute transmitter after dialing number in #19. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Continued
NOTE: A number must be stored in location #19 in order to use the #18 location. * Be sure to record you programmed number in the Location #18 table below for future reference. LOCATION #18 TABLE: __ __ __ __ __ __ __ __ __ __ __ CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Programming Continued
# key, followed by the two digit location code, followed by the desired number. This will erase any previous contents and store the new number. It is not necessary to repeat any other steps. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Programming Continued
There are no other features to program on this particular phone. Once you have completed the programming, hang up the phone and return the mini-jumpers to the “OFF” position, as depicted on the last page of this manual. The phone is now ready for Testing/Operation. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Testing/Operation
Attempt to "hookswitch dial" by tapping quickly on the hookswitch. The telephone should hang up and return to dial tone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Testing/Operation Continued
Security Tool 301-037 1/4" Nut Driver *The security tool is for a standard 5/32∀ 5/16" Nut Driver button-head screw generally used on the Volt/Ohm Meter framework of telephone booth Flat Blade Screw Driver CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Installation Notes And Assembly Instructions
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 12: Trouble Shooting Guide
PROBLEM: TRANSMITTER DOES NOT TURN ON POSSIBLE CAUSE: HANDSET MCRK-2 CARD NETWORK CABLE ASSY NETWORK PROBLEM: TRANSMITTER DOES NOT TURN ON FOR INCOMING CALLS POSSIBLE CAUSE: PHONE NOT PROGRAMMED TO ALLOW INCOMING CALLS. MCRK-2 CARD CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 13: Trouble Shooting Continued
PROBLEM: LOSES MEMORY CONTENTS AFTER EXTENDED PERIODS OF NO USE. POSSIBLE CAUSE: LITHIUM BATTERY PROBLEM: PHONE CANNOT BE PROGRAMMED POSSIBLE CAUSE: MEMORY CHIP MCRK-2 CARD KEYPAD KEYPAD CABLE ASSY. PROBLEM: RINGER DOES NOT OPERATE POSSIBLE CAUSE: RINGER NETWORK CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 14: Specifications
5" Wide x 10 3/4" High x 5 1/2" Deep (Handset on-hook) MOUNTING: Flat Vertical Surface MEMORY RETENTION: Lithium Battery - Long Life WEIGHT: Approximately 6 Pounds FCC REGISTRATION: BW88T7-13823-TE-T UL LISTED NO.: 6OF5 RINGER EQUIVALENCY: 0.4A TYPE JACK: RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 15: Parts List
650-570 Network Cable 650-500 MCRK-2 Board 705-110 Connectorized Keypad W/ 705 Mounting 12017 Ringer ACCESSORIES: 301-037 Security Tool OPTIONS: 301-106-29 Handset with Armored Cord or 301-106-18 (Prison) Handset w/Armored Cord & Steel Lanyard CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 16: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 9.00. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 17: Repair And Return Information
11.3 NON-WARRANTY REPAIR: CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 11.4 RETURN FOR CREDIT: Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 18: Warranty Policy
CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation. -
Page 19: Diagram
OVE THE MINI JUMPERS TO THE BEFORE POSITION GOING HOOK When programming is completed, move the mini jumpers to the OFF position. NOTE: Do not leave the mini jumpers in the ON position, this will decrease battery life. CEECO Communication Equipment & Engineering Company PROPRIETARY...
