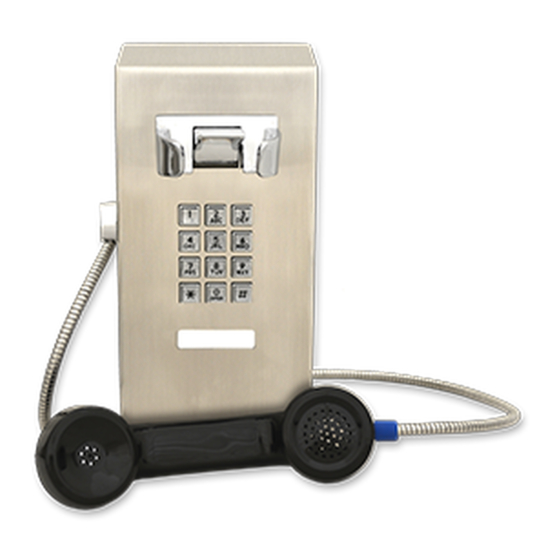

- Page 1 SSW-321-D-ATD11-ISSUE4.0 SERVICE MANUAL MODEL SSW-321-D MINI WALL TELEPHONE EQUIPPED WITH ATD11 BOARD Serving the Telephone Industry Since 1930 Communication Equipment 519 W South Park Street & Engineering Company Okeechobee, FL 34972 Voice: 863-357-0798 Fax: 863-357-0006...
-
Page 2: Important Information
ISSUE 4.0 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSW-321-D STAINLESS STEEL MINI WALL TELEPHONE WITH ATD11. SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support. -
Page 3: Table Of Contents
OPERATION ..........................7 INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..........7 TESTING............................8 TROUBLESHOOTING GUIDE ....................9 SPECIFICATIONS........................10 PARTS LIST ..........................11 10.0 FCC NOTICE..........................12 11.0 REPAIR AND RETURN INFORMATION ................13 CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 4: Introduction
(11) digits. The auto dialing feature is activated by hookswitch closure, when the handset is lifted. The SSW-321-D is not designed for incoming calls, but may still receive them. If a call is placed to the phone, the automatic dialer will still dial its number when the receiver is lifted off hook. -
Page 5: Programming
J2 jumper on the "3" position to set the delay before dialing to 3 to 4 seconds. The J2 mini-jumper is the lone green mini-jumper located farthest from the right hand corner of the A-K main matrix board. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 6: Programming Diagram
ISSUE 4.0 3.6 Programming Diagram CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 7: Operation
Never install telephone jacks in wet locations unless the jack is specifically designed for wet locations. Never touch uninsulated telephone wires or terminals unless the telephone line has been disconnected at the network interface. Use caution when installing or modifying telephone lines. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 8: Testing
(depending on the position of J2. Section 3.5), the programmed number is dialed, and then a normal phone conversation can take place. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 9: Troubleshooting Guide
PROBLEM: TRANSMITTER DOES NOT TURN ON POSSIBLE CAUSE: HANDSET NETWORK PROBLEM: PHONE DOESN'T DIAL PROGRAMMED NUMBER POSSIBLE CAUSE: ATD-11A BOARD PROGRAMMING SWITCH MATRIX SET WRONG JUMPER IN WRONG POSITION PROBLEM: RINGER DOES NOT OPERATE POSSIBLE CAUSE: RINGER NETWORK CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 10: Specifications
Temperature 0oC to 50oC Humidity 20%-90% non-condensating. ENCLOSURE Brushed 16 ga. Stainless Steel MOUNTING: Vertical surface mount WEIGHT: 7 lb. FCC REGISTRATION: BW-88T7-13717-TE-T UL LISTED NO.: 6OF5 RINGER EQUIVALENCY: 0.1A TYPE JACK: RJ11C CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 11: Parts List
Stainless Steel Backplate 321-016 1/4 - 20 x 3/4 Security Screw 308-015 Swivel 301-052 Grommet 301-054 Modular Jack ACCESSORIES: 301-037 Security Tool OPTIONS: 301-106-29 Handset with Armored Cable 301-106-18 (Prison) Handset with Internal Steel Lanyard CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 12: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 8.0. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment & Engineering Company PROPRIETARY... -
Page 13: Repair And Return Information
11.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 11.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer’s list price. -
Page 14: Warranty Policy
God or improper operation of equipment. CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation.
