- Page 1 SSW-321-F -ISSUE4.01 SERVICE MANUAL MODEL SSW-321-F MINI STAINLESS STEEL WALL TELEPHONE Serving the Telephone Industry Since 1930 Communication Equipment 519 West South Park Street & Engineering Company Okeechobee, FL. 34972 Voice: 863-357-0798 863-357-0006...
- Page 2 Issue 4.00 IMPORTANT INFORMATION CUSTOMER Please fill in before you continue. The following information is necessary when calling CEECO for assistance. MODEL NUMBER MODEL SSW-321-F SERIAL NUMBER DATE MANUFACTURED LOCATION INSTALLED For us to better serve you, please have this information available when calling for technical support.
-
Page 3: Table Of Contents
INSTALLATION NOTES AND ASSEMBLY INSTRUCTIONS ..... 5 TESTING......................... 6 TROUBLESHOOTING GUIDE ................7 SPECIFICATIONS....................8 PARTS LIST ......................9 10.0 FCC NOTICE......................10 11.0 REPAIR AND RETURN INFORMATION ............11 12.0 WARRANTY POLICY ..................12 CEECO Communication Equipment and Engineering Company PROPRIETARY... -
Page 4: Introduction

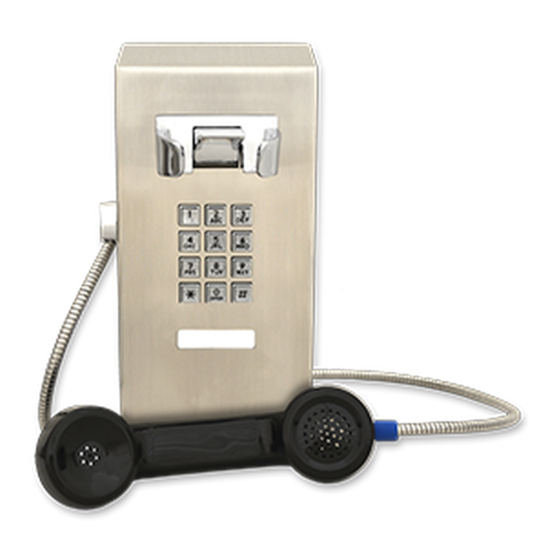

(863) 357-0798 (863) 357-0006 FAX GENERAL DESCRIPTION The CEECO model SSW 321-F is a Mini Wall Telephone equipped with a metal button tone dial. The telephone is designed for special applications where a telephone must be both sturdy and attractive. -
Page 5: Installation Notes And Assembly Instructions
Run the inside station wire through the backplate assembly and terminate on the RJ11C modular jack on the backplate, as depicted on the following page. The CEECO-provided modular jack must be used, as it contains required over-voltage protection. The use of a gas tube station protector is recommended. The station ground should not exceed 50 ohms. -
Page 6: Testing
Dial a number. (The transmitter is muted while the phone is dialing.) Normal phone conversation is allowed. Place the handset on hook. Place a call into the phone. Normal phone conversation is allowed CEECO Communication Equipment and Engineering Company PROPRIETARY... -
Page 7: Troubleshooting Guide
PROBLEM: TRANSMITTER DOES NOT TURN ON POSSIBLE CAUSE: HANDSET NETWORK DIAL PC BOARD PROBLEM: PHONE DOES NOT DIAL POSSIBLE CAUSE: DIAL PC BOARD KEYPAD PROBLEM: RINGER DOES NOT OPERATE POSSIBLE CAUSE: RINGER NETWORK CEECO Communication Equipment and Engineering Company PROPRIETARY... -
Page 8: Specifications
Brushed 16 ga. Stainless Steel DIMENSIONS: 5" Wide x 10 3/4" High x 5 1/2" deep (Handset on hook) MOUNTING: Vertical surface mount WEIGHT: 6 lbs. FCC REGISTRATION: BW-88T7-13717-TE-T UL LISTED NO.: 6OF5 CEECO Communication Equipment and Engineering Company PROPRIETARY... -
Page 9: Parts List
Modular Jack ACCESSORIES: 301-037 Security Tool OPTIONS: 301-106-12 12” Armored Cord Handset with Lanyard 301-106-18 18” Armored Cord Handset with Lanyard 301-106-32 32” Armored Cord Handset with Lanyard 301-106-XX Inquire about other size handsets CEECO Communication Equipment and Engineering Company PROPRIETARY... -
Page 10: Fcc Notice
FCC registration number and ringer equivalence number. These numbers are listed in section 7.00. The FCC further requires that you notify your local telephone company when permanently disconnecting this telephone. CEECO Communication Equipment and Engineering Company PROPRIETARY... -
Page 11: Repair And Return Information
Okeechobee, FL. 34972 (863) 357-0798 11.3 NON-WARRANTY REPAIR CEECO will repair equipment out of warranty for a set charge plus parts. The customer must pay the shipping costs both directions. 11.4 RETURN FOR CREDIT Material may be returned for credit only with prior approval. Material authorized for return is subject to a 20% restocking charge based on the manufacturer's list price. -
Page 12: Warranty Policy
CEECO will repair or replace any unit during this period if found to be defective for reasons other than abuse and improper use or improper installation.
