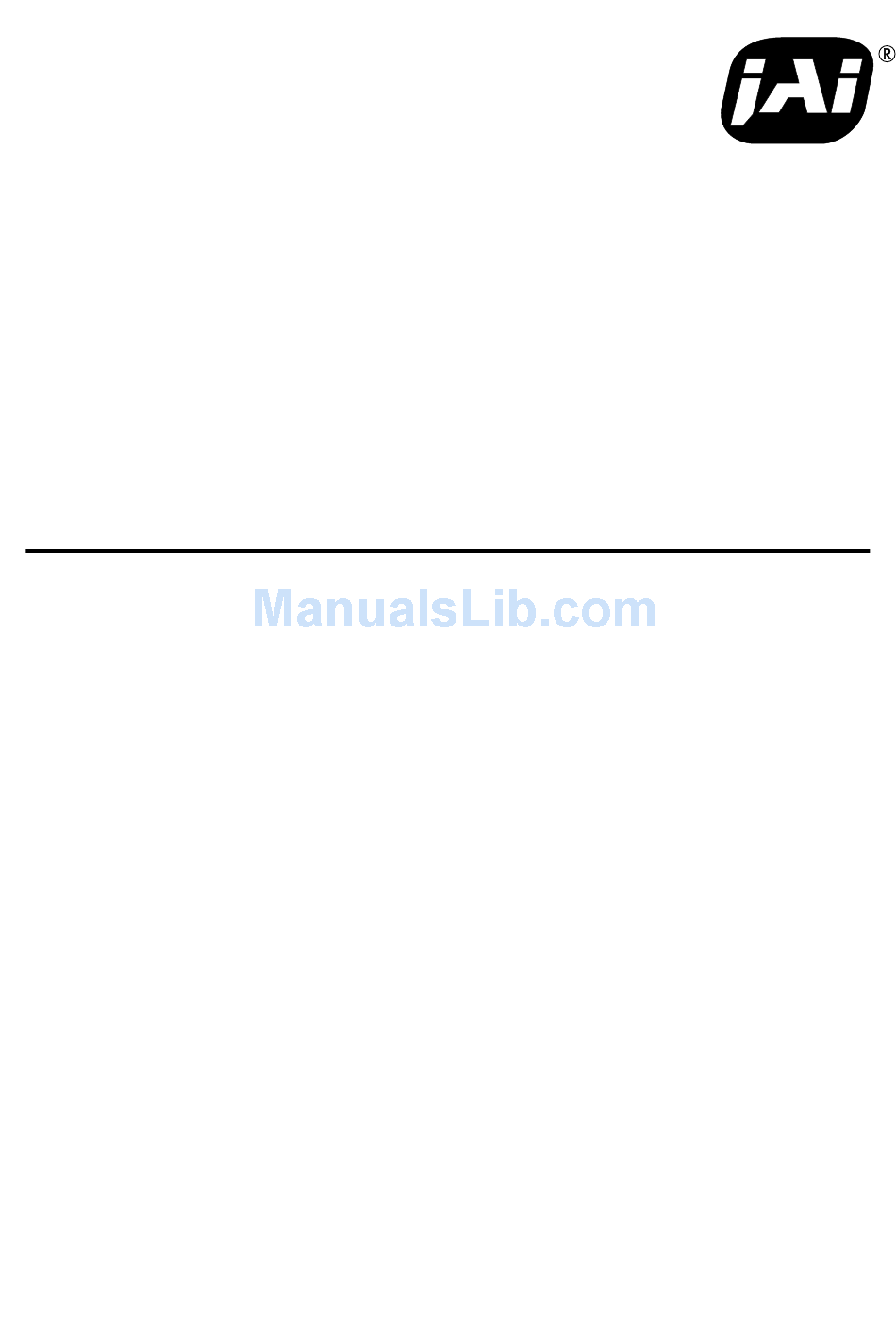

  • Page 1 DSP Color CCD Cameras CV-S3200/3300 Operation Manual (Rev.B)

  • Page 2: Declaration Of Conformity

    CV-S3200/3300 DECLARATION OF CONFORMITY AS DEFINED BY THE COUNCIL DIRECTIVE 89/336/EEC EMC (ELECTROMAGNETIC COMPATIBILITY) WE HEREWITH DECLARE THAT THIS PRODUCT COMPLIES WITH THE FOLLOWING PROVISIONS APPLYING TO IT. EN-50081-1 EN-50082-1...

  • Page 3: Table Of Contents

    5.1 SW1 switch on PK8167 board ... 5.2 On-screen-menu ... 5.3 RS 232C functions ... 6. External appearance ... 7. Specifications ... 8. Appendix ... 8.1 Precautions ... 8.2 Typical CCD Characteristics ... 8.3 References ... 9. Users Record ... CV-S3200/3300...

  • Page 4: General

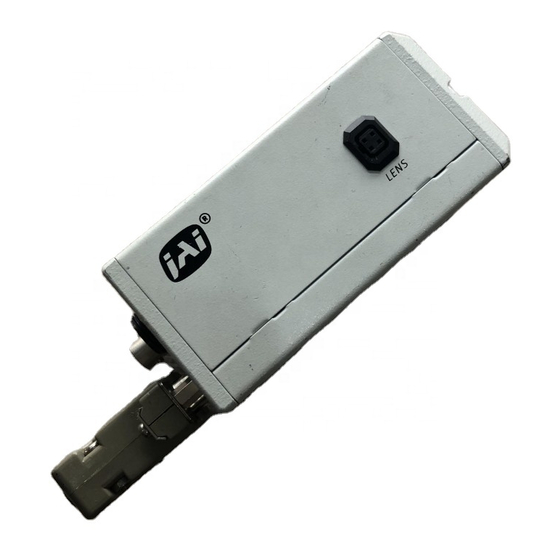

    The CV-S3200 comes with D-sub connector. The camera set-up can be performed via the JAI software platform and an RS232C port, or from a new on-screen menu that can be controlled by the three buttons mounted on the rear of the camera.

  • Page 5: Standard Composition

    C-mount adaptor (MP-55) Auto iris lens pulg (E4-191J-100) Y/C out plug (TCP8040-01-520) Operation manual 4. Pin assignment 4-1. DC IN/SYNC/RS-232C connector a) 9 pin D-sub connector for CV-S3200 b) 7 pin terminal for CV-S3300 CV-S3200/3300 Ground +12V DC input Ground...

  • Page 6: Functions And Operations

    This switch is to select the type of auto iris. It is located on the CCD board (PK8167), as below. Direct drive mode (Passive) Down Video controlled (Active) Note : Factory pre-set is Video controlled. CV-S3200/3300 Ground Ground Y output C output...

  • Page 7: On-Screen-Menu

    5600 K Auto Manual One push Note : Factory pre-set is auto white balance. CV-S3200/3300 For incandescent lamp or halogen lamp. For white fluorescent lamp. For daylight. The TTL system is employed for auto white balance, and it detects the highest video level in objects to recognize a white color.
  • Page 8 AGC ON (0 to +12 dB) +24 dB AGC ON (0 to +24 dB) Manual Manual gain Note : Factory pre-set is AGC OFF. CAUTION 1. Auto iris lens can be used only when the CCD iris is OFF. CV-S3200/3300...
  • Page 9 With “BLC ON” the regulation speed of the iris is decreased. e) Iris level This is to set the video level, when the camera is set at CCD iris, AGC ON and auto iris. CV-S3200/3300 Patten 2 : Effective : Not-effective...
  • Page 10 64 times higher than standard sensitivity (Exposure time =64 fields) Note : Factory pre-set is OFF. 5-2-2. Operations Screen display (example) White balance Manual CV-S3200/3300 Function buttons for on-screen-menu Rear panel of CV-S3300 (example) Blue Note : This scroll bar will be displayed when the following functions are selected.

  • Page 11: Rs 232C Functions

    Auto gain control Back light compensation Iris level Gamma Scanning reversal Frame integration CV-S3200/3300 To adjust the color temperature To adjust the shutter speed OFF, +12dB, +24dB, manual selectable To create your own BLC pattern. To adjust the video level 0.45, 0.60, 1.0 selectable...

  • Page 12: External Appearance

    CV-S3200/3300 6. External appearance Unit : mm (inches) e.g. CV-S3200 e.g. CV-S3300...

  • Page 13: Specifications

    7. S 7. Specifications 7. S pecifications pecifications pecifications 7. S 7. S pecifications Note : Above specifications are subject to change without notice. CV-S3200/3300...

  • Page 14: Appendix

    When the CCD camera captures a dark object at high temperature or is used for long time integration, fixed pattern noise (shown as white dots) may appear on the video monitor screen. 8.3 References 1. This manual and datasheet for CV-S3200/3300 can be downloaded from www.jai.com 2. Camera control software can be downloaded from www.jai.com...

  • Page 15: Users Record

    9. User’s Record Camera type: Revision: Serial No. Users Mode Settings Users Modifications CV-S3200/3300 CV-S3200/3300 (Revision B)
  • Page 16 Fax +45 4491 8880 Phone +81 45 933 5400 www.jai.com Fax +81 45 931 6142 www.jai-corp.co.jp JAI America, Inc., USA Suite 450 23046 Avenida de la Carlota Laguna Hills, CA 92653 Phone +1 949 472 5900 Fax +1 949 472 5908...

This manual is also suitable for:
