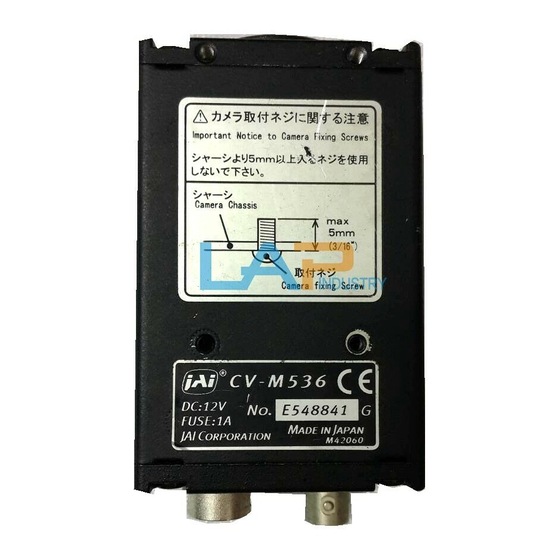

Remote Head Monochrome CCD Camera
CV-M536/538/539
Operation Manual
(Rev.E)

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CV-M536 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for JAI CV-M536

Summary of Contents for JAI CV-M536

  • Page 1 Remote Head Monochrome CCD Camera CV-M536/538/539 Operation Manual (Rev.E)

  • Page 2: Declaration Of Conformity

    CV-M536/538/539 DECLARATION OF CONFORMITY AS DEFINED BY THE COUNCIL DIRECTIVE 89/336/EEC EMC (ELECTROMAGNETIC COMPATIBILITY) WE HEREWITH DECLARE THAT THIS PRODUCT COMPLIES WITH THE FOLLOWING PROVISIONS APPLYING TO IT. EN-50081-1 EN-50082-1...

  • Page 3: Table Of Contents

    9.1. CCU ... 20 9.2. HEAD ... 20 10. Specifications ... 21 10.1. Spectral Sensitivity ... 21 11. Appendix ... 22 11.1. Precautions ... 22 11.2. Typical CCD Characteristics ... 22 12. User’s Record ... 23 CV-M536/538/539 - 2 -...

  • Page 4: General

    High speed shutter and asynchronous random trigger functions allow a superb image quality in machine vision and image processing applications such as dynamic motion image capturing, on-line inspection, gauging, printing and graphics. CV-M536 series offers 3-type of model with different cable length, as described in the following list. Model CV-M536 2.0m (6.45 feet)

  • Page 5: Main Features

    CV-M536/538/539 3. Main Features • Miniature-sized remote head - ø17mm (0.67") • 1/2" Hyper HAD interline transfer CCD imager, 768(H) x 494(V) for EIA and 752(H) x 582(V) for CCIR • High resolution - horizontal 570 TV lines for EIA, 560 TV lines for CCIR •...

  • Page 6: Locations And Functions

    4. Locations and Functions 4-1. CCU 4-2. HEAD a) CV-M536 b) CV-M538/539 12P connector (For Camera Head) 2 Video output connector (BNC connector) 3 SW1 switch 4 6-pin Multi connector 5 GAIN 6 12P Multi connector 7 Screw holes for Tripod mount plate : To fix tripod mount plate (optional) on camera...

  • Page 7: Pin Assignment

    See “7.3. Jumper Settings” for more information. *2) In Edge Pre-select and Pulse Width Control mode do not input ext. VD signal. 5.2. 6-pin Multi-connector (TRIGGER) Type: HR10A-7R-6PB (Hirose) male Seen from rear. CV-M536/538/539 EEN output Ext. Trig input WEN output * Notes: The functions available on the 6-pin multi-connector are not effective in long time exposure mode.

  • Page 8: Functions And Operations

    The shutter time setting is shown in “7.1.3. Table for Shutter Time”. 6.3. External Trigger Mode External trigger mode of CV-M536/538/539 allows 4 different driving modes, as follow. Edge pre-select mode. (Asynchronous reset and exposure start by an ext. trigger) 2 Pulse width control mode.
  • Page 9 1H more EXT HD INT HD INT VD 1.5H Exposure time 12.5H 0.5H 10.5H CCD out Video out CV-M536/538/539 Effective pixels No.10 to 251 242H Blanking Effective video - 8 - EIA : 1H = 63.5µs TRIG in 1.5H Exposure time 0.5H...

  • Page 10: Pulse Width Control Mode

    75 Ohm termination is done with SW2-1 (HD) and SW2-2 (ext.trigger) on PK8057 board. Refer to Timing Chart and Cautions on next page. Detailed switch and jumper setting is described in “7. Mode Setting”. For connections see “5. Pin Assignment”. CV-M536/538/539 16.5H 7.5H Effective pixels No.10 to 251...
  • Page 11 TRIG 1H more EXT HD INT HD INT VD 1.5H 7.5H Exposure time 16.5H 0.5H CCD out Video out CV-M536/538/539 Effective pixels No.10 to 251 242H Blanking Effective video 7.5H Effective pixels No.10 to 251 287H Blanking Effective video - 10 - EIA : 1H = 63.5µs...

  • Page 12: Start/Stop Trigger Mode

    HD/VD 75 Ohm termination is done with SW2-1 and SW2-2 on PK8057 board. Refer to Timing Chart and Cautions on next page. Detailed switch and jumper setting is described in “7. Mode Setting”. For connections see “5. Pin Assignment”. CV-M536/538/539 - 11 -...
  • Page 13 - Non-interlaced: 1 external trigger pulse per field a) Interlaced mode (Frame accumulation mode) b) 2:1 Interlaced mode (Field accumulation mode) Ext.Trg. Ext. VD Exposure time Video c) Non-interlace moded (Field accumulation mode) Ext.Trg. Ext. VD Exposure time Video CV-M536/538/539 - 12 -...

  • Page 14: Long Time Exposure Mode

    Refer to Timing Chart and Cautions on next page. Detailed switch and jumper setting is described in “7. Mode Setting”. For connections see 5. “Pin Assignment”. CV-M536/538/539 VD pulse from the external HD/VD supply to the 1 V or more 2 V or integral number of 2V 1 V = 262.5 H...
  • Page 15 4. Timing of ext. VD signal in each accumulation mode has to be set, as described before. a) 2:1 Interlaced mode (Field accumulation mode) b) 2:1 Interlaced mode (Frame accumulation mode) c) Non interlaced mode (Field accumulation mode) CV-M536/538/539 - 14 -...

  • Page 16: Table For Shutter Time

    7.1.2. Table for SW 1 Setting 7.1.3. Table for Shutter Time Caution on Shutter. The image can flicker when the illumination is AC powered. Highlighted parts of the image will show increasing smear at a shorter shutter time. CV-M536/538/539 - 15 -...

  • Page 17: Ext. Trigger Shutter Mode

    CV-M536/538/539 7.1.4. Ext. Trigger Shutter Mode When trigger select SW1-4 is ON. The camera is in ext. trigger shutter mode. The SW1-1, SW1-2 and SW1- 3 are for selecting the shutter speed. The range is from OFF to 1/10,000 second in 8 steps. For each external trigger pulse, the camera will make an exposure with the selected shutter speed.

  • Page 18: Jumper Settings

    “7.4.1. Board PK8057 Side A”. Pixel clock pulse will be output from pin no.9 of 12-pin multi-connector. Caution for Pixel Clock Output. When the pixel clock is enabled, it may cause interference with external equipment if it not properly shielded. CV-M536/538/539 - 17 -...

  • Page 19: Location Of Sw2 And Jumpers

    CV-M536/538/539 7.4. Location of SW2 and Jumpers Jumpers are shorted with a 0 Ohm resistor or by a soldering between the 2 points. To remove the solder tin from a jumper position, use a special tin remover such as de-soldering wick.

  • Page 20: Adjustment Of Video Signal Output Level

    CV-M536/538/539 8. Adjustment of Video Signal Output Level When an alignment of a video output signal is required, remove the camera housing and adjust potentiometers VR3, VR4 and VR5 on the PK8056 board while measuring their levels at the video output connector.

  • Page 21: External Appearance

    9. External Appearance 9.1 CCU 9.2 HEAD a) CV-M536 b) CV-M538/539 CV-M536/538/539 - 20 - Unit : mm (inches)

  • Page 22: Specifications

    Factory setting: HD/VD input. Inputs TTL or 75 Ohm terminated by internal jumpers. Factory setting: 75 Ohm terminated. Note: Above specifications are subject to change without notice. 10.1. Spectral Sensitivity CV-M536/538/539 CCIR 625 lines 25 frames/sec. Monochrome 1/2" Hyper HAD IT CCD...

  • Page 23: Appendix

    Patterned Noise Patterned Noise When the CCD camera captures a dark object at high temperature or is used for long time integration, fixed pattern noise (shown as white dots) may appear on the video monitor screen. CV-M536/538/539 - 22 -...

  • Page 24: User's Record

    Phone +81 45 933 5400 www.jai.com Fax +81 45 931 6142 www.jai-corp.co.jp CV-M536/538/539 EIA/CCIR (Revision E) JAI America, Inc., USA Suite 450 23046 Avenida de la Carlota Laguna Hills, CA 92653 Phone +1 949 472 5900 Fax +1 949 472 5908 www.jai.com...
