- Page 1 24V DC - 1/2” SQUARE DRIVE IMPACT WRENCH KIT Model No: CIR24B Part No 4500622 OPERATING & MAINTENANCE INSTRUCTIONS GC01/12...
-
Page 2: Specifications
Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 3: Component Inventory

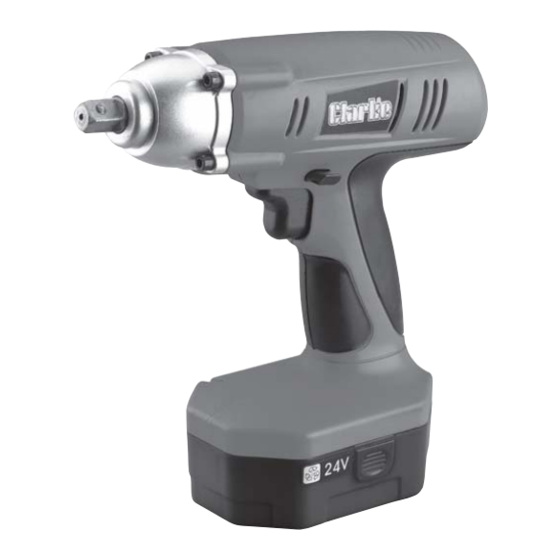

COMPONENT INVENTORY The CIR24B is a heavy-duty, cordless impact wrench which is rechargeable using the mains power adaptor. Upon receipt, check the components against the following list. Any damage or deficiency should be reported to your CLARKE dealer immediately. 1 x 24V Impact Wrench... -
Page 4: Safety Precautions
SAFETY PRECAUTIONS WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair out of the way. 3. Keep children and visitors away - do not let children handle the wrench. 4. - Page 5 20. NEVER attempt to wipe the machine clean with solvents. Wipe plastic parts with a soft cloth, slightly dampened with soapy water. 21. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. IMPACT WRENCH SAFETY INSTRUCTIONS ALWAYS use the impact wrench in the manner and for the functions described in these instructions.
-
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING! Read these electrical safety instructions thoroughly before connecting the product to the mains supply. Before switching the product on, make sure that the voltage of your electric- ity supply is the same as that indicated on the rating plate. This product is designed to operate on 230VAC 50Hz. -
Page 7: Battery Charging
Minimum 4°C /Maximum 50°C. Avoid placing batteries in direct strong sunlight or other heat source. NOTE: Ni-Cad batteries as used in Clarke cordless power tools should be given a full charge when first supplied new. Maximum battery performance will be achieved after approximately 5 complete charge/discharge cycles. -
Page 8: Operation
OPERATION CAUTION: ALWAYS BE SURE THAT THE TOOL IS SWITCHED OFF BEFORE ATTACHING OR REMOVING A SOCKET. ALWAYS TAKE CARE TO USE THE CORRECT SIZE SOCKET FOR BOLTS AND NUTS. AN INCORRECT SOCKET WILL CAUSE DAMAGE TO THE BOLT OR NUT. 1. -
Page 9: Tightening A Nut
• Refer to your CLARKE dealer if internal maintenance is required. • Check the battery charger power cable to ensure it is free from cracks, bare wires etc. -
Page 10: Environmental Protection
Keep the unit clean by wiping with a dry cloth. DO NOT use solvents as a cleaning agent. Your Clarke Impact Wrench has been designed to give long and trouble free service. If, however, having followed the instructions in this booklet carefully, you encounter problems, take the unit to your local Clarke dealer. -
Page 11: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
