  • Page 1 12V DC IMPACT WRENCH MODEL NO: CIR13C PART NO: 4500610 OPERATING & MAINTENANCE INSTRUCTIONS ORIGINAL INSTRUCTIONS GC0518 ISS 2...

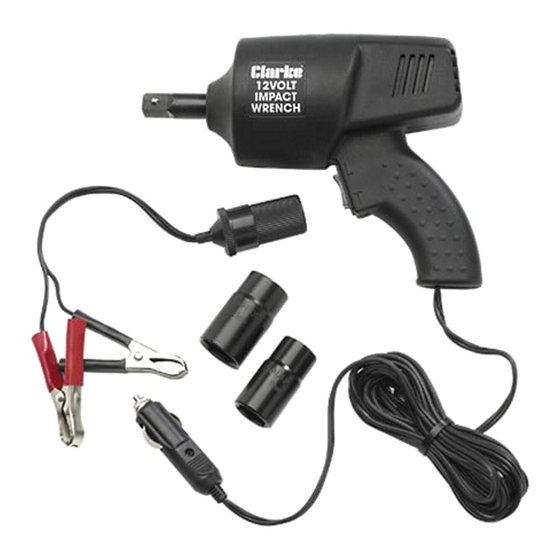

  • Page 2 INTRODUCTION Thank you for purchasing this CLARKE Impact Wrench. The CIR13C must only be used with 12V vehicle systems This product includes the following items: • Impact Wrench c/w Cigarette Lighter Adapter • Battery Clamp set c/w Cigarette Lighter Socket •...
  • Page 3: General Power Tool Safety Warnings

    GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your impact wrench WORK AREA SAFETY 1.
  • Page 4: Personal Safety

    PERSONAL SAFETY 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury.
  • Page 5: Impact Wrench Safety Warnings

    4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation.
  • Page 6: Connecting To The Vehicle Power Supply

    CONNECTING TO THE VEHICLE POWER SUPPLY Only use this wrench with 12 Volt vehicle systems. CONNECTING TO THE CIGARETTE LIGHTER SOCKET CAUTION: IF THE VEHICLE’S CIGARETTE LIGHTER FUSE IS LESS THAN 15 AMPS, YOU MUST CONNECT THE IMPACT WRENCH DIRECTLY TO THE BATTERY.
  • Page 7: Operation

    OPERATION CAUTION: MAKE SURE THAT THE IMPACT WRENCH IS OFF AND DISCONNECTED FROM THE POWER SUPPLY BEFORE ATTACHING OR REMOVING A SOCKET. ALWAYS TAKE CARE TO USE THE CORRECT SIZE SOCKET FOR BOLTS AND NUTS. AN INCORRECT SOCKET WILL CAUSE DAMAGE TO THE BOLT OR NUT.
  • Page 8: General Maintenance

    GENERAL MAINTENANCE 1. Make sure that all nuts, bolts and screws are tight. 2. Refer to your CLARKE dealer if internal maintenance is necessary. 3. Make sure that the power cable is free from cracks, bare wires etc. 4. If it is necessary to replace the power cable, this must be done by the manufacturer.
  • Page 9 ACCESSORIES A wide range of impact wrench accessories is available from your nearest Clarke dealer. For further information contact your nearest dealer. Suitable impact wrench compatible socket sets include the following: Part No Model No Description 3110437 CIS12/11 11 piece 1/2”square drive (metric)
  • Page 10: Specifications

    SPECIFICATIONS Weight 1.8 kg Dimensions (L x W x H) 210 x 85 x 165 mm Size of square drive spindle 1/2” Max rated tightening torque 250 ft/lbs (350 Nm) Impacts / minute 4000 IP Rating IP20 Insulation class Input voltage 12V DC Charger fuse rating 15 Amp...
  • Page 11: Declaration Of Conformity

    DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
