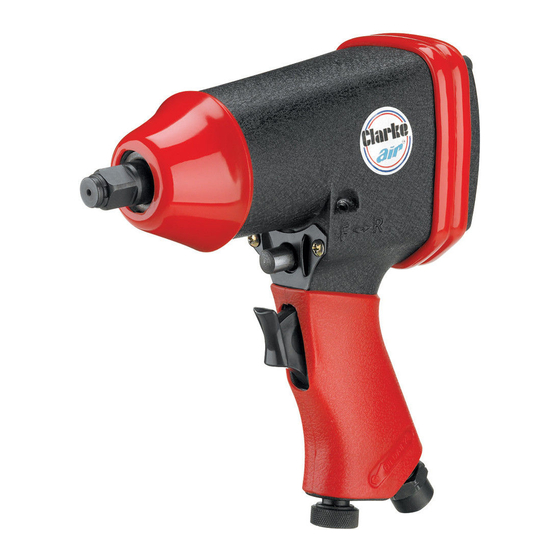

  • Page 1 1/2” IMPACT WRENCH 1/2” IMPACT WRENCH MODEL No: CAT110 Part No: 3120120 OPERATION & MAINTENANCE INSTRUCTIONS LS0309...
  • Page 2: Specifications

    Always consult the machine’s data plate GUARANTEE This CLARKE product is guaranteed against faulty manufacture for a period of 12 months from the date of purchase. Please keep your receipt as proof of purchase. This guarantee is invalid if the product is found to have been abused or tampered with in any way, or not used for the purpose for which it was intended.
  • Page 3: Safety Precautions

    SAFETY PRECAUTIONS IMPORTANT FAILURE TO FOLLOW THESE PRECAUTIONS COULD RESULT IN PERSONAL INJURY, AND/OR DAMAGE TO PROPERTY. WORK ENVIRONMENT • Keep the work area clean and tidy. • Dress appropriately - Do not wear loose clothing or jewellery. Tie long hair out of the way.
  • Page 4 SAFETY PRECAUTIONS • Always disconnect from the air supply when: Performing any maintenance The impact wrench is not in use. The impact wrench will be left unattended. Moving to another work area. Passing the impact wrench to another person. • Never use the impact wrench if it is defective or operating abnormally.
  • Page 5: Air Supply

    PARTS Anvil Direction Selector Trigger Air Inlet Air Regulator AIR SUPPLY WARNING! COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source for the impact wrench.
  • Page 6: Recommended Air Supply Connection

    Your impact wrench is now ready for use. You can fit a whip hose with a quick fit coupling if required (available from your Clarke dealer.) WARNING! COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND...
  • Page 7: Fitting The Impact Socket

    OPERATING INSTRUCTIONS WARNING! WAIT UNTIL THE ANVIL HAS STOPPED ROTATING BEFORE OPERATING THE DIRECTION CONTROL SWITCH. USING THE DIRECTIONAL CONTROL BUTTON The direction control button should be used as follows. For normal tightening, the impact wrench should be operated in the forward (F) direction.
  • Page 8: Adjusting The Power

    OPERATING INSTRUCTIONS ADJUSTING THE POWER To adjust the power, set the air regulator to one of the 4 settings available. 1 (Low) - 4 (High). Air Regulator OPERATING THE IMPACT WRENCH Locate the socket over the nut to be tightened or loosened.
  • Page 9: Maintenance

    Drain water from air tank, air line and compressor. • Pour a few drops of CLARKE Air Line Oil, into the air inlet. This should be carried out regardless of whether or not an air line lubricator is used. If an Air line lubricator is not used, this procedure should be repeated after every two to three hours of use.
  • Page 10: Parts List And Diagram

    PARTS LIST AND DIAGRAM t l o l i v l i v l i v l l a t e l t e l t a l t l o t l o...
  • Page 11: Declaration Of Conformity

    DECLARATION OF CONFORMITY...
