Clarke CIR24 Operating & Maintenance Instructions

Clarke CIR24 Operating & Maintenance Instructions

24v dc - 1/2” square drive impact wrench kit

Advertisement

24V DC - 1/2" SQUARE DRIVE
IMPACT WRENCH KIT

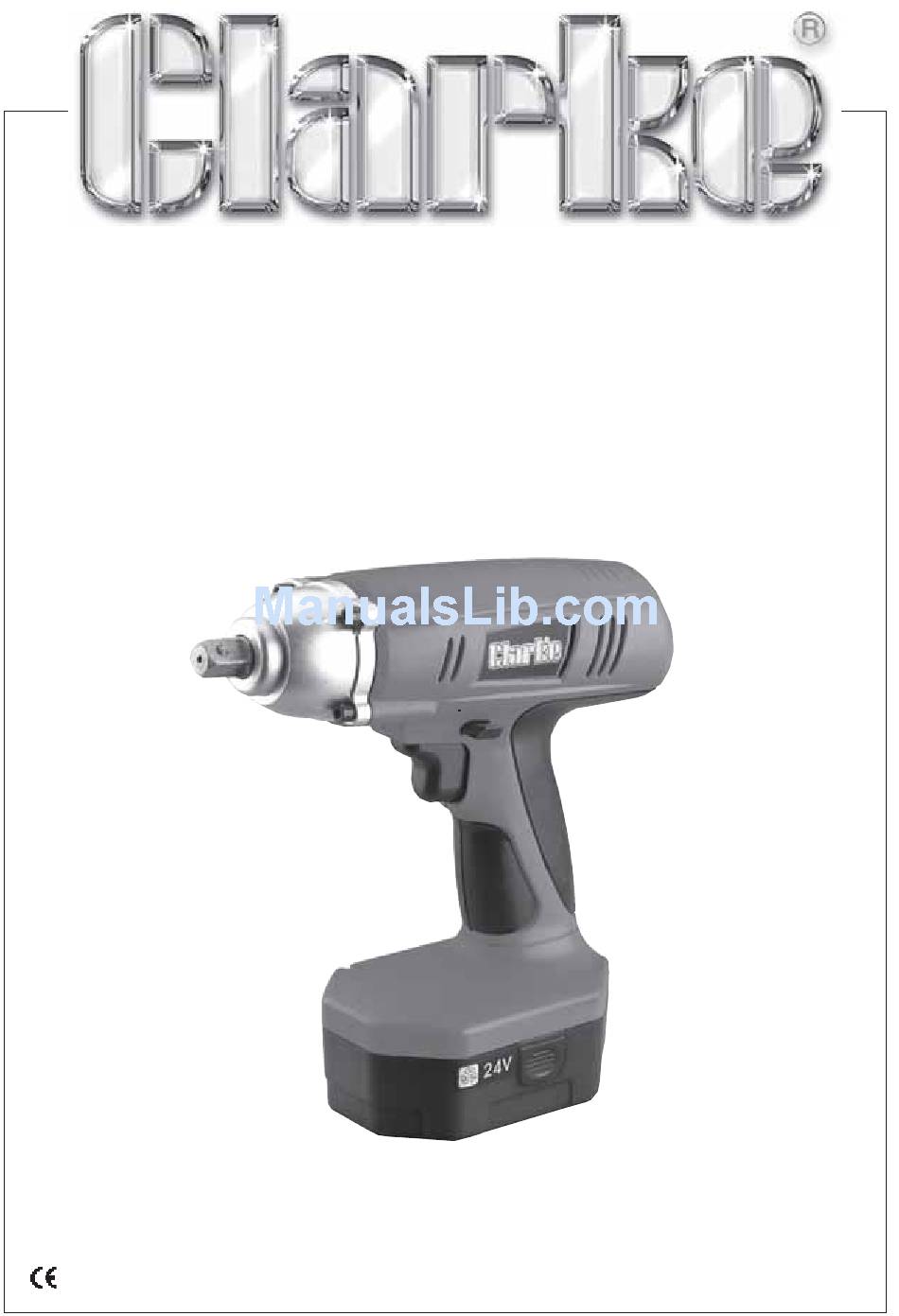

MODEL No. CIR24
Part No. 4500620
OPERATING & MAINTENANCE
INSTRUCTIONS
1006

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the CIR24 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for Clarke CIR24

  • Page 1 24V DC - 1/2” SQUARE DRIVE IMPACT WRENCH KIT MODEL No. CIR24 Part No. 4500620 OPERATING & MAINTENANCE INSTRUCTIONS 1006...
  • Page 2 Thank you for purchasing this CLARKE 24 volt DC, 1/2” Square Drive Impact Wrench. Please read this leaflet thoroughly and follow the instructions carefully, in doing so you will ensure the safety of yourself and that of others around you, and you can look forward to the tool giving you long and satisfactory service.
  • Page 3 GENERAL SAFETY PRECAUTIONS WARNING: PLEASE READ ALL INSTRUCTIONS CAREFULLY BEFORE OPERATING As with all machinery, there are certain hazards involved with their operation and use. Exercising respect and caution will considerably lessen the risk of personal injury. However, if normal safety precautions are overlooked or ignored, personal injury to the operator or damage to property, may result.
  • Page 4 ELECTRICAL CONNECTIONS The Charger is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing at any time, ensure that a plug of identical specification is used. WARNING ! THIS APPLIANCE IS DOUBLE INSULATED This machine must be wired up in accordance with the following colour code: BLUE...
  • Page 5 • Keep the tool clean using a soft damp (not wet) cloth. Do not use solvents on the plastic parts. • Lubrication is not necessary. After long use, have an authorised dealer, or Clarke International maintain and lubricate the tool.
  • Page 6 OPERATING INSTRUCTIONS REMEMBER: Do not attempt to use your Impact Wrench until the battery is fully charged and you have read all the instructions. REMEMBER: This cordless wrench is always in an operating condition and does not need to be connected to a power supply. CAUTION: •...
  • Page 7 SPARE PARTS No. Description Part No. No. Description Part No. Gear Cover HTCIR2401 12 Column Pin HTCIR2412 02 Hermetic Ring HTCIR2402 13 Shaft Bushing HTCIR2413 03 Drive Shaft Sheath HTCIR2403 14 Inner Gear HTCIR2414 04 Shaft Washer HTCIR2404 15 Gear Box HTCIR2415 05 Square Drive Shaft HTCIR2405...
