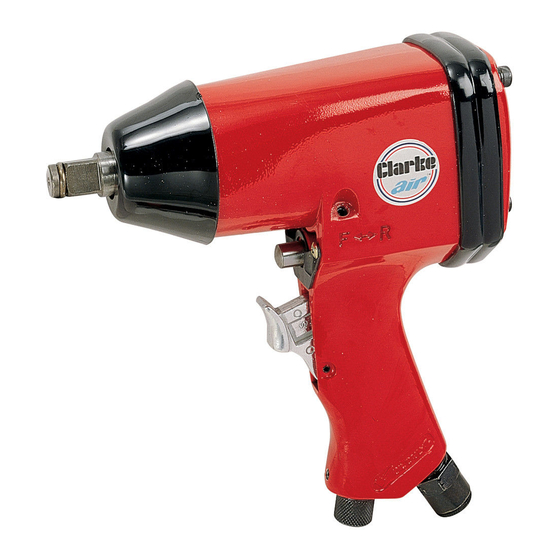

- Page 1 1/2” IMPACT WRENCH Model Nos: CAT23C, CAT92, CAT96 & CAT231B Part Nos: 3110402, 3110848 & 3110852 & 3110425 OPERATING & MAINTENANCE INSTRUCTIONS GC07/13...
-
Page 2: Technical Specifications
" 8 Please note that the details and specifications contained herein, are correct at the time of going to print. However, CLARKE International reserve the right to change specifications at any time without prior notice. Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 3: Safety Precautions
SAFETY PRECAUTIONS WORK ENVIRONMENT 1. Keep the work area clean and tidy. 2. Dress appropriately - do not wear loose clothing or jewellery. Tie long hair out of the way. 3. Keep children and visitors away - do not let children handle the wrench. Make sure that any other persons in the work area are suitably dressed and are wearing eye and ear protection. - Page 4 Any damaged part should be properly repaired. 16. NEVER attempt any repairs yourself. If you have a problem with this product contact your local CLARKE dealer. 17. This product vibrates during use. Vibration may be harmful to your hands or arms.
- Page 5 Speed Control Regulator Airline Connection with filter Lubrication Port The CAT96 and CAT231B Impact Wrench Kit contains the same impact wrench, but is supplied with the following accessories. 1/2”square drive extension. 1/2” square drive sockets of the following sizes: -9mm,10mm,11mm, 13mm, 14mm,17mm,19mm, 22mm, 24mm &...
-
Page 6: Air Supply Requirements
AIR SUPPLY REQUIREMENTS WARNING: COMPRESSED AIR CAN BE DANGEROUS. ENSURE THAT YOU ARE THOROUGHLY FAMILIAR WITH ALL PRECAUTIONS RELATING TO THE USE OF COMPRESSORS AND COMPRESSED AIR SUPPLY. • Use only clean, dry, regulated compressed air as a power source. •... -
Page 7: Before Use
1. Remove the plastic blanking plug from the connection port of the tool. 2. Pour 2-3 drops of CLARKE airline oil into the air inlet. This should be done regardless of whether or not a lubricated air supply is to be used. -
Page 8: Loosening A Wheel Nut
was set. The tool is now set to duplicate that tightness. For future use, note that specific setting. 6. When critical torque values are not required, turn nut or bolt until it fits snugly, and then turn a further one quarter to one half a turn - slightly more if gaskets are used between surfaces. -
Page 9: Disconnecting The Air Supply
3. For lubricating the air motor, an air line lubricator should be used, containing Clarke Air Line Oil, adjusted to 2 drops per minute. If this is not possible, run a few drops of oil through the tool. It may be entered into the tool air inlet, (ensuring the strainer is clear), or into the hose at the nearest connection to the air supply. -
Page 10: Service And Repairs
2. If the tool is not to be used for longer than 24 hours, run a few drops of CLARKE airline oil into the air inlet and run the tool for a few seconds to ensure that the oil has been well distributed throughout the tool. -
Page 11: Troubleshooting
TROUBLESHOOTING s t r l n i . s t . y l s t r l n i l i f n i l & t r i . t s t i s t i s f r i . -
Page 12: Parts List
) " l i v The above parts list apply equally to the CAT23C, CAT92, CAT96 and CAT231B. The only difference is that the external parts of the CAT92/CAT96 are highly pollished and include rubber grips. Should these parts be required, please contact your nearest Clarke dealer, while referring to the parts list above. -
Page 13: Parts Diagram
PARTS DIAGRAM Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... -
Page 14: Vibration Emissions
‘a’, to which the tool could vibrate under normal conditions. These values appear in the specification panel below. MODEL Nos: CAT23C, CAT92, CAT96 & CAT231B DESCRIPTION: 1/2” IMPACT WRENCH Declared vibration emission value in accordance with EN12096 Measured vibration emission value - a: 10.4m/s... - Page 15 You will note that a third value is given in the specification - the highest measured reading in a single plane. This is the maximum level of vibration measured during testing in one of the axes, and this should also be taken into account when making a risk assessment.
-
Page 16: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com... - Page 17 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 18 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
- Page 19 DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400/E-mail:Parts@clarkeinternational.com or Service@clarkeinternational.com...
