Summary of Contents for Clarke CEW1100

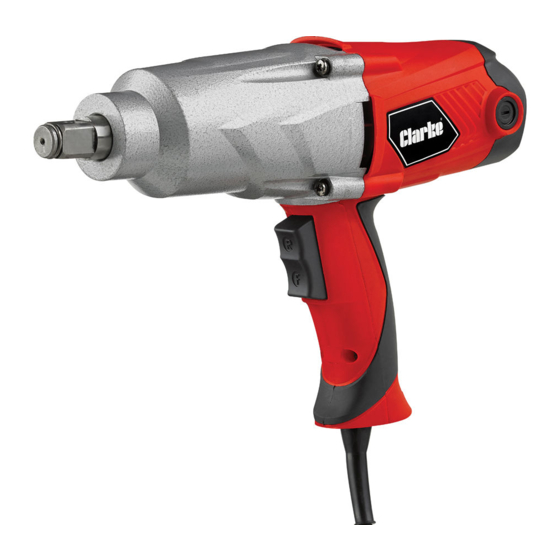

- Page 1 ELECTRIC IMPACT WRENCH MODEL NO: CEW1100 PART NO: 6480320 OPERATION & MAINTENANCE INSTRUCTIONS LS0718 - ISS 2 ORIGINAL INSTRUCTIONS...
- Page 2 INTRODUCTION Thank you for selecting this Clarke impact wrench. The impact wrench is intended for tightening and loosening nuts, and is equipped with a rotary impact mechanism. IMPORTANT Read all instructions carefully before you use this impact wrench. Pay attention to all sections of this user guide that display warning symbols and notices.
-
Page 3: General Power Tool Safety Warnings
GENERAL POWER TOOL SAFETY WARNINGS WARNING: READ ALL SAFETY WARNINGS AND ALL INSTRUCTIONS. FAILURE TO FOLLOW THE WARNINGS AND INSTRUCTIONS MAY RESULT IN ELECTRIC SHOCK, FIRE AND/OR SERIOUS INJURY. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated impact wrench WORK AREA SAFETY 1. -
Page 4: Personal Safety
PERSONAL SAFETY 1. Stay alert, watch what you are doing and use common sense when operating a power tool. Do not use a power tool while you are tired or under the influence of drugs, alcohol or medication. A moment of inattention while operating power tools may result in serious personal injury. -
Page 5: Safety Symbols
4. Store idle power tools out of the reach of children and do not allow persons unfamiliar with the power tool or these instructions to operate the power tool. Power tools are dangerous in the hands of untrained users. 5. Maintain power tools. Check for misalignment or binding of moving parts, breakage of parts and any other condition that may affect the power tool's operation. -
Page 6: Electrical Connections
ELECTRICAL CONNECTIONS WARNING: READ THESE ELECTRICAL SAFETY INSTRUCTIONS FULLY BEFORE CONNECTING THE IMPACT WRENCH TO THE MAINS SUPPLY. This impact wrench is provided with a standard 13 amp, 230 volt (50Hz), BS 1363 plug, for connection to a standard, domestic electrical supply. Should the plug need changing, make sure that a plug of identical specification is used. - Page 7 OVERVIEW 3/4” Square Drive Carbon Brush Holder Covers Body Case Direction Switch / Trigger Sockets (24, 30, 32 & 36 mm) Mains Cable ONLY SPECIAL SOCKETS THAT ARE DESIGNED FOR IMPACT TOOLS SHOULD BE USED WITH THIS IMPACT WRENCH. STANDARD SOCKETS MAY SHATTER. Parts &...
-
Page 8: Attach / Remove A Socket
OPERATING INSTRUCTIONS WARNING: ALWAYS MAKE SURE THAT THE IMPACT WRENCH IS DISCONNECTED FROM THE POWER SUPPLY BEFORE CHANGING THE SOCKET. WARNING: WHEN CHANGING DIRECTION ALWAYS MAKE SURE THAT THE IMPACT WRENCH HAS STOPPED BEFORE SWITCHING TO THE OTHER DIRECTION. ATTACH / REMOVE A SOCKET 1. -
Page 9: Maintenance And Servicing
GENERAL MAINTENANCE 1. Make sure that all nuts, bolts and screws are tight. 2. Refer to your CLARKE dealer if internal rnaintenance is necessary . 3. Make sure that the power cable is free from cracks, bare wires etc . -
Page 10: Replace The Carbon Brushes
• Both brushes must be replaced at the same time. • Only use brushes supplied by your Clarke dealer. 4. Replace the carbon brush holder covers. SPECIFICATIONS Item Item Specification... -
Page 11: Declaration Of Conformity
DECLARATION OF CONFORMITY Parts & Service: 020 8988 7400 / E-mail: Parts@clarkeinternational.com or Service@clarkeinternational.com...
