Single-Thread Installation - Comtech EF Data CSAT-5060 Installation And Operation Manual

C-Band Transceiver
CSAT-5060 100/125 Watt Installation
C.4.2

Single-Thread Installation

Step
1
2
3
4
5
6
7
8
9

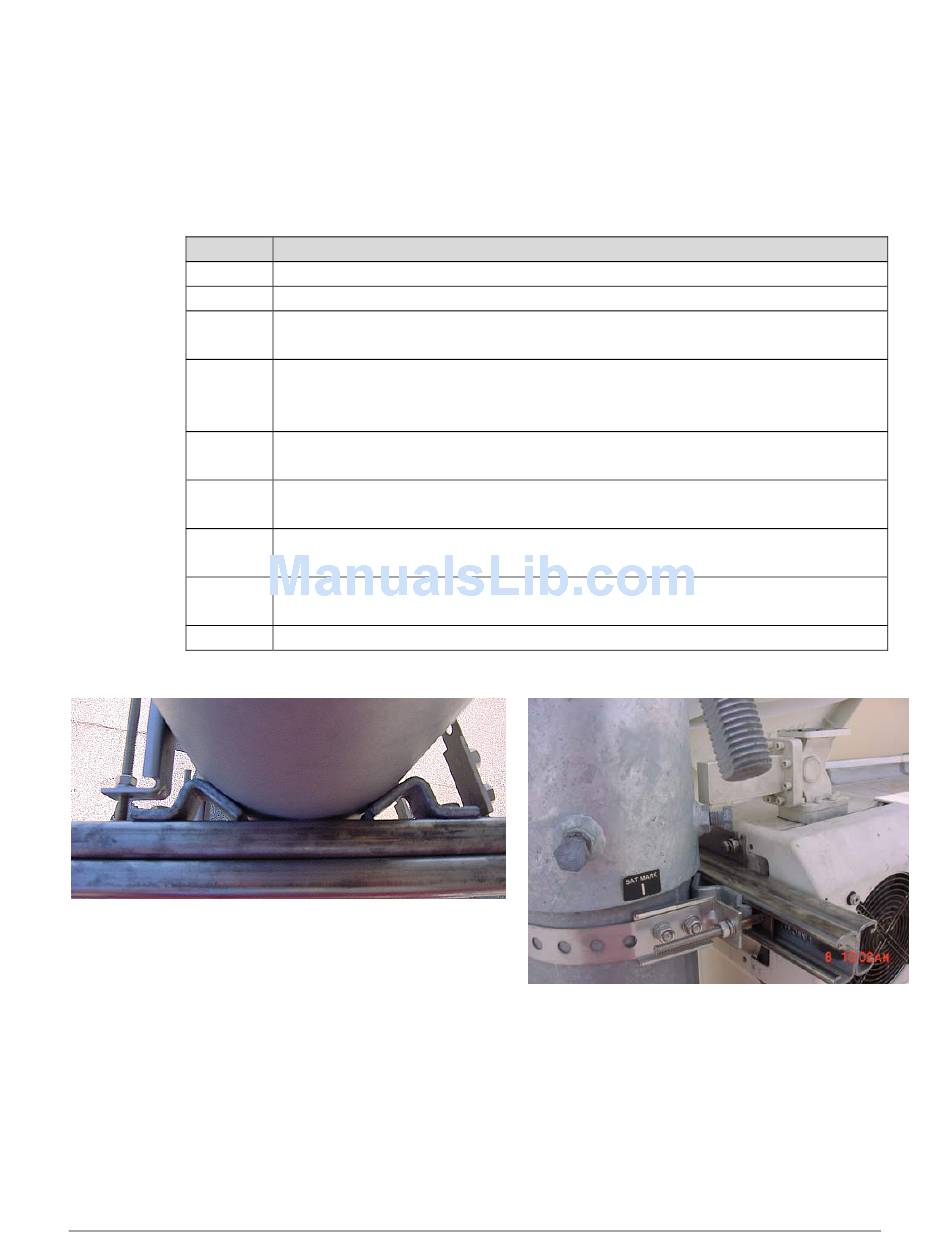

Figure C-3.
Procedures
Place Unistrut brackets (1, figure C-1) on a flat surface.
Slide two springnuts (9) into the each channel of the Unistrut brackets.
Fasten two pipe blocks (11) loosely to the springnuts using two bolts
(6), two flat washers (7), and two splitlock washers (8).
Position Unistrut brackets (1) with pipe blocks (11) against the
mounting pole, slide the pipe blocks (11) until they contact the
mounting pole. (See Figure C-3.)
Ensure the pipe blocks (11) are centered to the Unistrut brackets (1).
Tighten the hardware.
Attach bracket (5, figure C-1) to the strap (4) using two nuts (10), two
flat washers, (7), and two splitlock washers (8).
Place the assembly against the pole with the strap around the pole and
trim strap (4) to fit as shown in Figure C-4, using the tin snips.
Attach bracket (3, figure C-1) to the strap (4) using two nuts (10), two
flat washers (7), and two splitlock washers (8).
Slide tensioner bracket (2) into channel of the top Unistrut bracket (1).
Looking down
igure C-4. Installing the Pole Bracket
F
C–5
