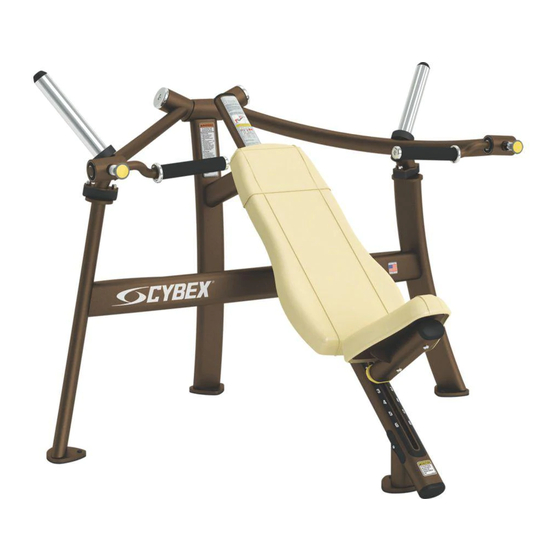

- Page 1 Cybex ® Plate Loaded Incline Press Owner’s and Service Manual Strength Systems Part Number 16190-999-4 www.cybexinternational.com...
- Page 3 Cybex logo are registered trademarks of Cybex International, Inc. DISCLAIMER: Cybex International, Inc., makes no representations or warranties regarding the contents of this manual. We reserve the right to revise this document at any time or to make changes to the product described within it without notice or obligation to notify any person of such revisions or changes.
-
Page 5: Table Of Contents
Table of Contents 1 Safety Safety......1 Safety Guidelines and Practices ..2 Warning/Caution Decals . -
Page 7: Safety
• Securely anchor machine to the fl oor using the anchor holes provided in each machine. NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor. NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better). -
Page 8: Safety Guidelines And Practices
SECURING EQUIPMENT: The machine has holes in the feet, which allow for ease in anchoring to the fl oor. Cybex strongly recommends that, to eliminate rocking, tipping or falling over due to incorrect usage and misuse, equipment be secured to a solid, level surface. -
Page 9: Warning/Caution Decals
Cybex Plate Loaded 16190 Incline Press Owner’s Manual Warning/Caution Decals Warning decals indicate a potentially hazardous situation, which, if not avoided, could result in death or serious injury. Caution decals indicate a potentially hazardous situation, which, if not avoided, could result in minor or moderate injury. -
Page 10: Regular Maintenance Activities
Cybex Plate Loaded 16190 Incline Owner’s Manual Regular Maintenance Activities Preventative maintenance activities must be performed to maintain normal operation of this equipment. Keeping a log sheet of all maintenance actions will assist you in staying current with all preventative maintenance activities. -
Page 11: Customer Service
For Cybex customers living in the USA, contact Cybex Customer Service at 888-462-9239. For Cybex customers living outside the USA, contact Cybex Customer Service at 508-533-4300 or fax 508-533-5183. Find information on the web at www.cybexintl.com or e-mail at techhelp@cybexintl.com. -
Page 12: Return Material Authorization (Rma)
3. Provide the model and serial number of your Cybex equipment. 4. At Cybex’s discretion, the technician may request that you return the problem part(s) to Cybex for evaluation and repair or replacement. The technician will assign you a RMA number and will send you an ARS label. The ARS label and the RMA numbers must be clearly displayed on the outside of the package that contains the item(s) to be returned. -
Page 13: Assembly
4. Remove foot glides. NOTE: Plastic shipping foot glides are used on Cybex Strength Systems machines to protect the bottom of machines during transportation. These foot glides must be removed before a machine is first placed in service as the shipping foot glides may cause the machine to be unstable. -
Page 14: Maintenance
Securely anchor machine to the fl oor using the anchor holes provided in each machine. NOTE: Cybex is not responsible for the actual anchoring of equipment. Consult with a professional contractor. NOTE: Use fasteners having a minimum of 500 lbs. tensile capacity (3/8” grade 2 bolts or better). - Page 15 Cybex Plate Loaded 16190 Incline Press Owner’s Manual This Page Intentionally Left Blank Page 9...
- Page 16 Cybex Plate Loaded 16190 Incline Owner’s Manual his Page Intentionally Left Blank Page 10...
-
Page 17: Service
Cybex Plate Loaded 16190 Incline Press Owner’s Manual 6 - Service Please refer to the next page for parts lists and exploded-view diagrams NOTE: All inspections and repairs must be performed by trained service personnel only. Cybex will void warranty if non-Cybex replacement parts are used. - Page 18 Cybex Plate Loaded 16190 Incline Press Owner’s Manual Page 12...
-
Page 19: Exploded-View Diagram
Cybex Plate Loaded 16190 Incline Press Owner’s Manual Page 13... - Page 20 Cybex Plate Loaded 16190 Incline Press Owner’s Manual 16190 Incline Press Arm Assembly Right Arm Assembly Left Arm Assembly Page 14...
- Page 21 Cybex Plate Loaded 16190 Incline Press Owner’s Manual 16190 Incline Press Seat Assembly Page 15...
- Page 22 Cybex Plate Loaded 16190 Incline Press Owner’s Manual Page 16...
- Page 24 10 Trotter Drive Medway, MA 02053 • 508-533-4300 • FAX 508-533-5183 www.cybexinternational.com • techhelp@cybexintl.com...
